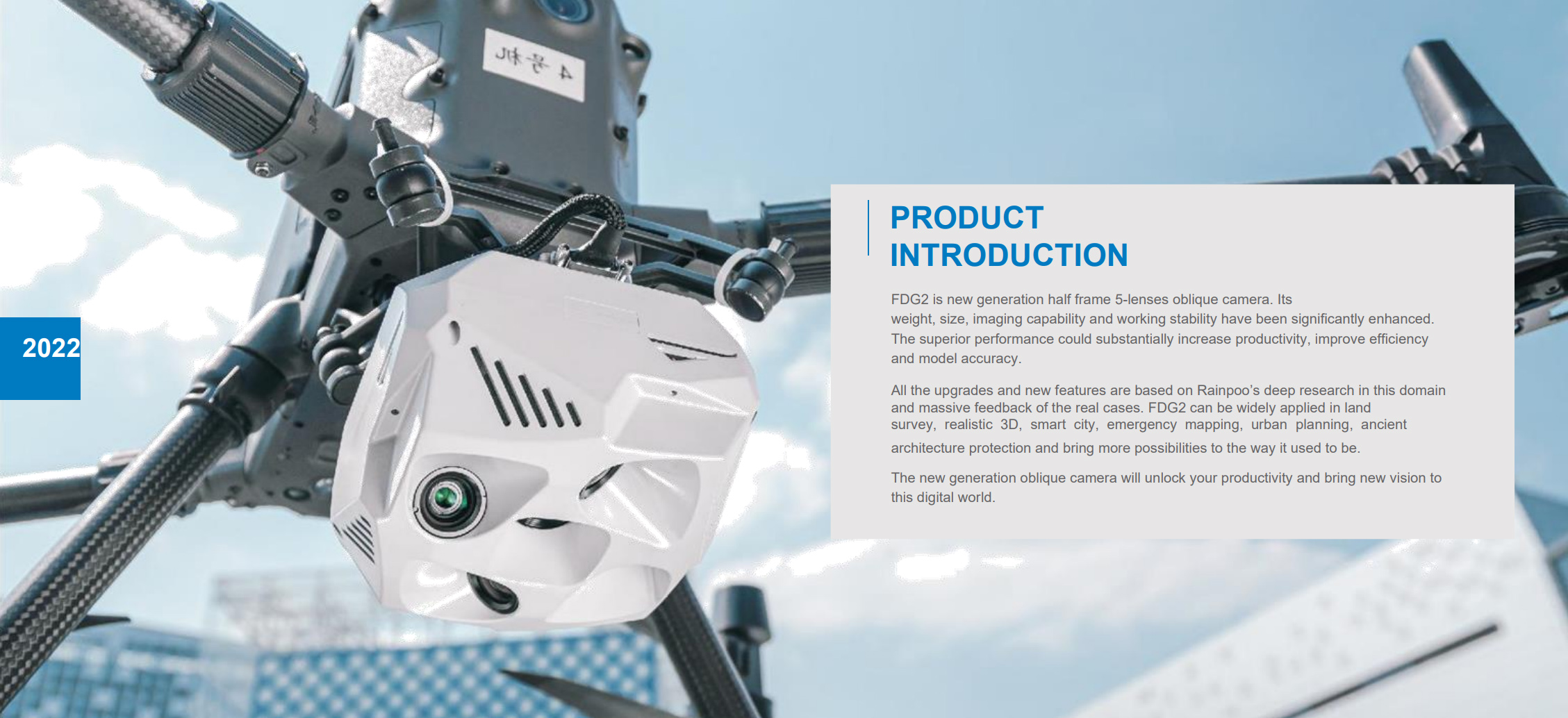

FDG2 half frame 5-lenses oblique camera. Its weight， size， imaging capability and working stabil ity have been significantly enhanced.The superior performance could substantially increas e productivity， improve efficiency and model accuracy. FDG2 can be widely applied inlandsurvey，realistic3D smartcity emergencymapping，urbanplanning，ancient architecture protection and bring more possibilitiesto the way it used to be. The new generation oblique camera will unlock yourproductivity and bring new vision tothis digital world.

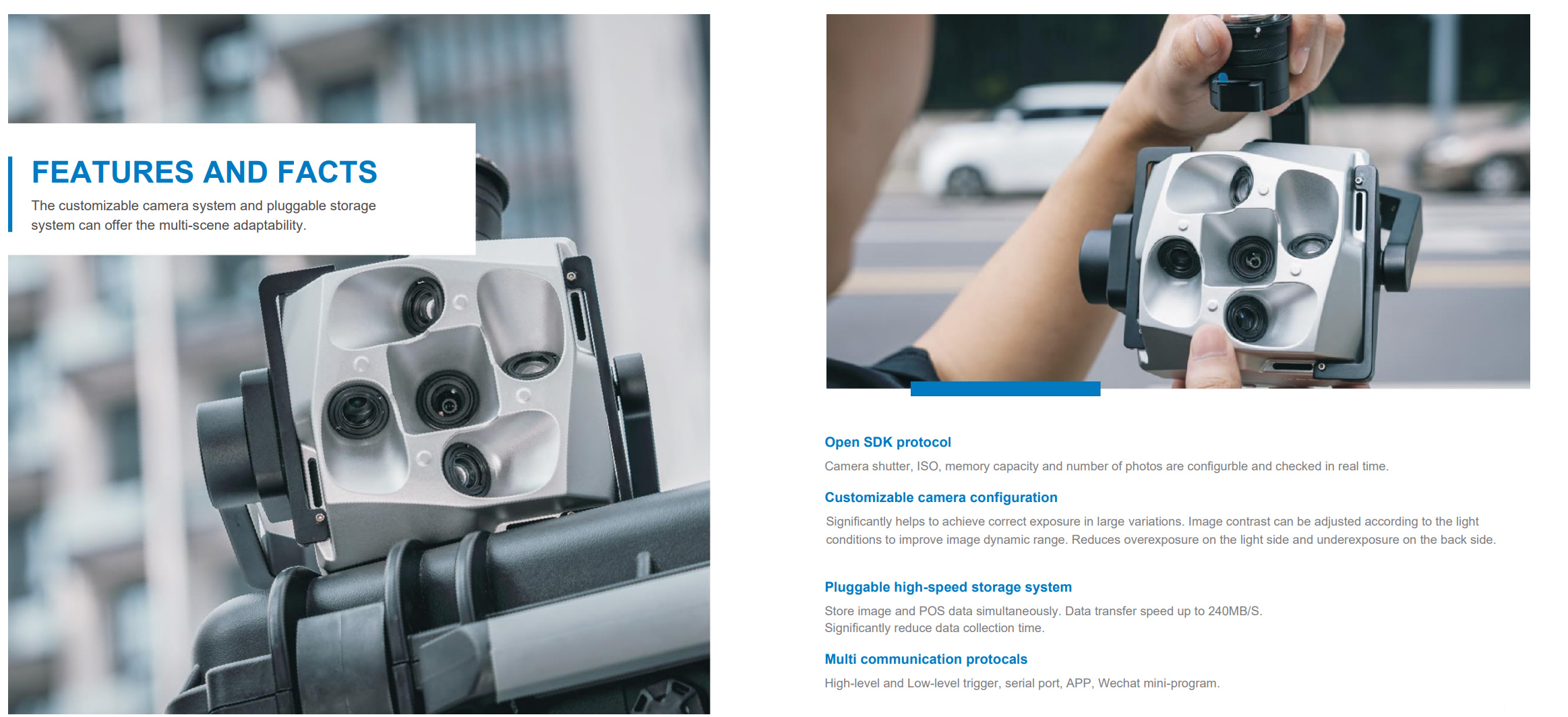

Advantage

Open SDK protocol
Camera shutter, ISO, memory capacity and number of photos are configurble and checked in real time.
Customizable camera configuration
Significantly helps to achieve correct exposure in large variations. Image contrast can be adjusted according to the light conditions to improve image dynamic range. Reduces overexposure on the light side and underexposure on the back side.
Pluggable high-speed storage system
Store image and POS data simultaneously. Data transfer speed up to 240MB/S.Significantly reduce data collection time.
Multi communication protocals
High-level and Low-level trigger, serial port, APP, Wechat mini-program.

Specifications:

Pixels：26MP

Total pixels：130MP

Weight：610g

Focallength：ortho25mm/oblique 35mm

CMOS：APS-C

Dimension：105mmx105mmx89mm

Min.exposure interval：0.5s

Shutter type：mechanical global shutter

Shutter service life：500K times

Storage capacity：640G*2

Data transfer speed：>300MB/s

Photo GPS：real-time GPS marking

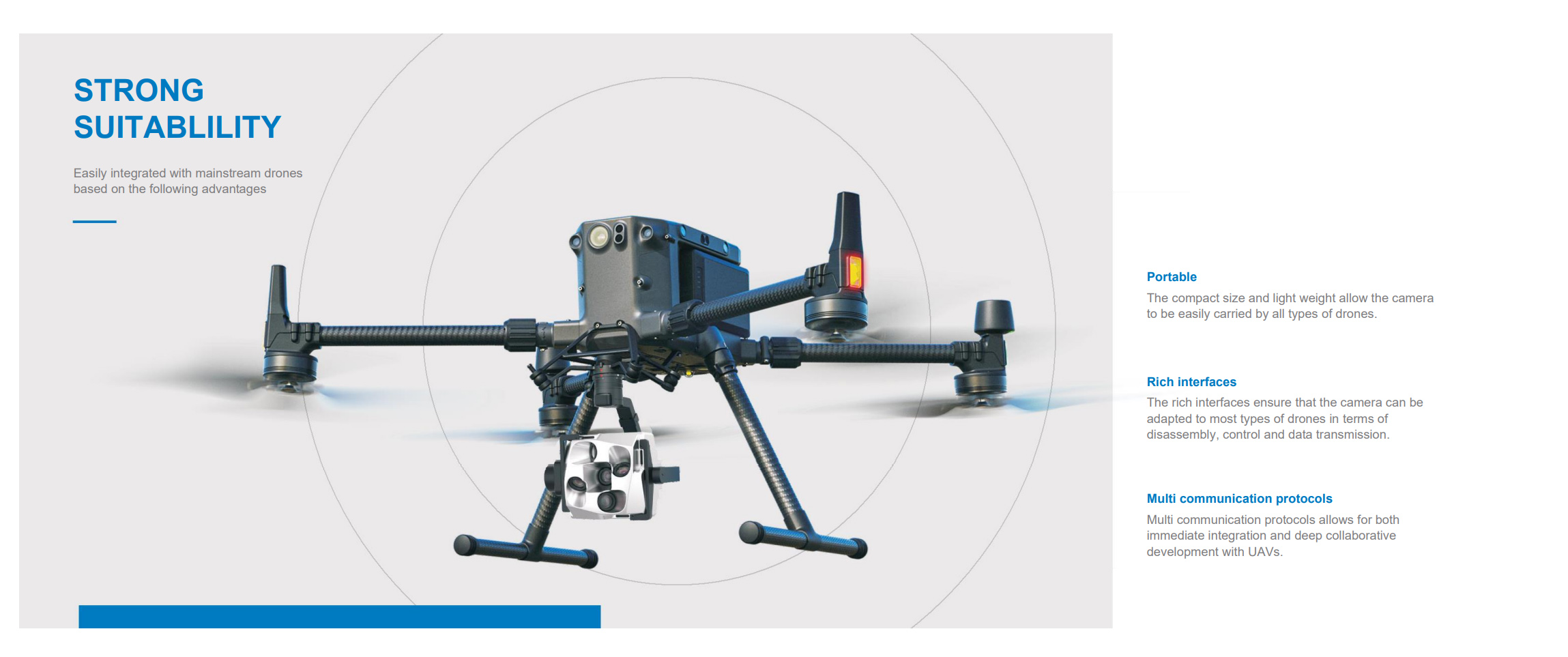

Application flying platforms：M 300 series and other mainstream UAVs

Powersupply：unified powersupply for drones

Operating temperature：-20℃—65℃

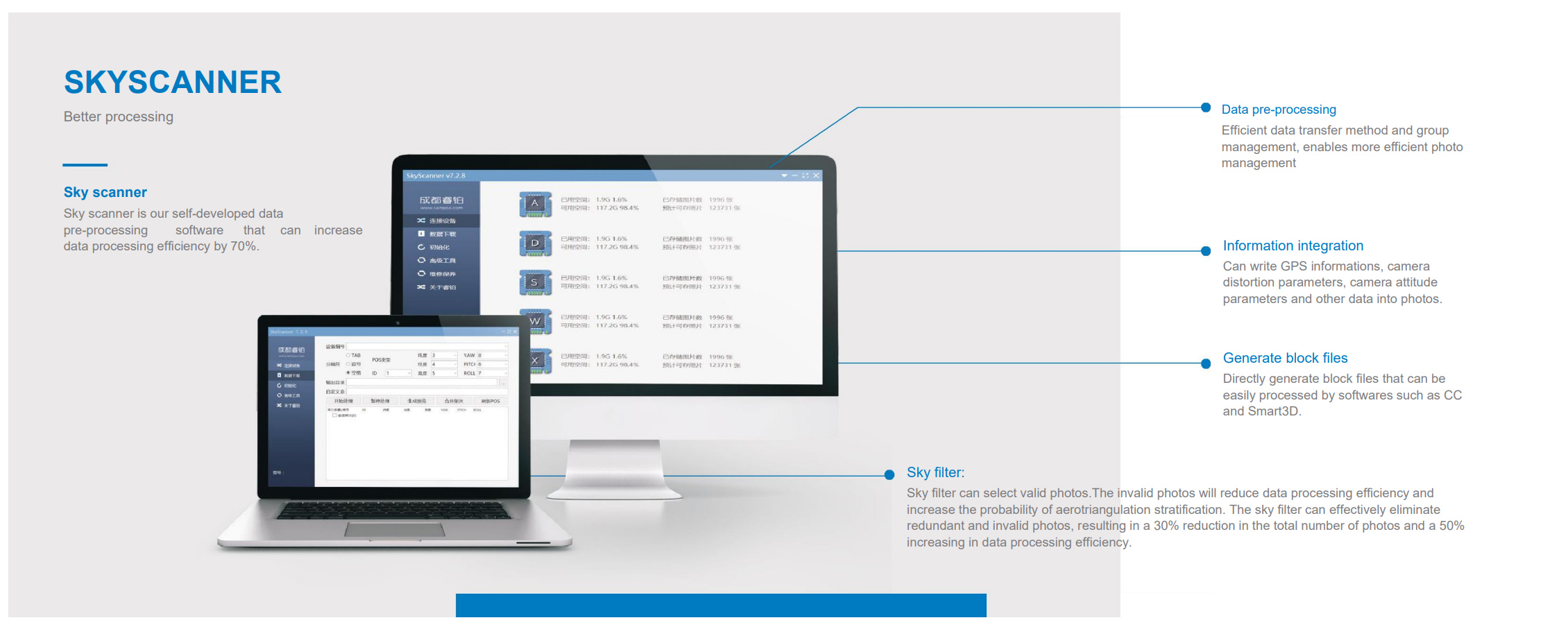

Data preprocessing software：Sky scanner(data preprocessing software)

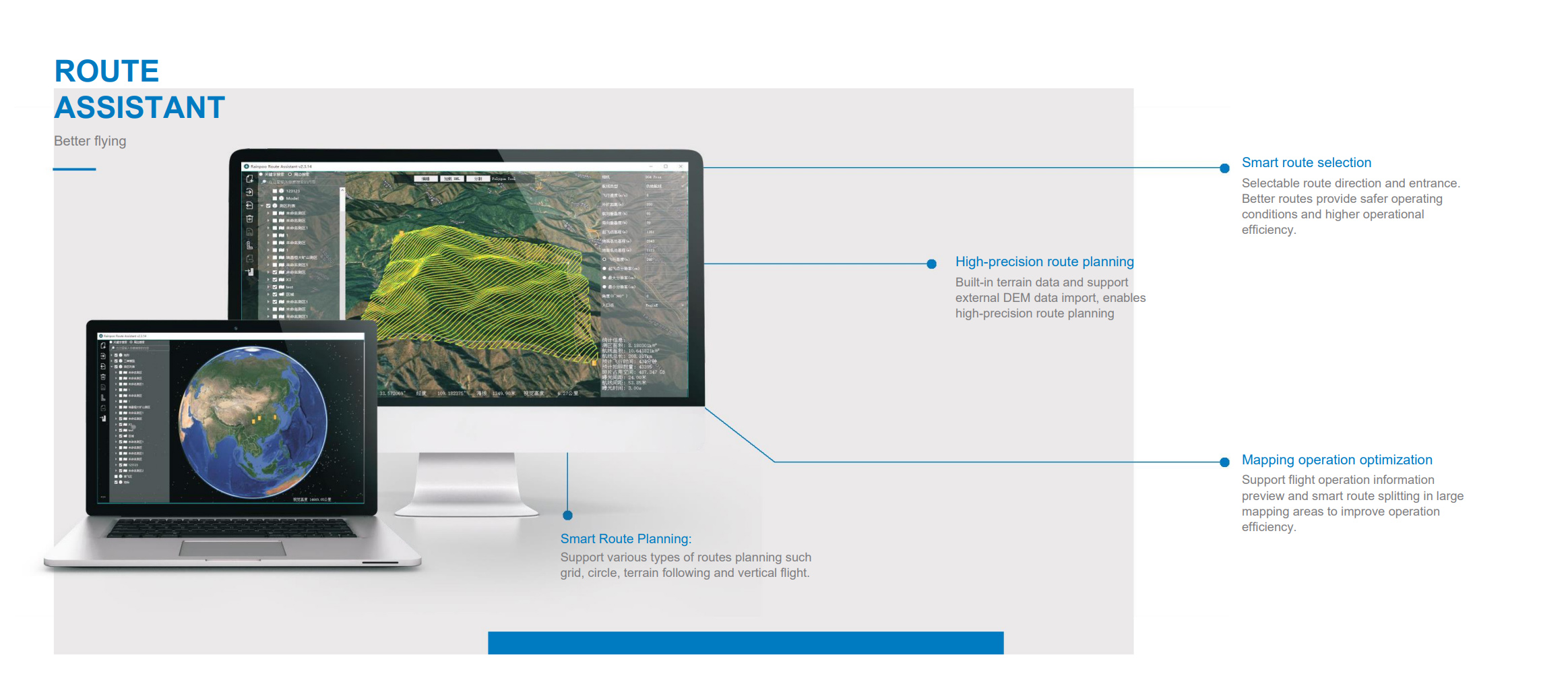

Route planning software：Rain poo Route Assistant
