How to calculate the drone frame sizes and size of the propeller

Calculation principle for drone frame sizes

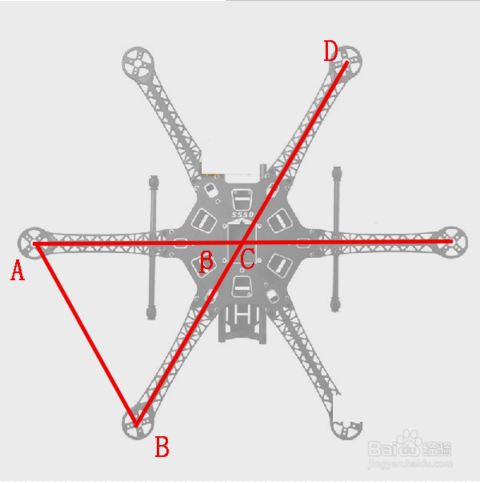

drone frame sizes determines the diameter of the propeller, calculate the straight line distance between two adjacent axes, which is the distance of the AB line in the figure, and the distance of the AB line is just the maximum diameter of the propeller.

drone frame sizes

drone frame sizes


Thinking: How to calculate the distance of AB?


To find the distance of AB in a triangle, use the cosine theorem.

For any triangle, the square of any side is equal to the sum of the squares of the other two sides minus the product of the cosine of the two sides and their angle

formula:




It can be seen that the wheelbase is a four-axis rack with 450mm.

1 inch = 25.4mm

 318.20 / 25.4 = 12.5 inches

Therefore, the maximum propeller diameter obtained is 12.5 inches.

The actual propeller diameter cannot be exactly equal to this value, otherwise the two propellers will fight.

Most of the propeller diameter specifications are integers. It can be known that the maximum propeller diameter supported by this rack can be selected to 12 inches.

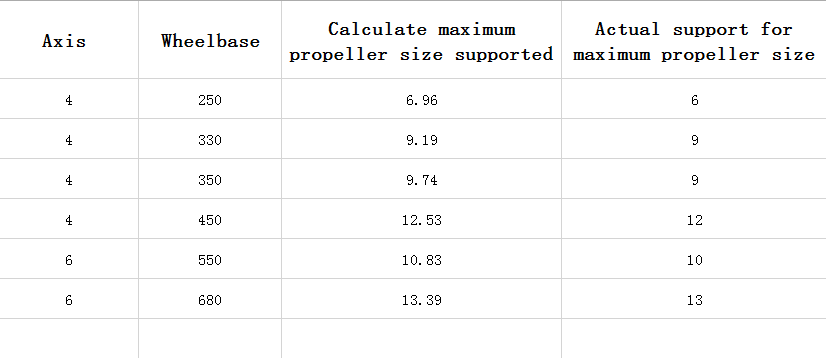

Common racks support maximum propeller diameter


According to the force table, we know that the larger the diameter of the propeller, the greater the efficiency. If it is to obtain the maximum flight time, try to use the largest diameter propeller supported by the drone frame sizes.
