Delivery drone

  • 35kg paylaod 2 hours long endurance unmanned helicopter for delivery
35kg paylaod 2 hours long endurance unmanned helicopter for delivery

35kg paylaod 2 hours long endurance unmanned helicopter for delivery

  • Product description: Flydragon FDC-100 unmanned helicopter has a maximum take-off weight of 110kg, (body weight 65kg, load 45kg), a maximum battery life of 8 hours (full fuel load), and maximum cruise speed is 120km/h. th
  • INQUIRY

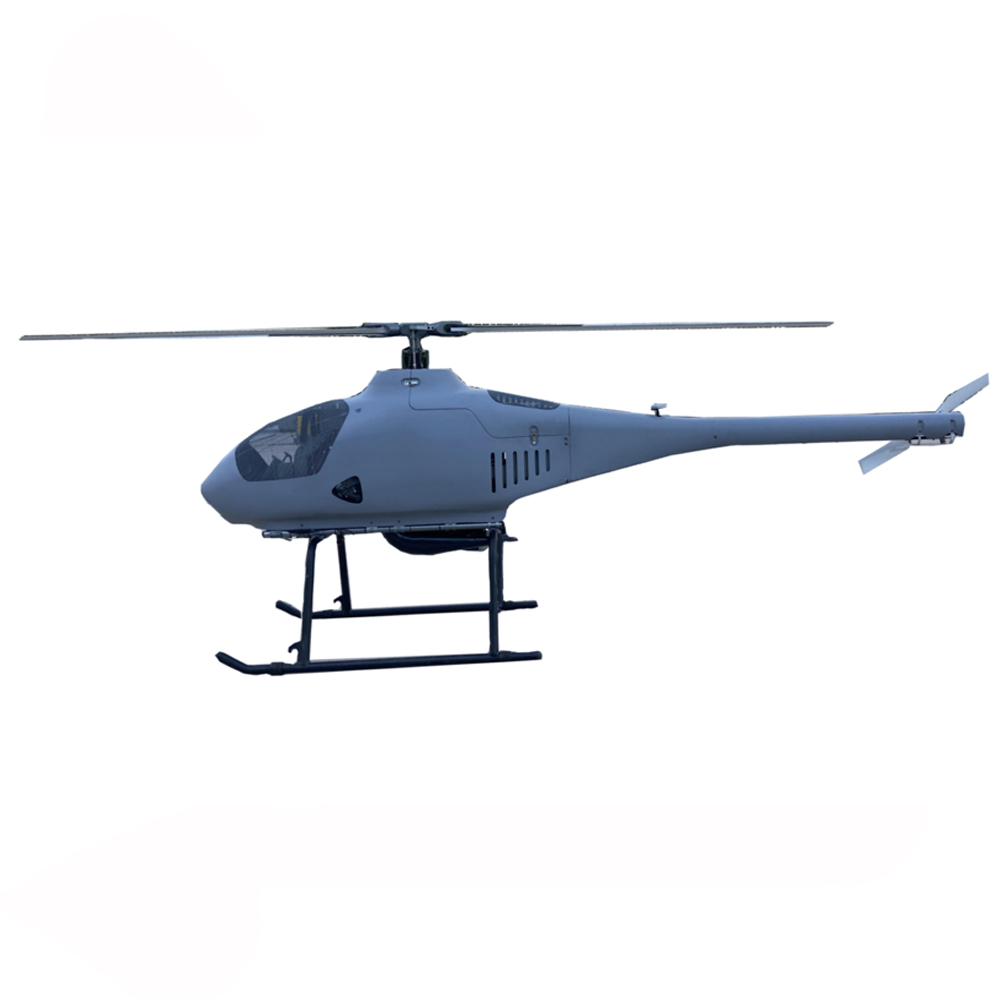

Flydragon FDC-100 unmanned helicopter has a maximum take-off weight of 110kg, (body weight 65kg, load 45kg), a maximum battery life of 8 hours (full fuel load), and maximum cruise speed is 120km/h. this is a long endurance and heavy load unmanned helicopter , it's good for rescue, delivery, drone inspection, surveillance, mapping etc.

Specifications

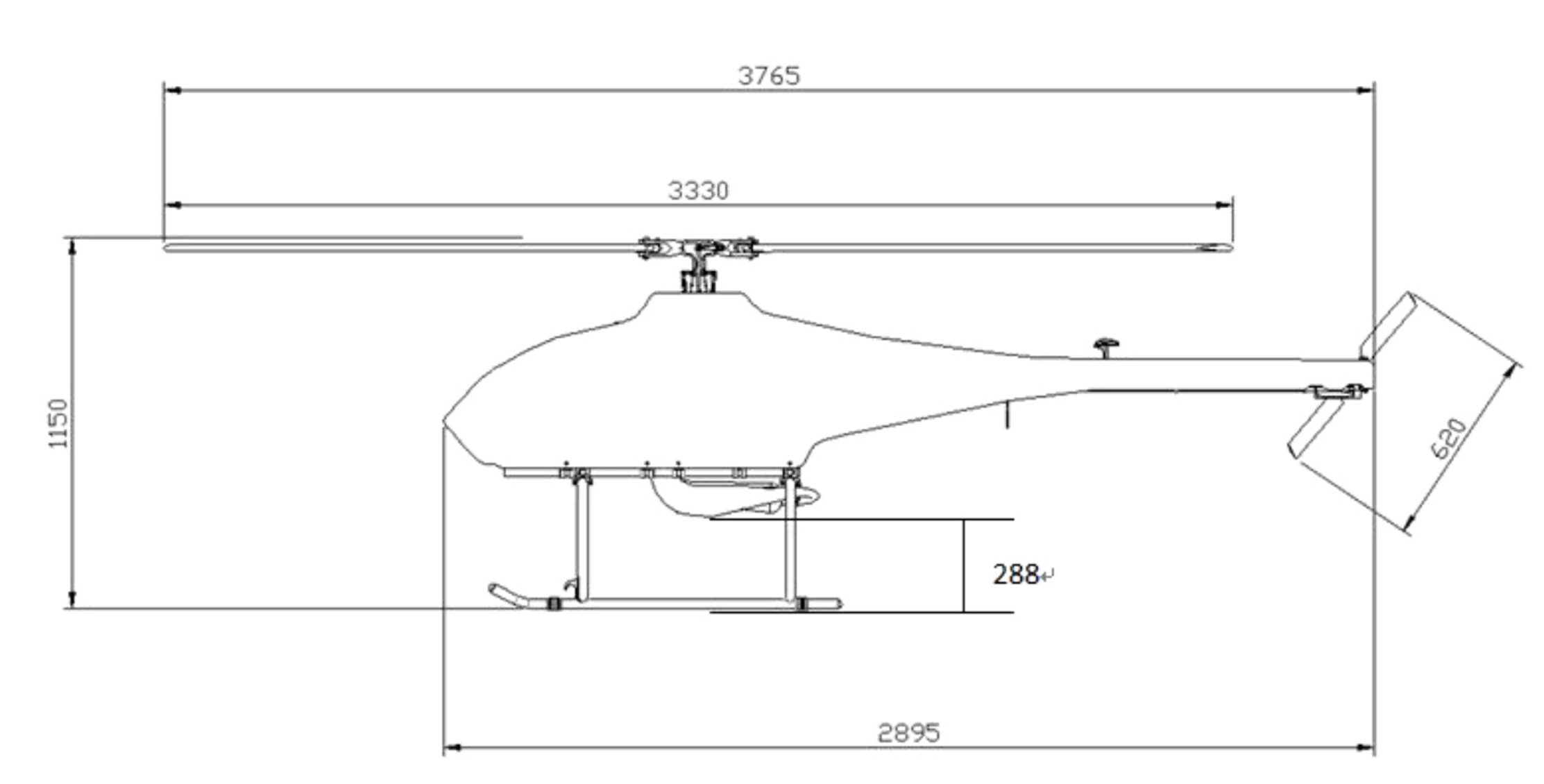

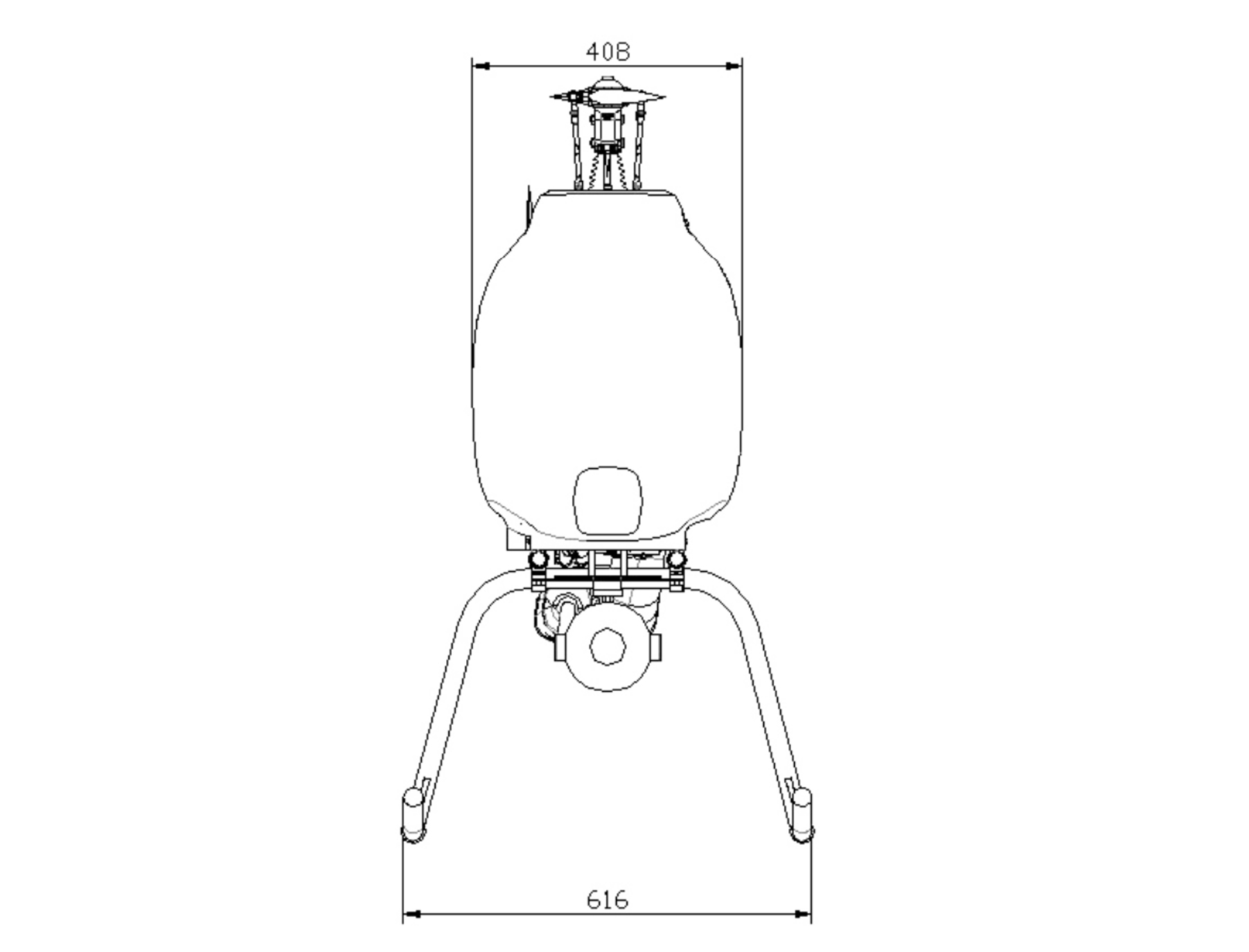

Size: L2895×W616×H1150mm
length of the fuselage: 3765mm (including propeller)
Main propeller diameter: 3330mm
Tail propeller diameter: 620mm
Max.takeoff weight: 110kg
Drone weight: 65kg
Max. paylaod: 45kg
Max. flight speed 120km/h
Max. endurance: 8 hours(without paylaod)
Practical cruising altitude: 3000m
Maximum ceiling 4000m
Working temperature: -20-40℃
Wind resistance class: 6
Engine displacement: 250cc
Main fuel tank: 12L
Auxiliary fuel tank: 9L*2 (optional)
Fuel consumption: 6L/h
Engine start battery: 4700mAh
Engine working voltage: 12V
Avionics battery: 5300mAh×2 (parallel)
Avionics working voltage: 24V
Airborne generator: 12V/80W (for engine) 24V/800W (for avionics)
Fuel label: 98# gasoline
Oil: Special oil for two-stroke
Fuel/Oil Mixing Ratio: 40:1
Start mode: electric start
Cooling method: water cooling + electronic fan
