FlyDragon FD-6000W EFI hybrid drone generator is Based on the needs of multi-rotor drones, we developed the FD-6000W EFI hybrid generator aerospace extender as a 58V (14SLi battery) extender.
The engine uses a two-cylinder, two-stroke gasoline engine as the power source. It is derived from military power projects. It uses a vehicle-grade 32-bit MCU, precise fuel injection ignition, adaptive plateau correction, intelligent learning, and has passed environmental EMC tests. It has high output power and fuel consumption. Features of low rate. The motor adopts an external rotor motor, the motor and the engine are integrated, so that the extender has the advantages of light weight, low noise, and high mass-to-power ratio. The controller has protection functions such as over-voltage, under-temperature and over-speed. Generating 6,000W of hybrid power for the most demanding UAV applications. Larger UAVs pushing the 52kg limit can be easily powered using the FD-6000W . this power unit is the perfect complement to high-end UAV platforms that want to push the industry’s limits.
The FD-6000W EFI hybrid generator aerospace extender has excellent quality, strong power source, and can output high power for a long time.
Rated voltage: 58V
Continuous output power: 6KW
Size (L*W*H): 312*288*206MM
Average fuel consumption: 5.8L/h
Model used: Multi-rotor UAV
Maximum take-off weight: 52KGS
Applicable model power voltage: 58V (14S)
Applicable ambient temperature: -20℃ to 50℃
Starting method: handheld electric starter

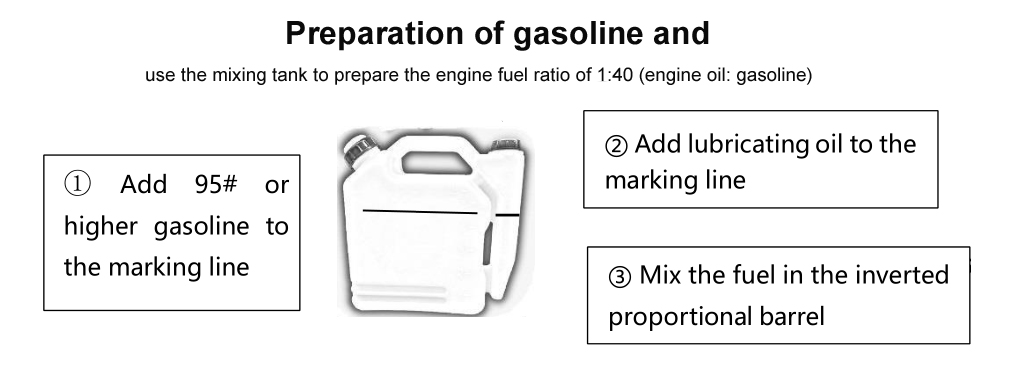

Mixing ratio of lubricating oil and gasoline: 1:40
Engine model: 247AI
Model: Two-cylinder, two-stroke, electronic injection, water-cooled gasoline engine
Displacement (ml): 124
Rated power (KW)@7000r/min: 7.3KW
Rated maximum speed (r/min): 7500
Idle speed (r/min): 5000
Engine oil grade: JASO FC grade or ISO-l-EGC grade and higher grade 2T engine oil
Gasoline identification: 95# gasoline
Introductory TBO:200 hours
