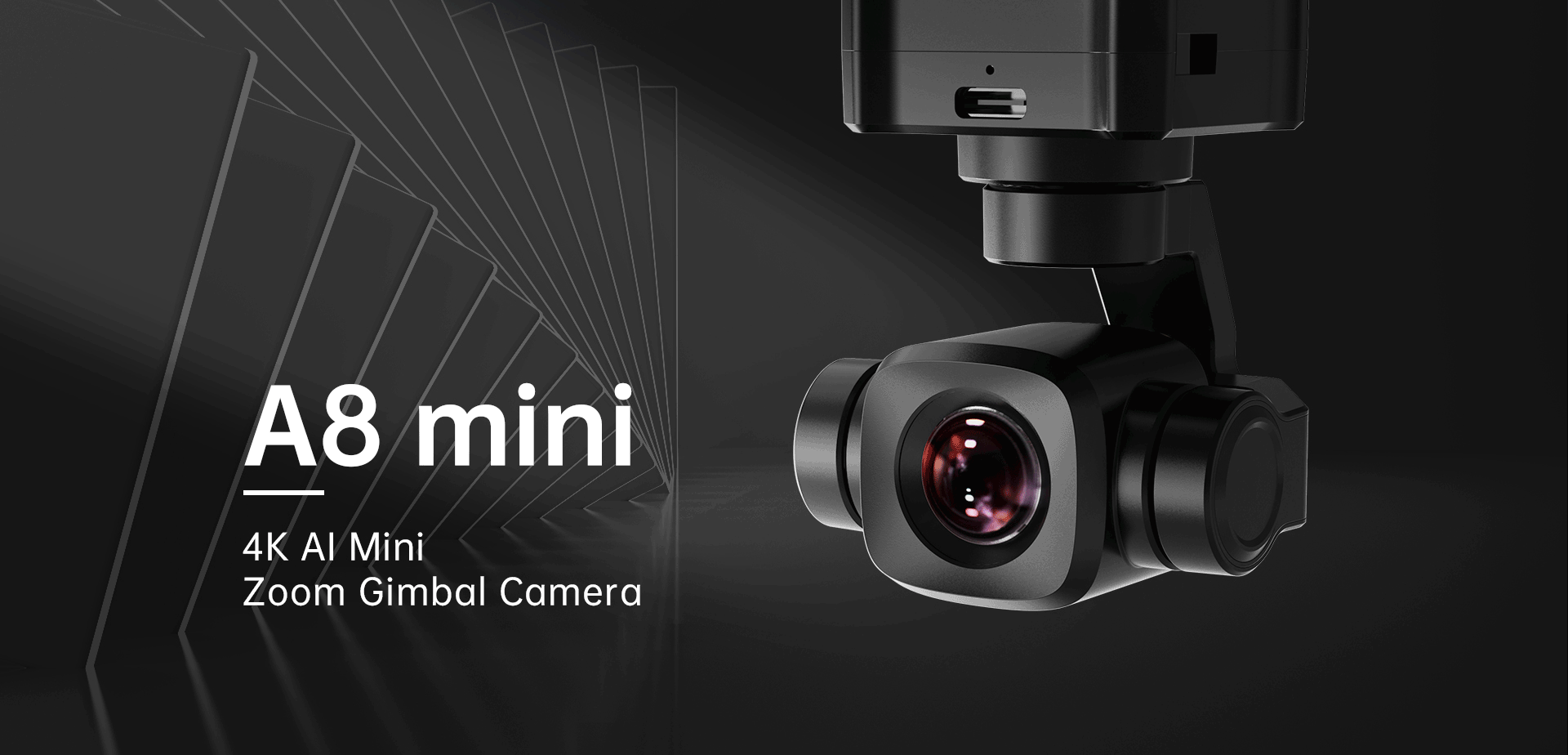

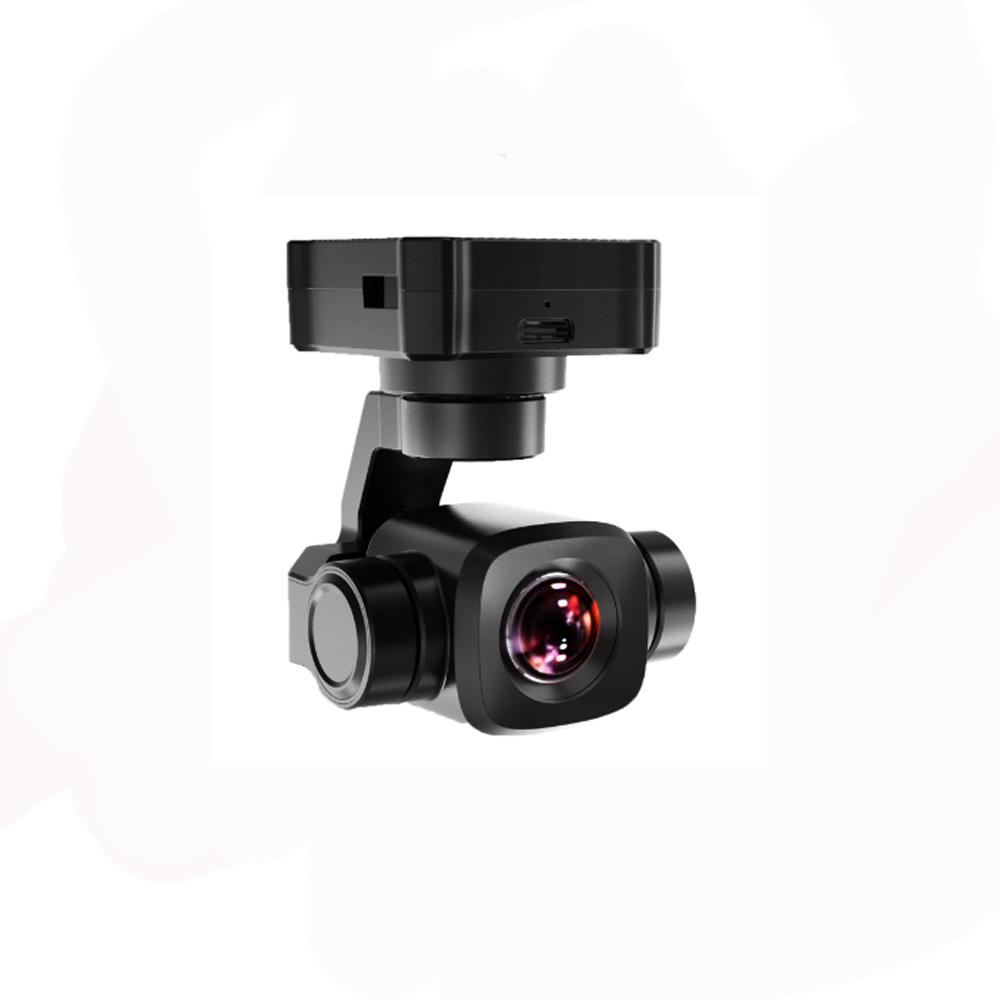

A8 Mini Gimbal Camera 4K 8MP Ultra HD 6X Digital Zoom  for drone & rover

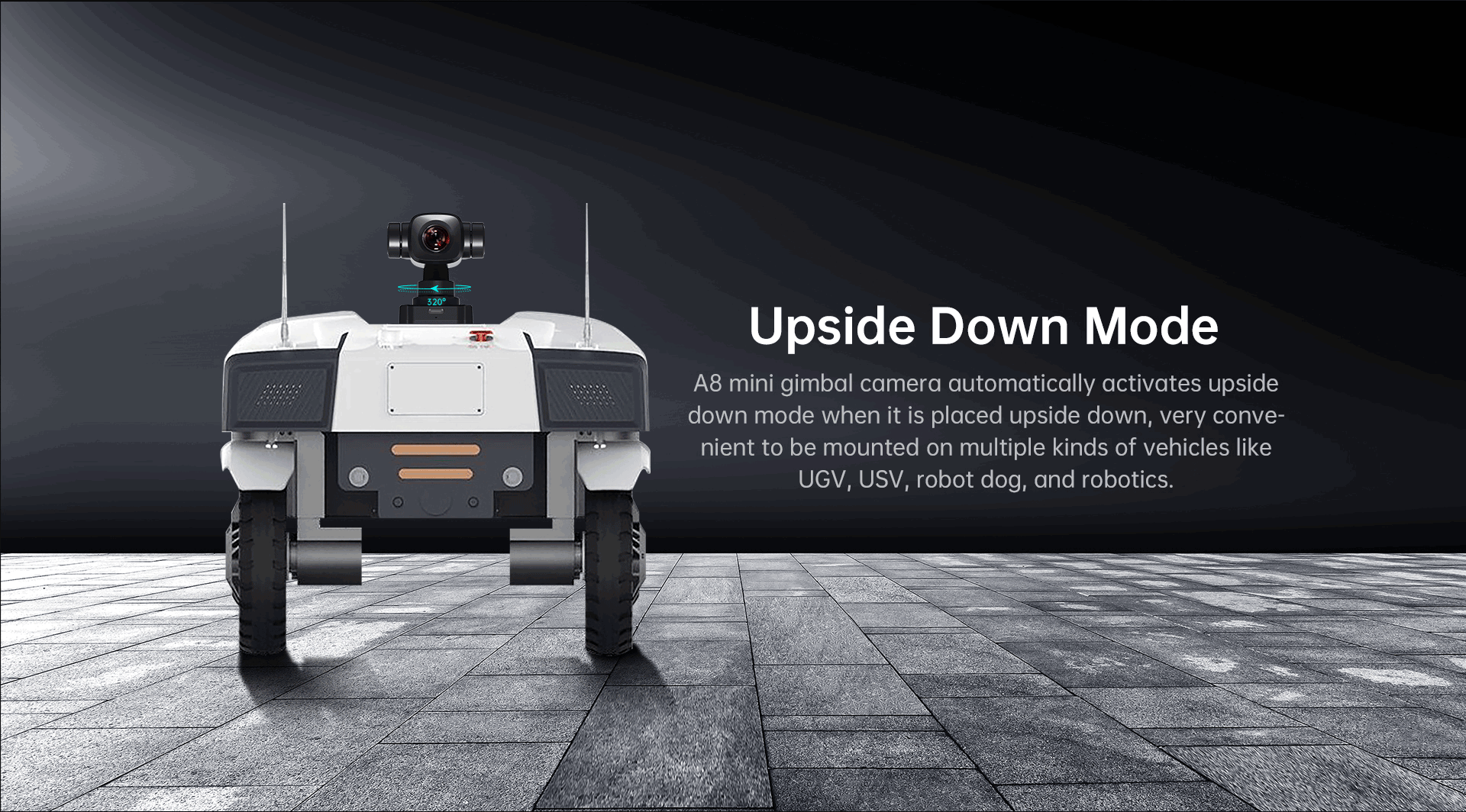

FD-A8 mini gimbal camera, lightweight and elegant, carrying a 4K 1/1.7-inch Sony starlight night vision sensor. A8 mini comes with powerful AI identify and tracking based on neural network professing unit and supports max 6X digital zoom. Ethernet and HDMI output are compatible with both SIYI links and third-party links. And CVBS (AV) output for analog FPV. A8 mini can be widely used for enterprise drones, UGV, USV, robotics, RC hobby planes and FPV drones. it's the best price of 4K drone gimbal cmaera on the market

Overall

Model: A8 mini

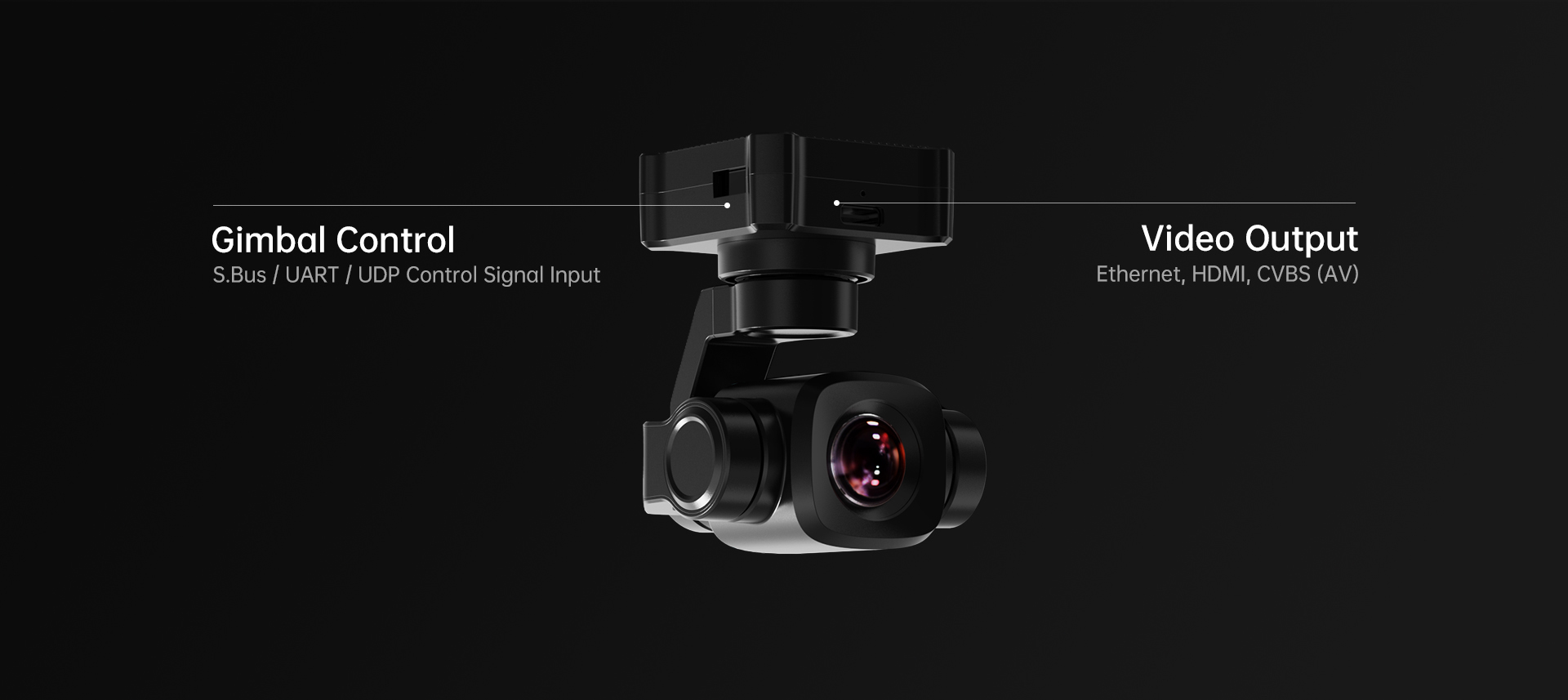

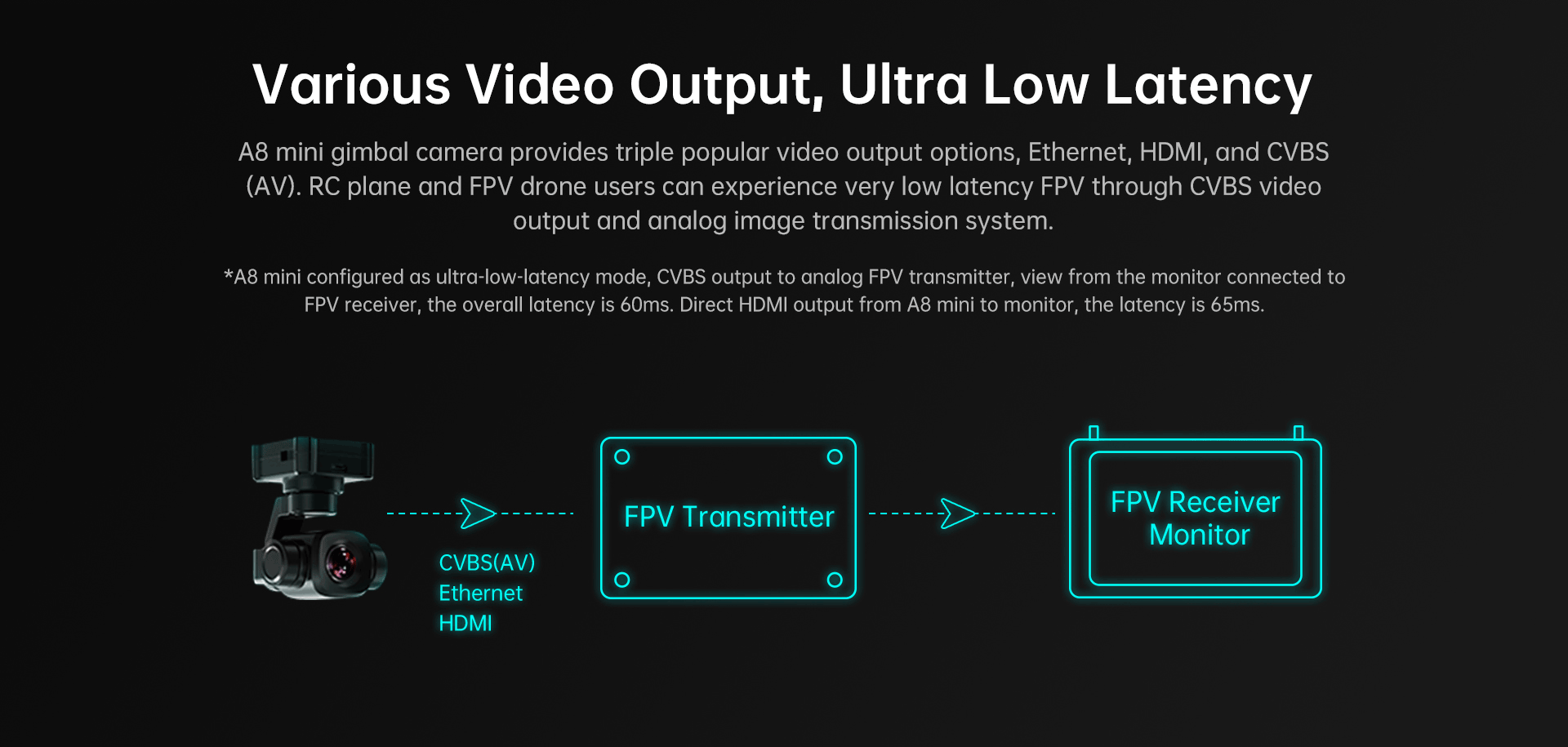

Video Output Port: Ethernet, HDMI, CVBS (AV)
Control Signal Input Port: S.Bus / UART / UDP
Control Signal Output Port: S.Bus
Working Voltage: 11 ~ 25.2 V
Power Consumption: Summit 12 W
Working Temperature: -10 ~ 50 ℃
Dimension: 55*55*70 mm
Weight: Approx. 95 g

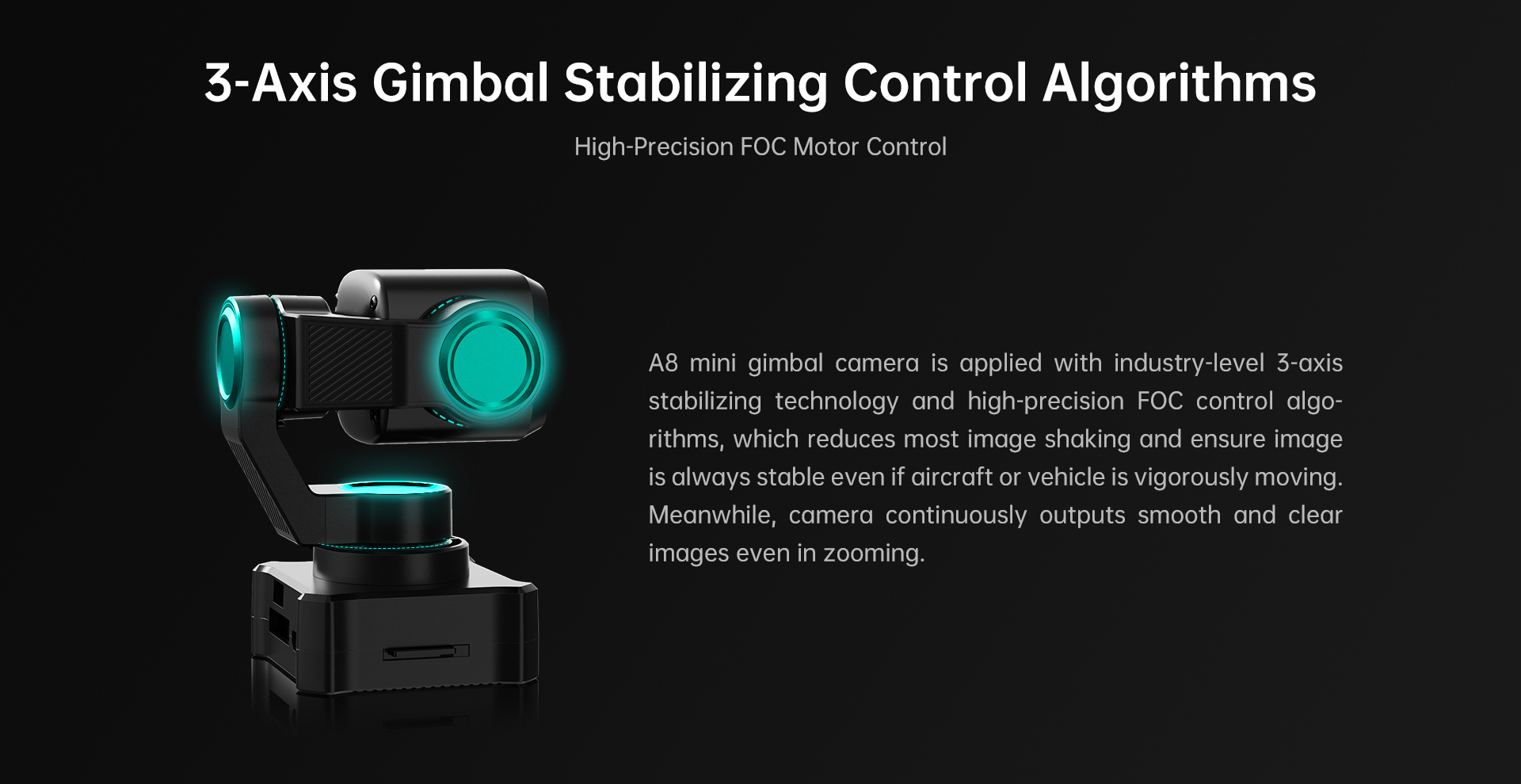

Gimbal

Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -135° ~ +45°
Controllable Yaw Angle: -160° ~ +160°
Controllable Roll Angle: -30° ~ +30°



Camera

Lens: 6X Digital
Focal Length: 21 mm
Image Sensor: Sony 1/1.7-inch, 8 MP effective resolution
Aperture: F2.8
FOV: 93°


TF Recording Resolution:

  • 4K (4096 x 2160) @ 25 fps
  • 2K (2560 x 1440) @ 30 fps
  • 1080p (1920 x 1080) @ 30 fps
  • 720p (1280 x 720) @ 30 fps

Supported File System: FAT32 (exFAT will be supported later by firmware update)
Photography File Format: JPG
Video File Format: MP4
Supported MicroSD Cards: MicroSD Class10, max 128 GB
White Balance: Auto
