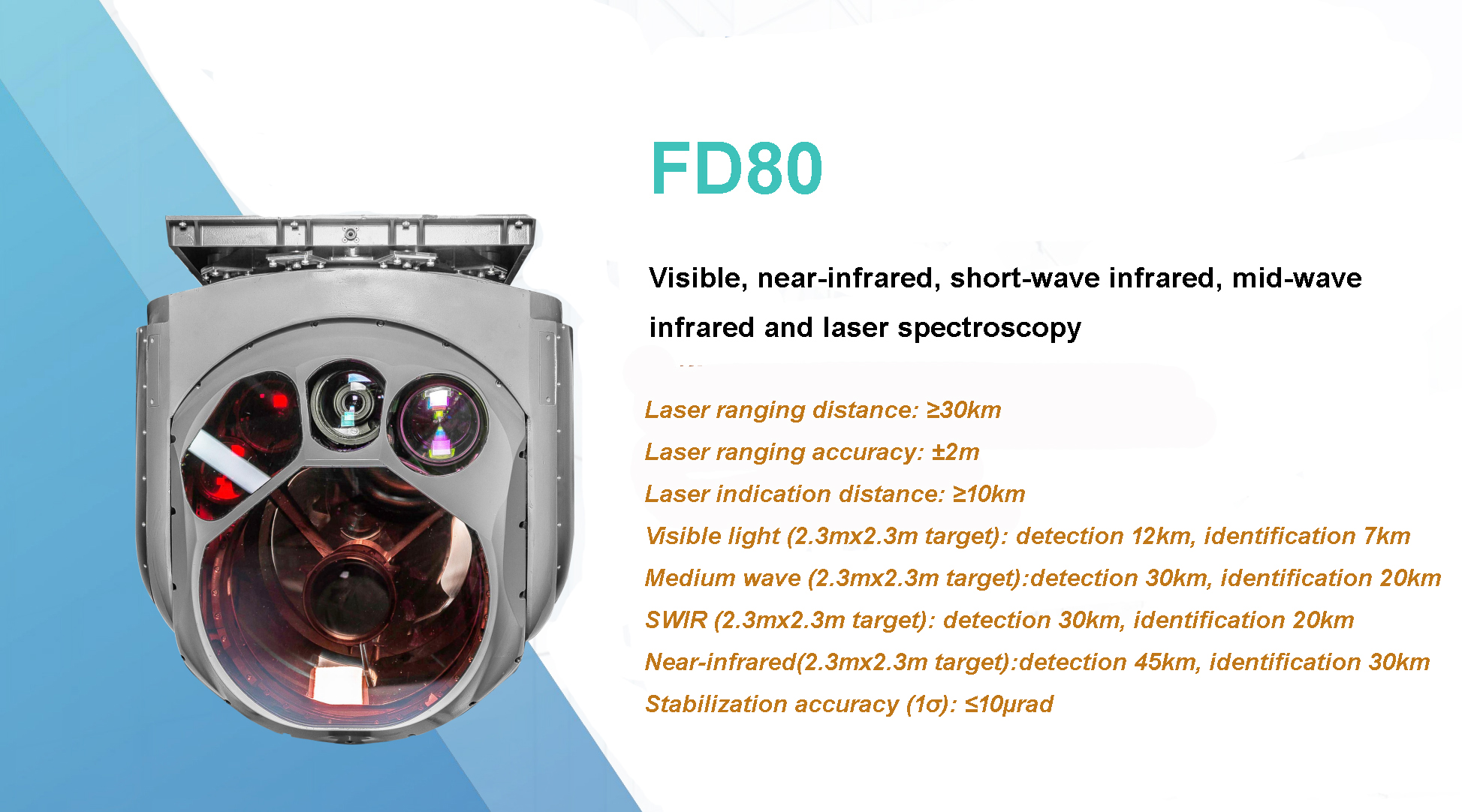

FD80 30X drone camera with 30km Laser photometry

FD80 30X drone camera with 30km Laser photometry

  • Product description: FlyDragon FD80 30X drone camera use 30KM Laser photometry drone camera with target GPS positioning and guidance functions. lacer range is 30km, Laser indication 10km, It adopts a two-axis gyro stabili
  • INQUIRY

FlyDragon FD80 30X drone camera use 30KM Laser photometry drone camera with target GPS positioning and guidance functions. lacer range is 30km, Laser indication 10km, It adopts a two-axis gyro stabilization platform, installs conductive slip rings to achieve 360° continuous rotation, built-in 30X high-definition visible light camera, it can recognition of vehicles 2.3 m*2.3 m away from 20KM, FD80 laser photometry camera meets military standards, meets the requirements of inspection and shooting, and can provide instructions for the laser terminal guidance system

Features

a) Multispectral common aperture;
b) Provide visible light and infrared video images of the surveillance area;
c) can search, detect and identify targets in day and night conditions;
d) The product has its own IMU and has the ability to perform high-precision geolocation of the target;
e) To measure the laser range of the target, and provide real-time information on the line of sight, angular velocity and distance to the mission system;
f) Provide laser indication for laser-guided weapons and support user-defined laser precise frequency codes;
g) spot search and tracking function;
h) With self-test and fault diagnosis function.

Application areas

Mainly used in target reconnaissance, laser guidance and other fields.

Main parameters

visible light imaging

a) Working band: 0.4μm~0.7μm;
b) Detector image element: 1920(H)×1080(V), 1080P;
c) Continuous zoom horizontal field of view: 30.6º×17.2º~1.53°×0.86°.
d) Detection and identification distance (2.3mx2.3m target): detection: 12km; identification: 7km.

Continuous zoom medium wave cooling imaging

a) Working band: 3.7μm~4.8μm;
b) Detector image element: 640(H)×512(V);
c) Field of view: Navigation field of view: 30°x24°, large field of view: 7.44°x6°, medium field of view: 1.86°x1.5°, small field of view: 0.47°x0.37°;
d) Detection and identification distance (2.3mx2.3m target): detection: 30km; identification: 20km.

SWIR imaging

a) Working band: 0.95μm~1.7μm;
b) Detector image element: 640(H)×512(V);
c) Field of view: large field of view: 7.44°x6°, medium field of view: 1.86°x1.5°, small field of view: 0.45°x0.36°;
d) Detection and identification distance (2.3mx2.3m target): detection: 30km; identification: 20km.

Near-infrared imaging

a) Working band: 0.7μm~0.9μm;
b) Detector image element: 1920(H)×1080(V);
c) Field of view: continuous zoom horizontal field of view: 30.6°~1.53°; small field of view: 0.5°x0.5°;
d) Detection and identification distance (2.3mx2.3m target): detection: 45km; identification: 30km.

Laser Illuminator

a) Working band: 1064nm;
b) Energy: ≥75mj;
c) Laser ranging distance: ≥30km;
e) Laser ranging accuracy: ±2m;
f) Laser indication distance: ≥10km;
g) Irradiation code: 8 groups (adjustable, expandable, can support user-defined precise frequency code).

Spot search and follow

a) Working band: 1064nm;
b) Field of view: ≥4°;
c) Search and follow distance: ≥10km.

Servo performance index

a) Rotation range: azimuth axis: n×360 continuous rotation, pitch axis: -120°~+90°;
b) Maximum angular velocity: pitch ≥40°/s, azimuth ≥60°/s;
c) Maximum angular acceleration: ≥60°/s2;
d) Line of sight stabilization accuracy (1σ): ≤10µrad;
e) Geographic coordinate positioning accuracy: ≤20m/10km.

System External Interface

a) Communication interface: 1 RS422;
b) Video interface: 4-way HD-SDI.

Power

a) Nominal DC voltage: 28V;
b) Average power consumption: ≤400W;
c) Peak power consumption: ≤700W.

Structural parameters

a) Size: ≤Φ533mm×700mm;
b) Weight: ≤110kg.

Environmental conditions

a) Working temperature: -45℃~60℃;

b) Storage temperature: -55℃~70℃.
