  • FDT900 mini 1W 30km wireless hopping drone telemetry module
FDT900 mini 1W 30km wireless hopping drone telemetry module

FDT900 mini 1W 30km wireless hopping drone telemetry module

  • Product description: The FDT900-MINI series is a miniaturized digital radio of the T900 series. The T900-MINI series mainly includes T01 and T02 models. The only difference between the two is the interface. The T01 is mai
  • INQUIRY

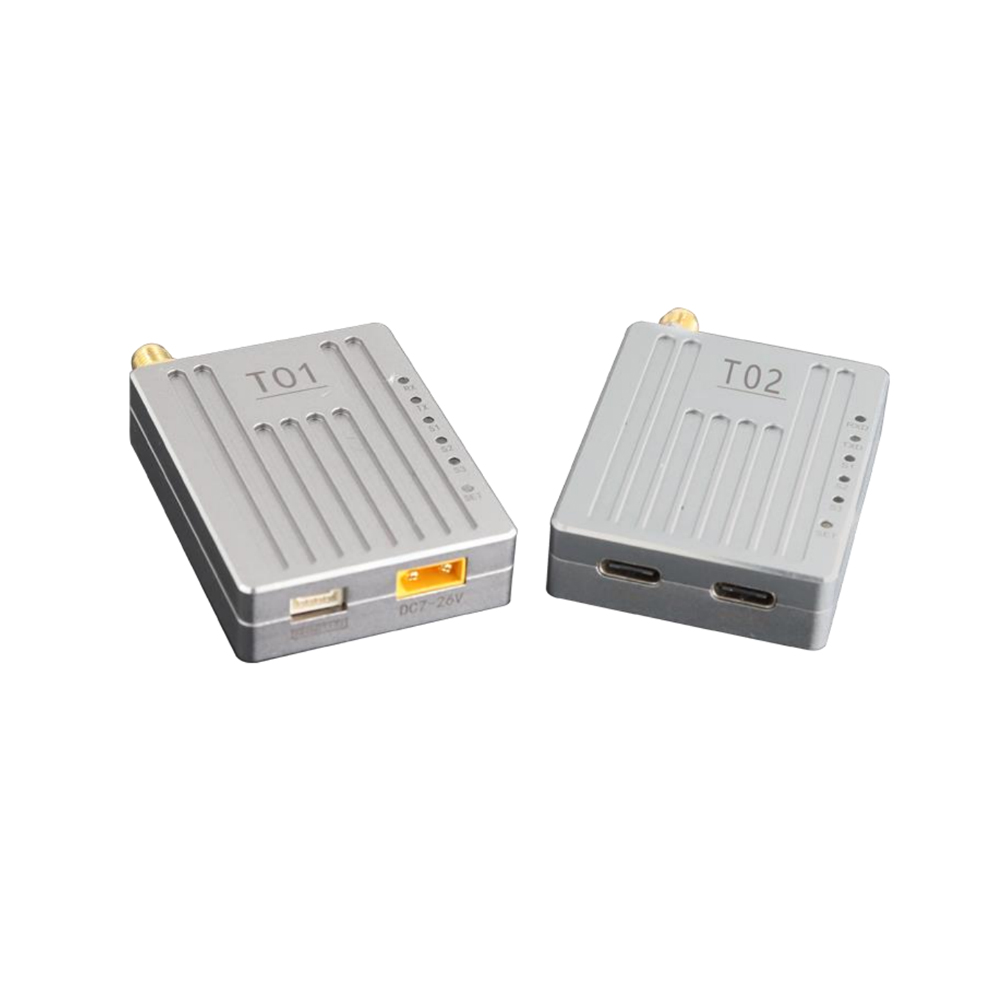

The FDT900-MINI series is a miniaturized digital radio of the T900 series. The T900-MINI series mainly includes T01 and T02 models. The only difference between the two is the interface. The T01 is mainly used for the UAV end, while the T02 uses the Type C interface for the ground end. Both of them have the characteristics of small size, good integration and high sensitivity. T900-MINI series products work in the frequency band of 902~928MHz. In a good environment, the maximum transmission distance can reach 60KM.

Specifications:

Frequency Range: 902-928MHz
Spread Spectrum Mode: FHSS
Data Encryption: 256-bit physical layer encryption
Communication Range: Up to 60km
Output Power: 1W(30dBm)
Orifice Speed: Up to 276.4kbps
Serial Port Baud Rate: Up to 921.6kbps
Working Temperature: -40℃ to 70℃

size: 53mm*40mm*13mm

Weight: 93g
