  • Product description: FDTH-T6 dual IR cmaera is Flydragon new product, it's small and light, whole camera is 125*135*H156mm and 630g only, it's suitable for all of the drone, T6 dual IR camera with 4M pixel with 640x512 pi
  • INQUIRY

FDTH-T6 dual IR camera

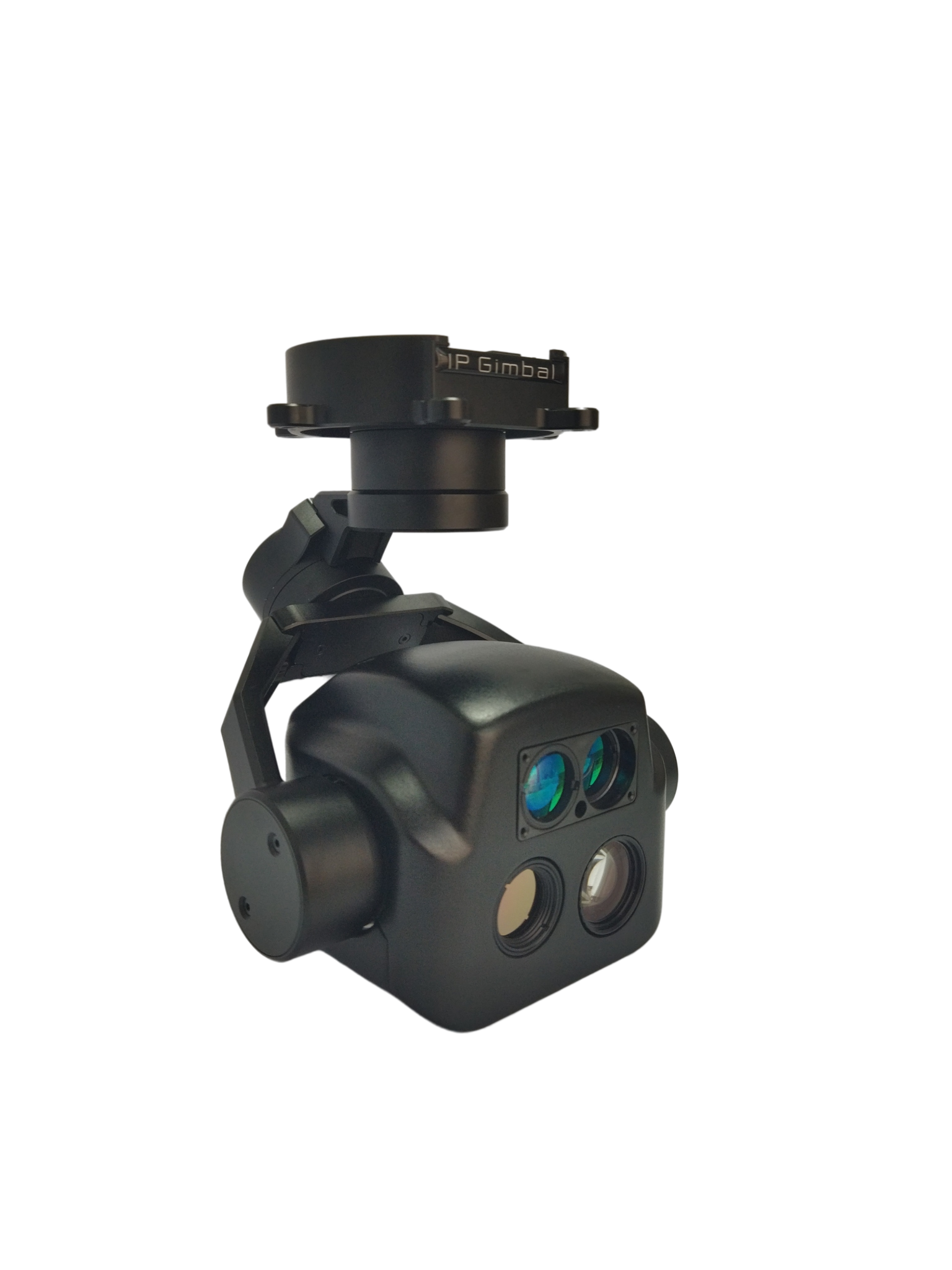

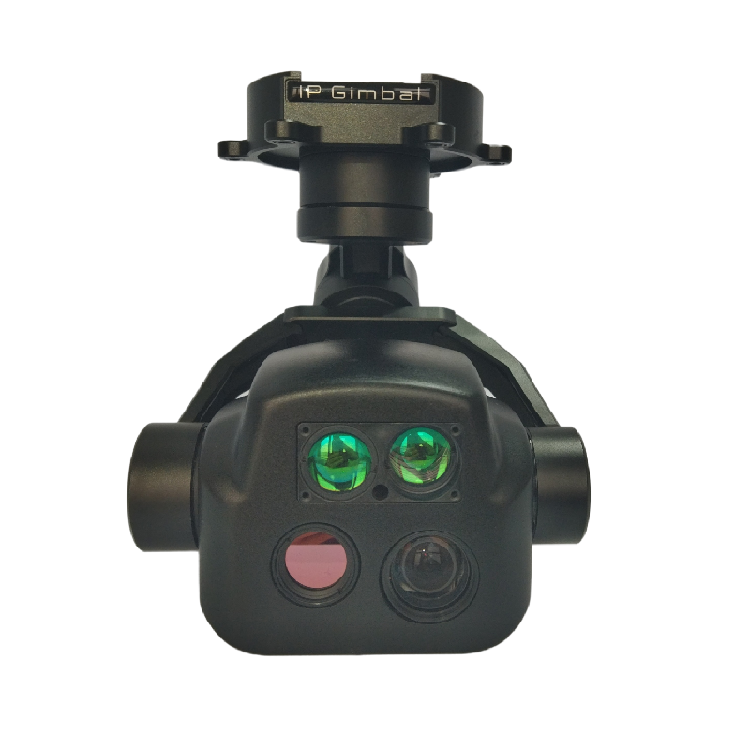

FDTH-T6 dual IR cmaera is Flydragon new product, it's small and light, whole camera is 125*135*H156mm and 630g only, it's suitable for all of the drone, T6 dual IR camera with 4M pixel with 640x512 pixel thermal sensore, lancer range can reach to 1.5 meters, this is one of the cost-effective camera for mapping and serveillance

Specifications:

Voltage: 3S (DC12V) or 6S
Power: Dynamic 12V 0.65A

PTZ

Pitch angle action range: -90~+135°jitter ±0.02°
Heading angle action range: 360° infinite rotation jitter ±0.03°
PTZ mode: support one-key return to center, lock/follow mode
Control mode: speed adaptive controllable, network or serial external control

Camera parameters

CMOS SENSOR: 1/3 inch 4 million pixels
Optical zoom: 10x high-definition optical zoom lens, f=4.9±10%~49±10%mm
Focus time: real-time fast focus function, focus time <1S
Video output: network output RTSP 1080P stream and 480P stream, local TF1080P storage
Field of View (FOV)
D : WIDE 66.6º±5% TELE 7.2º±5%
H : WIDE 53.2º±5% TELE 5.3º±5%
V : WIDE 39.8º±5% TELE 4.2º±5%
Support mode: 1080P 30fps

Lacer ranging

Infrared wavelength: 905nm eye safe
Measuring range: 10-1500 meters
Accuracy/Resolution: 1m/ 0.1m

Thermal Imaging

Resolution: 640*512 pixel
Pixel pitch: 12 μm
Type: Uncooled Focal Plane Microbolometer
Wavelength range: 8~14 μm
Thermal sensitivity (NETD): ≤50mk@F1.0
Contrast, pseudo-color: adjustable, multiple pseudo-color modes
Field of view: 13mm lens, angle: 32.9°x26.6°

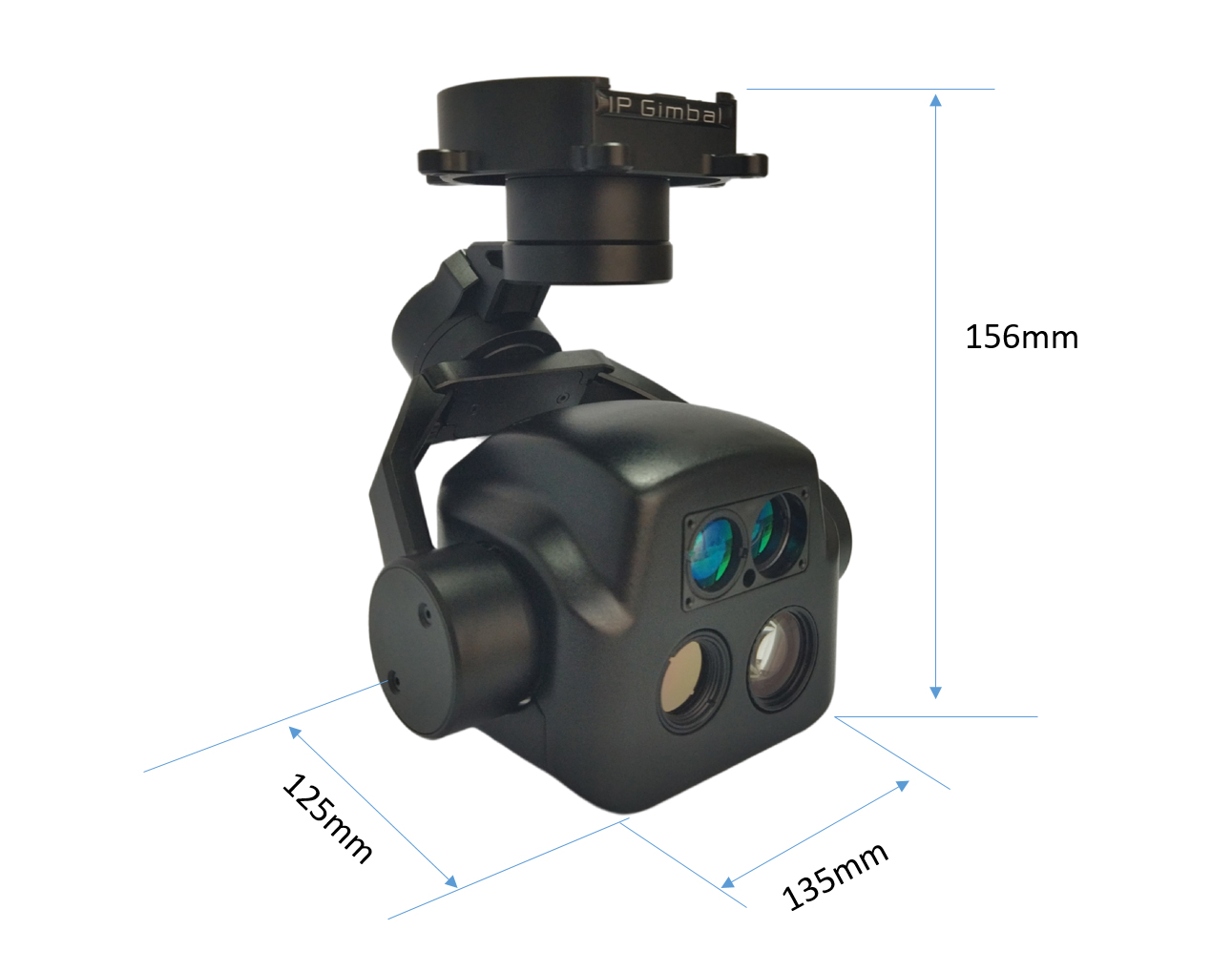

Overall size: 125*135*H156mm
Working environment: - 10℃ to +45℃ / 20% to 80% RH
Storage Environment: -20℃ to +60℃ / 20% to 95% RH
Weight: 630 grams
