  • 800m infrared laser light for drone
800m infrared laser light for drone

800m infrared laser light for drone

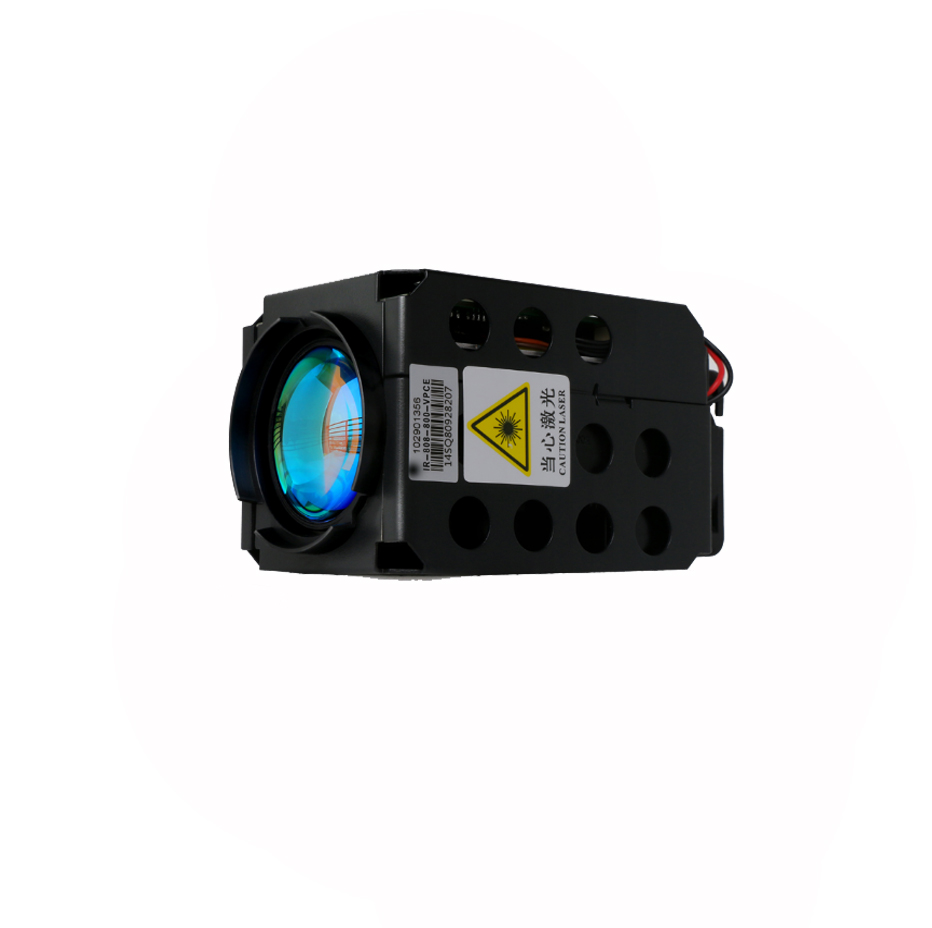

Flydragon IR-850-800 long-distance series of 800-meter fully intelligent VCSEL infrared laser lights are small in size and light in weight, and are suitable for security monitoring systems such as unmanned aerial vehicles, high-speed dome cameras, box cameras, fog cameras and pan-tilts. The best night vision lighting distance is within the range of 20 meters to 800 meters, which can meet the high-definition night vision monitoring quality requirements of professional and industrial applications, such as: safe cities, intelligent transportation, vehicle systems, prisons, border defenses, coastal defenses, and forests. Fire protection, oilfields and oil depots, large-scale factories, safety departments, ecological protection zones, energy mining, water conservancy and power, airports and ports, administrative law enforcement, fishery administration and marine supervision, etc.


2. Features

1. UAV application advantages


Small size and light weight, effectively reducing the UAV load and prolonging the flight time;

The lightest zoom infrared laser light in the industry can be developed according to the customer's secondary structure, and the weight can be as low as 60g;

The laser homogenization technology without jitter, noise and vibration makes the UAV camera better;

Synchronous zoom, fast zoom speed, save time, and more convenient for drone control;

The utilization rate of light energy is higher and energy saving.

2. Intelligent features

Various dimming methods of photosensitive automatic dimming, passive dimming and remote background dimming;

Intelligent synchronous zoom, automatically adapts to the angle of view of the lens, intelligently adjusts the light intensity, supports system presets, and the synchronous electric zoom is continuously adjustable from 2.0° to 70°, which perfectly fits the 30X and 20X surveillance cameras on the market to achieve perfection Fill light effect;

Perfectly match monitoring equipment of different brands and models, plug and play, no need for angle matching;

The system software monitors the working status of the laser in real time and intelligently controls it.

3. Technical characteristics

Class 3B laser safety certification of FDA and IEC;

Light energy utilization rate is above 90%;

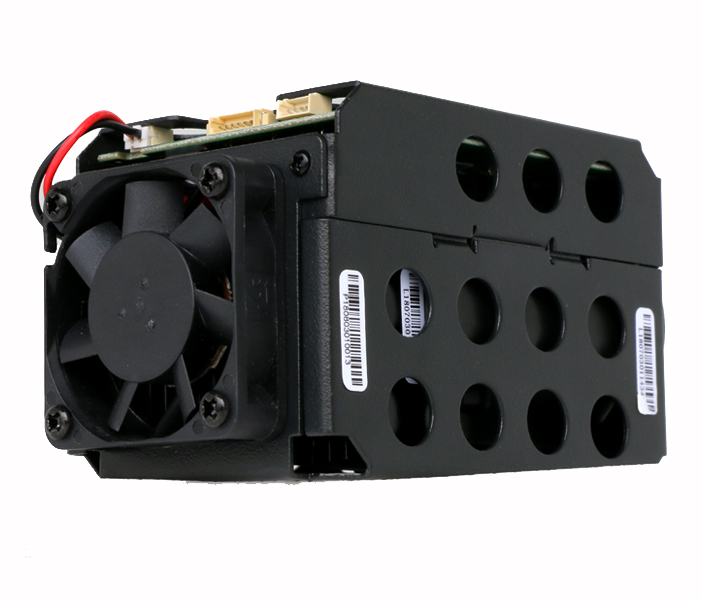

Intelligent temperature control protection, coaxial circulating convection air cooling design, each product has been designed for thermal simulation, and the body temperature is only 5 ℃ ~10 ℃ higher than the ambient temperature;

Patented micro-lens laser homogenization technology (3KM-AOT) without light loss, noise, jitter, vibration, and speckle;

The zoom speed from near-angle to far-angle is up to 2 seconds.

4. Quality characteristics

-40℃ extreme temperature cold start, -40℃~+85℃ industrial grade working temperature range;

Ultra-wide illumination angle 2.0°~70°, no flashlight effect at far angle and near angle, no dead angle;

The electrostatic protection (ESD) of the laser chip is up to 3KV or more;

Array type dustproof design and chip packaging protection, not affected by dust;

The continuous service life of the whole machine is 50000 hours;

The laser response speed is 100 times faster than the traditional one, and there is no COD;

Military-level inspection and testing:


       a) The finished product is tested for 6 hours on six sides, with an amplitude of 3 mm and a frequency of 25 Hz.
       b) The finished product has a 1.5-meter drop test with packaging.
       c) 96-hour room temperature aging test for finished products to eliminate the early failure of the laser and strictly control the defect rate within one thousandth.
       d) The product has undergone a 6-month high temperature life test to ensure that the life of the laser meets customer needs.
