VTOL and Fixed-wing

FD400 VTOL UAV with 4hours endurance time with 4kg payload

  • Product description: FD400 VTOL UAV is a conventional layout pure electric tail thrust vertical take-off and landing fixed-wing UAV with a forward R&D design process, it has superior performance than electric vertical fix
  • INQUIRY

FD400 VTOL UAV with 4hours endurance time with 4kg payload

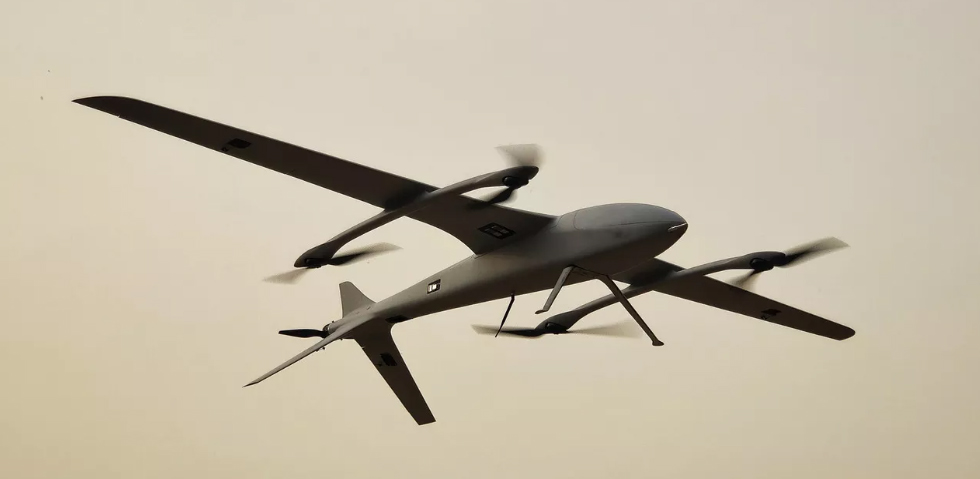

FD400 VTOL UAV is a conventional layout pure electric tail thrust vertical take-off and landing fixed-wing UAV with a forward R&D design process, it has superior performance than electric vertical fixed-wing UAVs of the same level. It is made of full-fuselage aviation carbon fiber composite material, which has high strength and light weight, and is suitable for a variety of application scenarios such as long operation time and rapid switching of task loads.

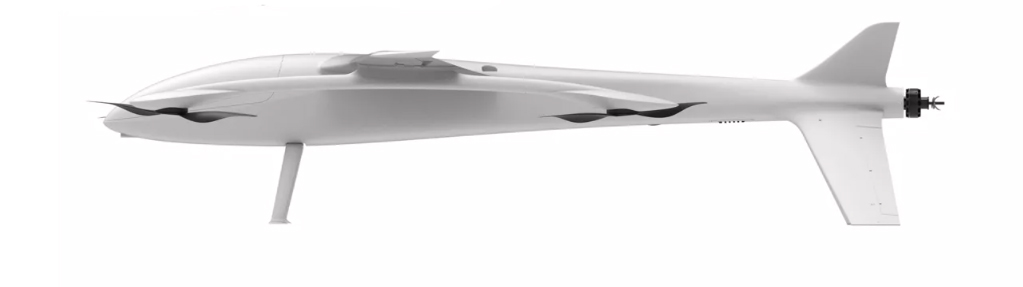

FD400 VTOL UAV

Specifications

Length: 1985mm

Height:680mm

wingspan:4000mm

Airframe material: Aviation carbon fiber composites

Max.Payload:10kg

Max.Take-off weight:30 kg

Level speed:20-33m/s

Cruising speed:24m/s

Flight time:2h@10kg; 4h@4kg

Max.range:360km

Altitude limited:4500m

Operation Temperature:-20°C-45°C

wind resistance:take-off level 5/ cruising level 6

Protection:IPX4

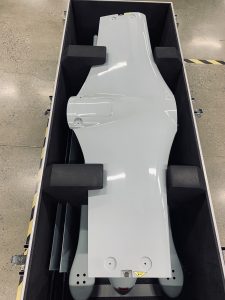

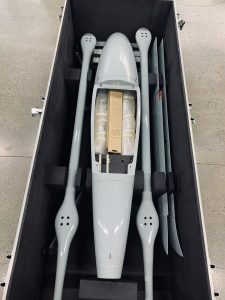

Packing size:1840*720*600mm

FD400 has two tails, please confirm which one do you need before order
