Drone Gimbal Camera

  • FDC4 40x 4K FHD Drone Camera
FDC4 40x 4K FHD Drone Camera

FDC4 40x 4K FHD Drone Camera

  • Product description: FDC4 40x 4K FHD Drone Camera is a high-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor cont
  • INQUIRY

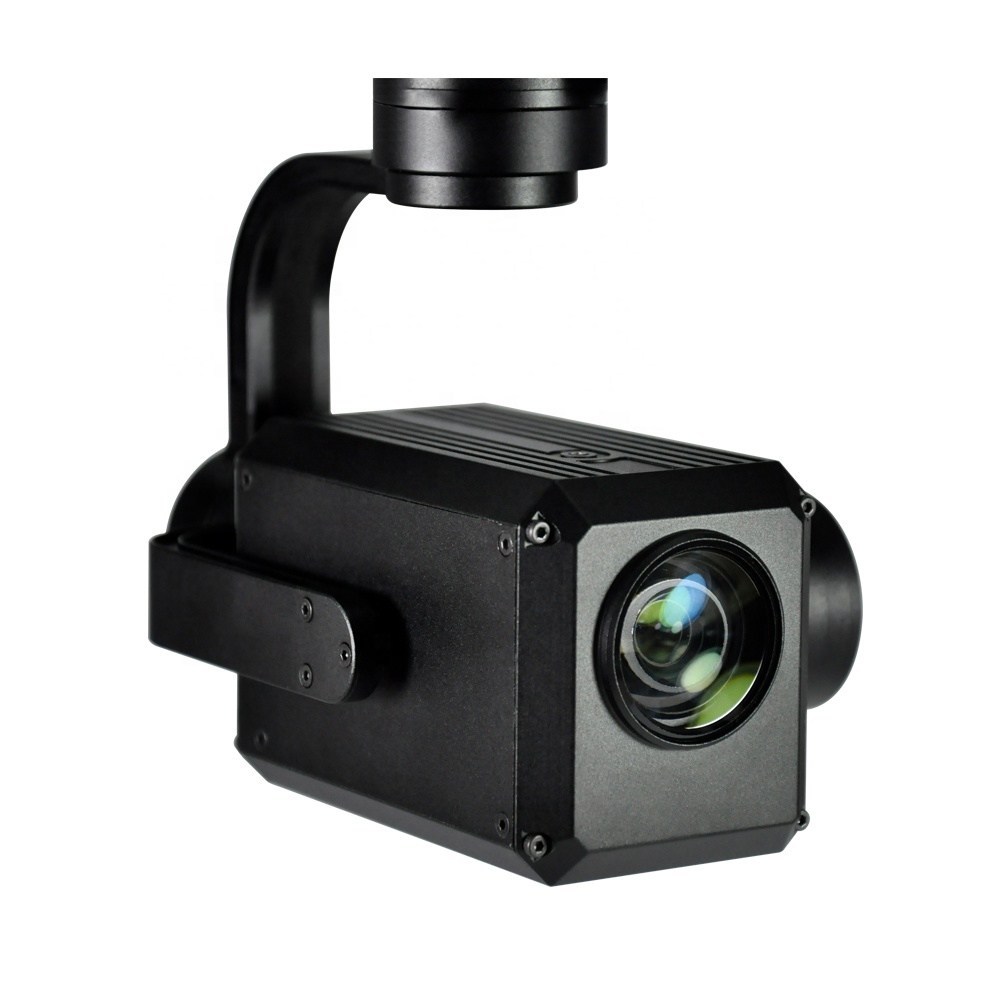

FDC4 40x 4K FHD Drone Camera is a high-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. With advanced OIS function, FDC4 can compensate the subtle movements of the UAV to keep the camera stable even under 20 times optical zoom. It can be used on DJI drones M200 / M210 / M210RTK and controlled directly and fully by APP DJI PILOT. Powered by Panasonic 1/2.3inch CMOS 25.9MP 4K camera, FDC4 is engineered for inspection especially power and utility industry. The speed of FDC4 gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode for wide end, which makes the gimbal control sensitive and quick. The one-key.

to center function will allow the gimbal return to initial position automatically and rapidly. You can input a degree in APP Payload Setting and get the gimbal attitude angles exactly.

Main Features

– Panasonic 1/2.3″ CMOS
– 20x optical zoom, 40x in FHD video mode
– 25.9MP 4K video camera
– HDMI 1080p output
– 2 SD card storage, up to 128G
– N.W. 595g
– Competible with DJI drones M200 / M210 / M210RTK

40x 4K FHD Gimbal Camera 40x 4K FHD Gimbal Camera

Specifications
Hardware Parameter
Working voltage
12V

Working environment temp.

-40℃ ~ +60℃
Output
 Skyport
Local-storage
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method
DJI Pilot
Gimbal Spec
Pitch/Tilt
±90°
Roll
±85°
Yaw/Pan
±360°*N
Vibration angle
Pitch/Roll: ±0.02°, Yaw:±0.03°
One-key to center
Camera Spec
Imager Sensor
Panasonic 1/2.3inch CMOS
Optical Image Stabilization
5 axis Optical Image Stabilization
Effective pixel
25.9MP
Lens optical zoom
Optical zoom:20x, iA zoom:25x(4k) / 40x(FHD)
Record effective pixel
4k:8.29MP / FHD:6.10MP(16:9)
 Object Tracking
Update rate of deviation pixel
50Hz
Output delay of deviation pixel
<15ms
Minimum object size
16*16 pixel
Maximum object size
128*128 pixel
Tracking speed
±32 pixel/frame
Object memory time
100 frames (4s)
