FLY-230 Angel Wings VTOL

FLY-230 Angel Wings VTOL

  • Product description: vertical takeoff aircraft is one that can hover, take off, and land vertically. This classification can include a variety of types of aircraft including fixed-wing aircraft as well as helicopters and
  • INQUIRY

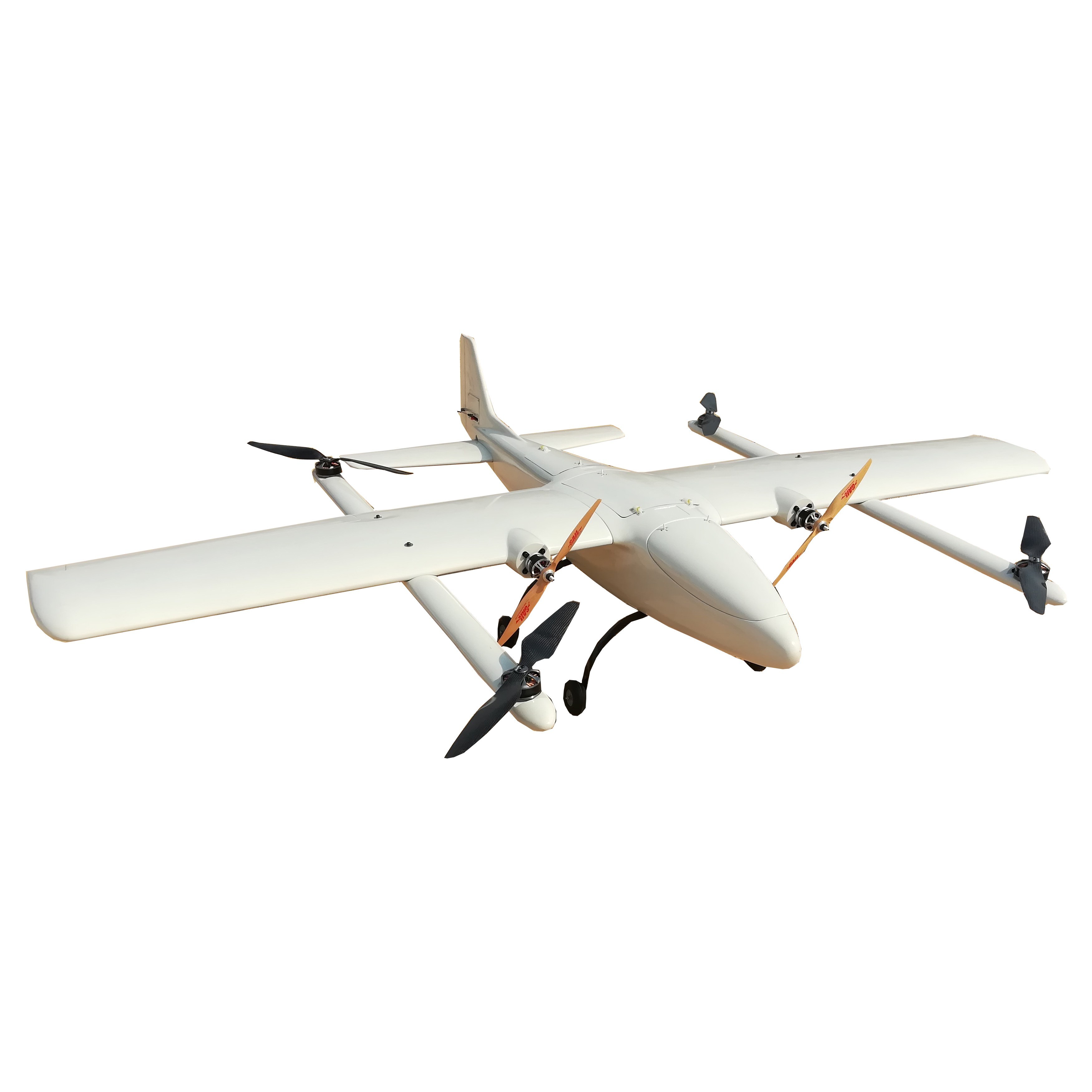

vertical takeoff aircraft 2.3 meter Angel Wings VTOL fixed wing KIT for UAV building

vertical takeoff aircraft is one that can hover, take off, and land vertically. This classification can include a variety of types of aircraft including fixed-wing aircraft as well as helicopters and other aircraft with powered rotors, such as cyclogyros/cyclocopters and tiltrotors.[1] Some VTOL aircraft can operate in other modes as well, such as CTOL (conventional take-off and landing), STOL (short take-off and landing), and/or STOVL (short take-off and vertical landing). Others, such as some helicopters, can only operate by VTOL, due to the aircraft lacking landing gear that can handle horizontal motion. VTOL is a subset of V/STOL (vertical and/or short take-off and landing). Some lighter-than-air aircraft also qualify as VTOL aircraft, as they can hover, takeoff, and land with vertical approach/departure profiles. Electric and hybrid-electric vertical takeoff and landing aircraft eVTOL is a technology being used in the quest for fully autonomous passenger air vehicles (PAV). Besides the ubiquitous helicopter, there are currently two types of VTOL aircraft in military service: craft using a tiltrotor, such as the Bell Boeing V-22 Osprey, and another using directed jet thrust, such as the Harrier family and new F-35B Lightning II Joint strike Fighter (JSF). In the civilian sector currently only helicopters are in general use (some other types of commercial VTOL aircraft have been proposed and are under development as of 2017). Generally speaking, VTOL aircraft capable of STOVL use it wherever possible, since it typically significantly increases takeoff weight, range or payload compared to pure VTOL.

Specification

Wingspan: 2300mm
Overall Length: 1600mm
Wing Area: 0.74㎡
Mission Load: ≤2kgs
Max Speed: 30M/S
Cruise Speed: 26M/S
Endurance: 60 minutes

Recommended Set-up:
Dual Tractor Motors: X4110S-KV450 motor*2pcs (with 1238 Propeller*2pcs)
VTOL Motors: 5008-KV400 motor*4pcs (with 1755 Propeller*4pcs)
ESC: 50A esc*6pcs
Servo: Standard Servo*4pcs (1 more for the Parachute if you plan to use the Parachute)
Battery: 6S 22000mah (around 60 mins flight time)

NOTE: THE PRICE IS JUST KIT, WITHOUT ANY ELECTRONIC, AND THE PACKING IS IN WOODEN CASE NOT IN ALUMINUM BOX!
