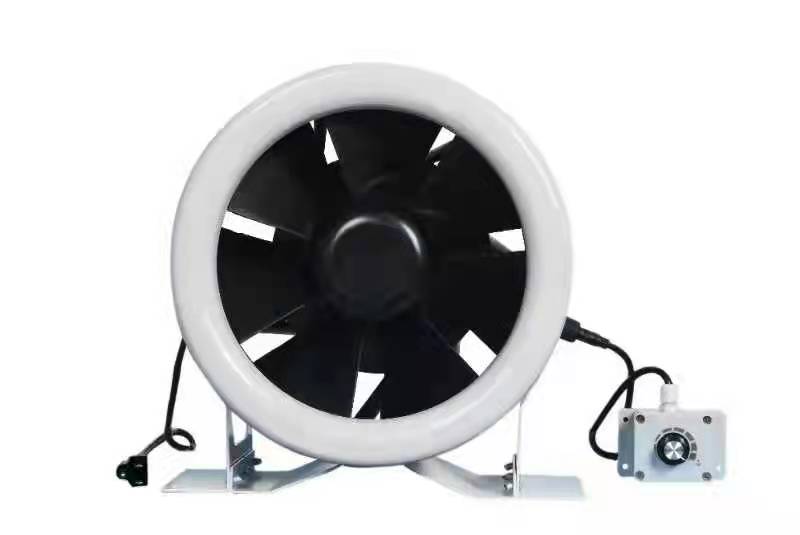

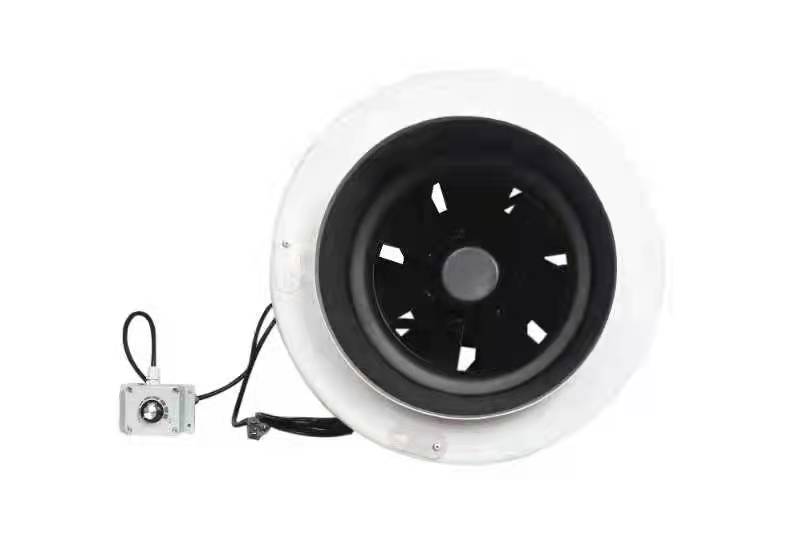

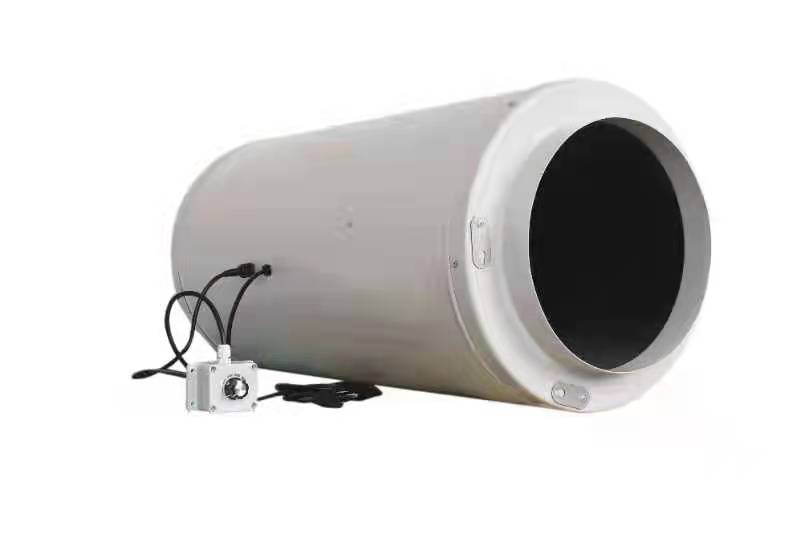

FD-SQ-10 Fan develped by FlyDraon for agriculture greenhouse, it's more lighter with Large air volume, widly used for agriculture greenhouse and construction industry
APPROVAL SHEET
Description: EC Mixed Flow Fan 10’’
Dimension : 353*798mm
Model : FD-SQ-10
SPECIFICATION
1. MECHANICAL CHARACTERISTICS
|
MATERIAL OF HOUSING |
Cold-roll steel sheets，White |
|
MATERIAL OF FAN BLADE |
UL94V-0； Thermoplastic Black Fire proofing, Grade UL94V-0 |
|
DIRECTION OF ROTATION |
Anticlockwise viewed from front of fan blade |
|
PRODUCT WEIGHT |
14.5 KG |
2. ELECTRICAL CHARACTERISTICS
|
RATED VOLTAGE |
110VAC |
|
INPUT CURRENT |
1.1A± 10% |
|
INPUT POWER |
120W |
|
OPERATING VOLTAGE RANGE |
110~120VAC |
|
STARTING VOLTAGE |
90VAC(At 25℃,100% Duty Cycle POWER ON/OFF) |
|
OPERATING PERATURE/HUMIDITYRANGE |
-10℃ ~ +60℃ / 15% ~ 93 %RH |
|
STORAGE TEMPERATURE/HUMIDITY RANGE |
-40℃ ~ +70℃ / 15% ~93 %RH |
PERFORMANCE CURVES
PERFORMANCE CHARACTERISTICS
|
RATED SPEED(RPM) |
2500RPM± 10％，(At 25 ℃，After 0.5 minutes) |
|
DUTY 50% SPEED(RPM) |
(At 25 ℃ , After 0.3 minutes) |
|
AIR FLOW |
1071CFM/1820M3H |
|
SOUND PRESSURE NOISE(1m) |
55.00dB(A) |
|
INSULATION RESISTANCE PLASTIC FRAME |
Min. 10MΩ at 500VDC between frame and (+) terminal. |
|
DIELECTRIC STRENGTH |
5mA max. at 1500VAC 50Hz 1 minute between frame and (+) terminal |
|
LIFE EXPECTANCY |
50,000Hours, at 25℃, 15%~85%RH |
|
PROTECTION |
OVER VOLTAGE PROTECTION |
|
The fuse blew out of protection |
|
|
OVER CURRENT PROTECTION |
|
|
Lock protection and automatic reset circuits incorporated function |
|
|
RoHS-Free Pb |
RoHS compliance |
|
IP Protection Grade |
IP54 |
|
MOTOR TYPE |
EC MOTOR |
Function
|
Speed Control Type |
Potentiometer Control |

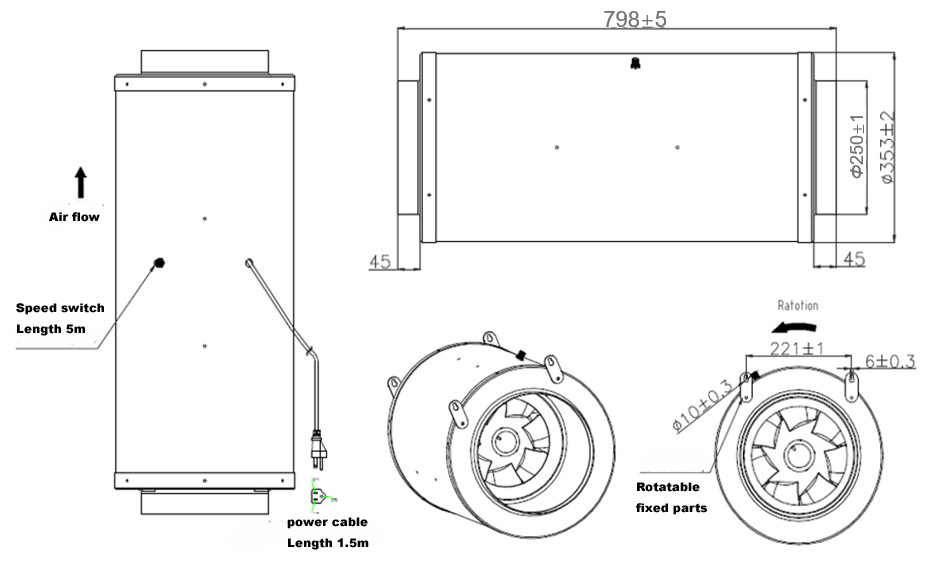

DIMENSION
Contact: Fly Dragon Drone Tech.
Email: frank at dronefromchina.com
Add: NO. 9 Dayu Road PiDu distric, ChengDu 611730, China
