  • HM30 Full HD Digital Video Link Telemetry Radio System Dual-Way Transmission for drone
HM30 Full HD Digital Video Link Telemetry Radio System Dual-Way Transmission for drone

HM30 Full HD Digital Video Link Telemetry Radio System Dual-Way Transmission for drone

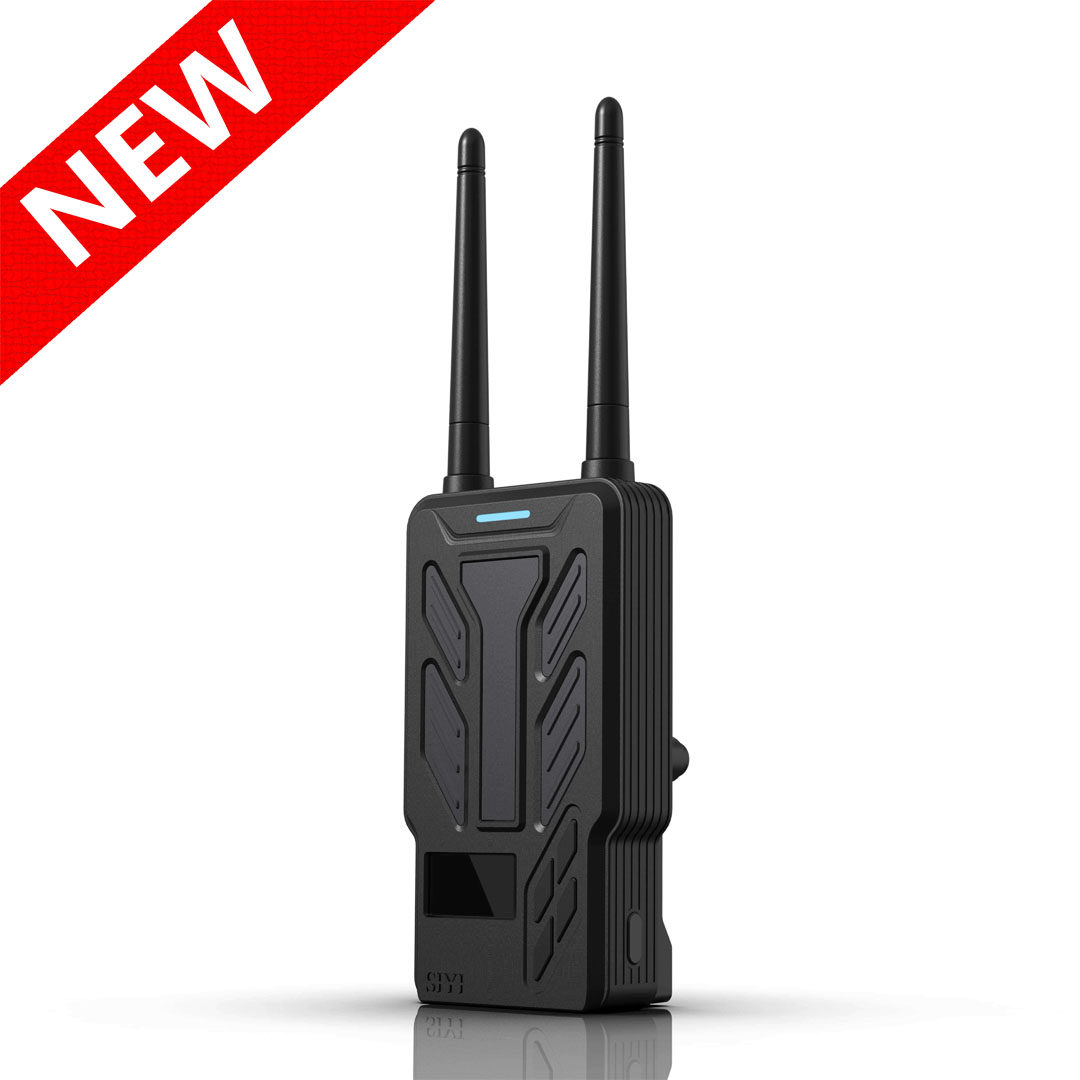

SIYI HM30 Full HD Digital Video Link Telemetry Radio System Dual-Way Transmission for drone

SIYI HM30 is a 30KM level 150ms low latency 1080P full HD video link based on the latest image transmission technology. Abundant features and powerful performance make it a commonly applied device of reliable FPV view and solid control on FPV planes, commercial drones, unmanned vehicles and boats, and robotics.

Overall: Datalink Stream supported FC (Mavlink) : Pixhawk, APM, SN+, SN-NAVI, MATEK H743/F405, or any other flight controllers with UART output
Video Stream supported GCS (RTSP): QGroundControl, SIYI FPV
RC: Remote control signal input
UART: Datalink output
LAN: Ethernet port
VCC: Power output

Functional Interface
Type-C: USB video stream output, PD fast charging, PC firmware update, USB WiFi
XT30 VCC: Power input
1/4” Screw Hole: Tripod connector

Compatible Flight Controllers: Max FPV Range: 30 KM
