Fixar launched new hybrid VTOL industrial drone Fixar 007

The drone manufacturer Fixar has launched a new hybrid vertical take-off and landing (VTOL) industrial drone, Fixar 007, which is designed to meet the needs of various industrial tasks such as surveying/mapping, last-mile cargo delivery, inventory management, etc. Provides an integrated solution for small multi-task industrial drones.

Fixar 007 UAV integrates the advantages of multi-rotor UAV take-off and landing maneuverability, and strengthens load capacity and endurance. Its advantage is that it has a unique fixed-angle rotor system. There is no need to change the motor angle when the vertical/horizontal flight mode is switched. , Which can effectively reduce the number of unmanned aerial vehicle moving parts and reduce the risk of potential failure of the platform.

Fixar 007 UAV adopts a modular plug-and-play payload bay, which can quickly realize load switching (such as lidar, RGB/multispectral camera system replacement, etc.) to meet the needs of multi-task applications.

The Fixar 007 UAV can operate reliably under strong winds and other climatic conditions, realizing imaging mapping of 400 hectares of ground area, 60 kilometers of road/railway/ground pipelines and other areas. The UAV has a battery life of up to 4 hours, during which it can image a ground area of 8.2 square kilometers with an accuracy of 5 cm.

FlyDragon FLY-380 hybrid VTOL industrial drone

The FLY-380 UAV platform is equipped with industrial-grade vertical take-off and landing fixed-wing flight control and navigation system, as well as professional aerial aerial survey and inspection ground station software. It can ensure that the drone can fly autonomously throughout the process, without operator intervention to complete the autonomous take-off and flight status. In the flight phase of conversion, autonomous cruise, and autonomous landing, it also supports automatic route planning for 1000 waypoints and emergency standby plan for 100 waypoints.
The drone platform has the following features and advantages:
a) Practical and efficient: it has the characteristics of fixed-wing UAV’s long flight time, fast speed, long distance and large load;
b) Vertical take-off and landing: with the take-off and landing mode of the rotorless drone, greatly reducing the requirements for landing and landing and airspace;
c) low cost of use: no complicated and bulky launching and recycling equipment, no additional recycling sensors required;
d) Simple operation: integrated special flight control and navigation system, full autonomous flight, operators only need to send flight plans, no professional training and operational experience;
e) Compact system: no complicated auxiliary equipment, simple transportation, deployment, maintenance and withdrawal.

Specification

Body length: 2.5m
Wingspan: 3.8m
Maximum takeoff weight: 50kg
Maximum payload: 15kg
Life time: 2h@15kg payload, 4h@10kg payload
Flying radius: 200-400km (depending on the amount of oil)
Maximum control distance: Remote control (manual control): 1km
Ground station control (depending on the distance of the digital transmission): 30km standard
Maximum speed: 130km/h
Cruising speed: 100-120km/h
Maximum oil load: 12L
Lift limit: 4000m
Maximum wind resistance: 12m/s (6 wind)
Use environment: -10 °C +45 °C; anti-light rain
Climb/lower power battery: 4*14000mAh-6S lithium battery
Take-off and landing mode: vertical takeoff and landing

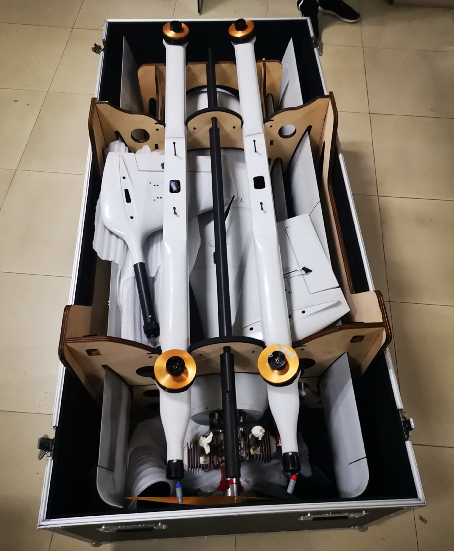

Shipping size: 1.6*0.7*0.6m (length * width * height)
