  • Product description: FD7000 Drone Ground Control Stations from dragon fly tech, and dragon fly is a leading portable GCS manufacturer suppling professional, drone ground control stations (GCS) for unmanned aerial vehicles
  • INQUIRY

Drone Ground Control Stations (GCS) & Portable GCS for UAV, Drones and UGV

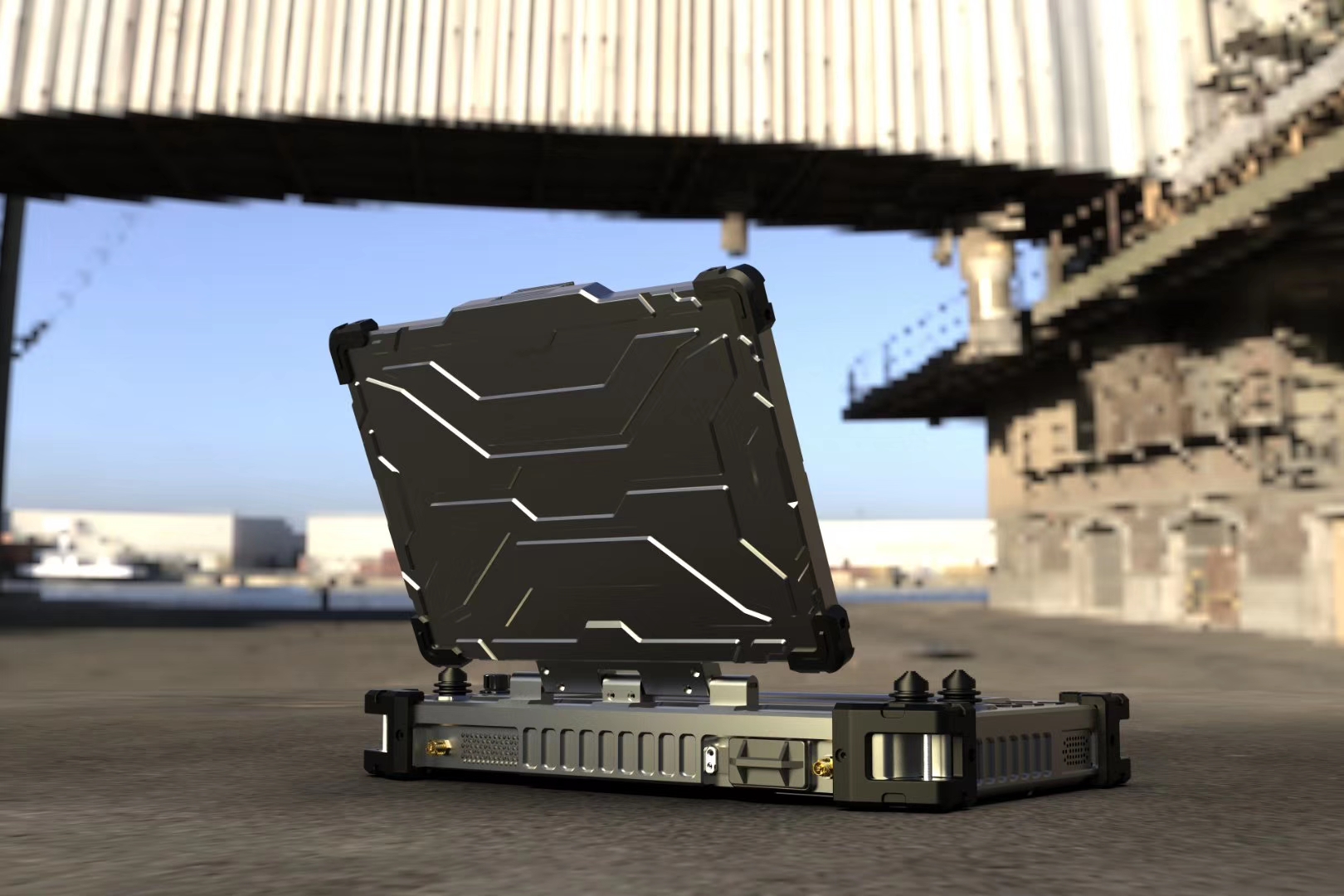

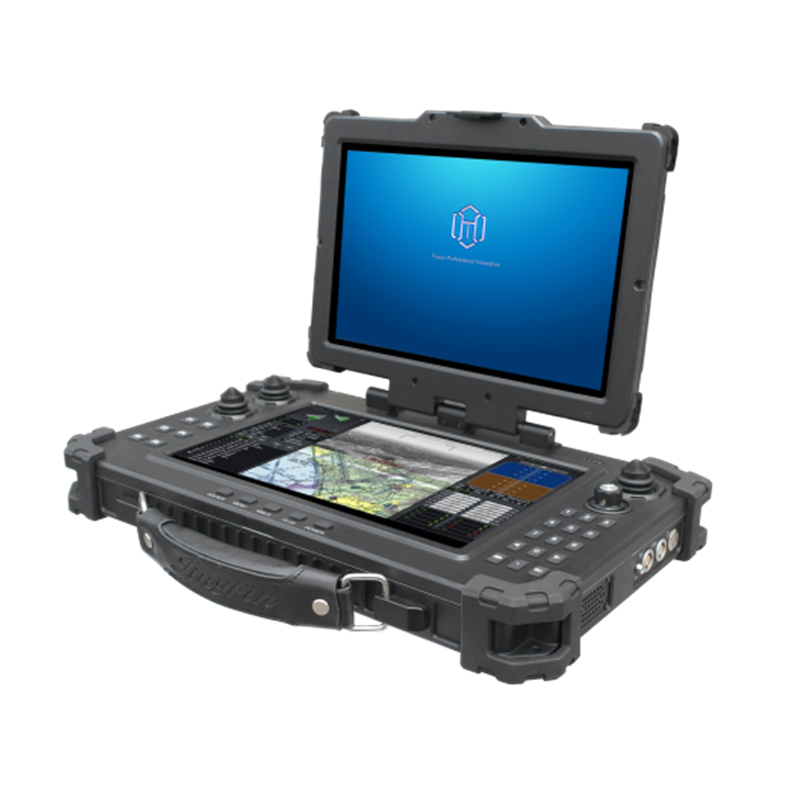

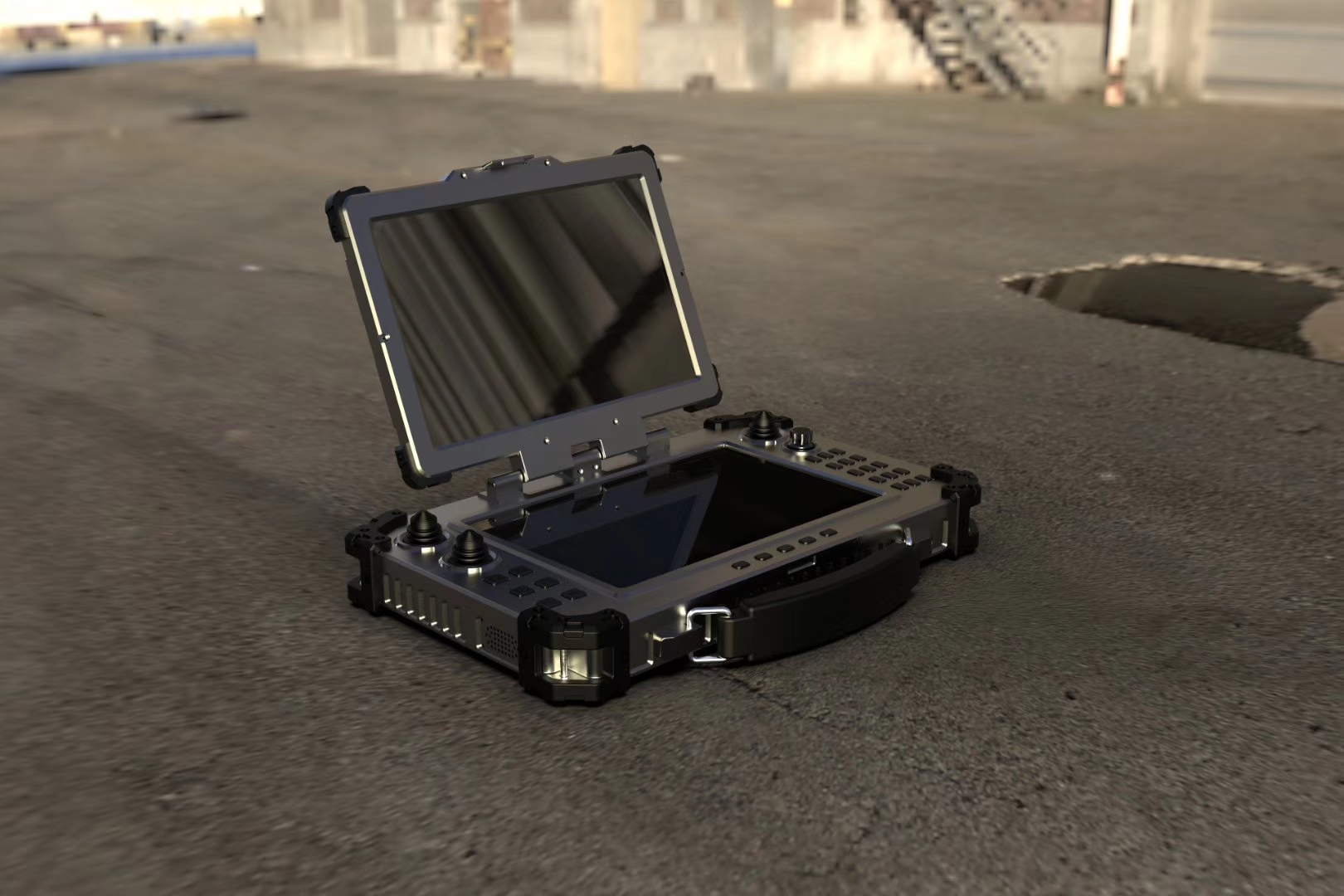

FD7000 Drone Ground Control Stations from dragon fly tech, and dragon fly is a leading portable GCS manufacturer suppling professional, drone ground control stations (GCS) for unmanned aerial vehicles (UAV), and unmanned ground vehicles (UGV). Complete drone GCS solutions are compatible with almost any fixed-wing or multirotor UAV and many drone autopilots. it is easy-to-use ground control station platform utilises the HOTAS (Hands On Throttle And Stick) layout, an intuitive set-up used in defense and manned aviation that provides a high degree of flight control and versatility. Smaller UAVs can be operated with a traditional “twin-stick” style transmitter,as used for radio controlled model aircraft. Extending this setup with a laptop or tablet computer, data and video telemetry, and aerials, creates what is effectively a Ground Control Station. A number of suppliers offer a combined system that consists of what looks like a modified transmitter combined with what is usually a touch screen. An internal computer running the GCS software sits behind the screen, along with the video and data links. Larger GCS units are also available that typically fit inside flight cases.  As with the smaller units, they feature an internal computer running the GCS software, along with video and data links. Large single or dual screens are also fitted that can be high-brightness or treated with an anti-glare coating to increase visibility in bright sunlight. They can either be placed on the ground, on a portable table, or feature integrated folding legs.[8] Some portable GCS units are in the HOTAS (Hands On Throttle And Stick) layout. This layout includes a 3-Axis Joystick to control yaw, pitch and roll of the UAV. A slide or t-bar fader can increase or decrease the airspeed of the UAV.

Based on Intel I7 7500U 2.70GHZ processor 8G DDR4 memory, 256G hard drive, dual screen highlight, 3 two-shaft rockers, 1 knob, custom button, extensible bottom warehouse, full support for Windows 7 /Linux system

Features

The Intel I7 7500U 2.70GHZ processor

10.1 " FHD TFT  LCD

1,280 * 800 resolution

10 Point Capacitive touch screen

256G SSD

8G DDR4 of memory

Magnesium aluminum alloy material, surface paint

Specifications

System

Processor: Intel I 7-7500U
Li-ion battery: 6Hrsinnomar
Memory: DDR48G
Disk: 256G

LCD

Type: 2*10.1"FHD TFT LCD
Resolution: 1280*800
Max-Color: 16M
Display areas: 216.96*135.6mm
Luminance:  800nits

TouchScreen

Above screen: Resistive touchscreen(optional)
Under screen: Capacitive touchscreen

Keys

Screen adjustment button: Brightness/signal
Custom keys:8
Digital keys: 1
Twisting words switch: 4
Knobs: 1
Two-aix s rocker: 3

I/O

LAN: 1*Realtek 100/1000MbpsRj 45
USB: 2*USB 3.0/2*USB 3.0
AUDIO: I/OHDMI
DC-IN: DC19V
SMA: 2
WIFI: 2

Environments

Operation temperature: -10℃-50℃
Storage temperature: -20℃-60℃
Humidity: 20%~80%@40C(no-con dening)
Vibration: 50~500Hz.1.5G.0.15mm
Shock: 10G(11ms)

Material

Front Pane: Maan e sium aluminum all ov material surface pe
Color: Black
Diamision: 366*226*61.04mm
weight: 3.8KG

Other

Horn: 2
Expansion warehouse: optional

OS

Windows 7/Linux system
