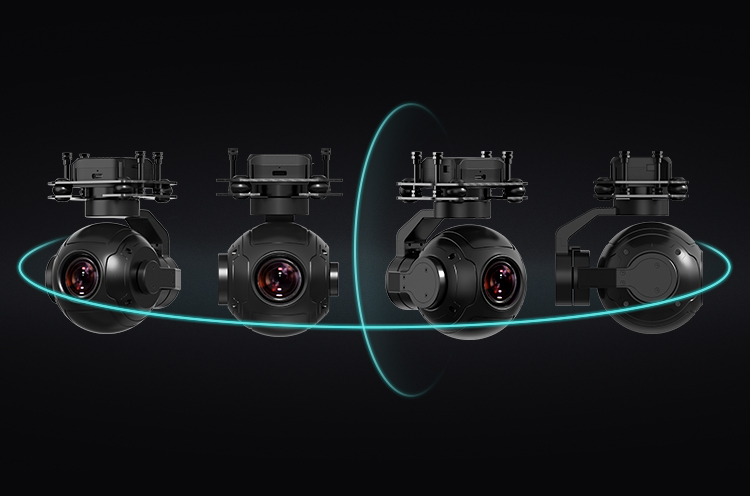

  • FD-ZR10 2K 4MP 10X Zoom Gimbal Camera with 2560×1440 HDR QHD Hybrid Night Vision 3-Axis Stabilizer Lightweight for Drone Mapping Suvery Inspection
FD-ZR10 2K 4MP 10X Zoom Gimbal Camera with 2560×1440 HDR QHD Hybrid Night Vision 3-Axis Stabilizer Lightweight for Drone Mapping Suvery Inspection

FD-ZR10 2K 4MP 10X Zoom Gimbal Camera with 2560×1440 HDR QHD Hybrid Night Vision 3-Axis Stabilizer Lightweight for Drone Mapping Suvery Inspection

  • Product description: FD-ZR10 2K 4MP 10X Zoom Gimbal Camera with 2560×1440 HDR Night Vision 3-Axis Stabilizer Lightweight for Drone Mapping Suvery Inspection
  • INQUIRY

2K 4MP Zoom Gimbal Camera with 2560×1440 HDR Night Vision 3-Axis Stabilizer Lightweight for Drone Mapping Suvery Inspection

Technical Specifications

Model: ZR10

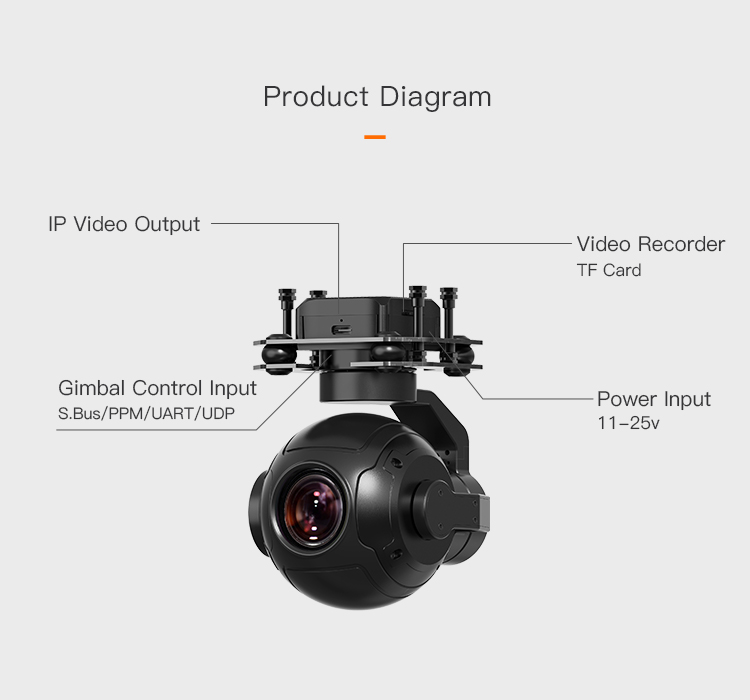

Video Output Port: Ethernet

Control Signal Input Port: S.Bus / PPM / UART / UDP

Power Consumption: 5 W

Dimension: 121*101*78 mm

Weight: 381 g

Waterproof Level: IP53

Angular Vibration Range: ±0.01°

Working Voltage: 11 ~ 25.2 V

Working Temperature: -10 ~ 50 ℃

Camera

Lens: 10X Optical Zoom, 3X Digital Zoom

Focal Length: 5.15±5% ~ 47.38±5% mm

Aperture: F1.8 ~ F2.5

Focus: 0.2 m to ∞

FOV: Diagonal 79.5°, Horizontal 71.5°

CMOS: 1/2.7”, 4 MP

TF Recording Resolution: 2560*1440 @ 30 fps

Video Storage Bitrate: 12 Mbps

File Storage Format: FAT32

Still Photography Mode: Single

Image Format: JPEG

Video Format: MP (Originally recorded in H.265 file, converted to MP4 file after reboot)

Metering Mode: Evaluative metering

White Balance: Auto

Supported MicroSD Cards: MicroSD Class10 (Max 32GB, will support 128GB by firmware update)
