  • Product description: FlyDragon FD20 drone camera use Laser photometry drone camera with target GPS positioning and guidance functions. lacer range is 8km, Laser indication 4km, It adopts a two-axis gyro stabilization plat
  • INQUIRY

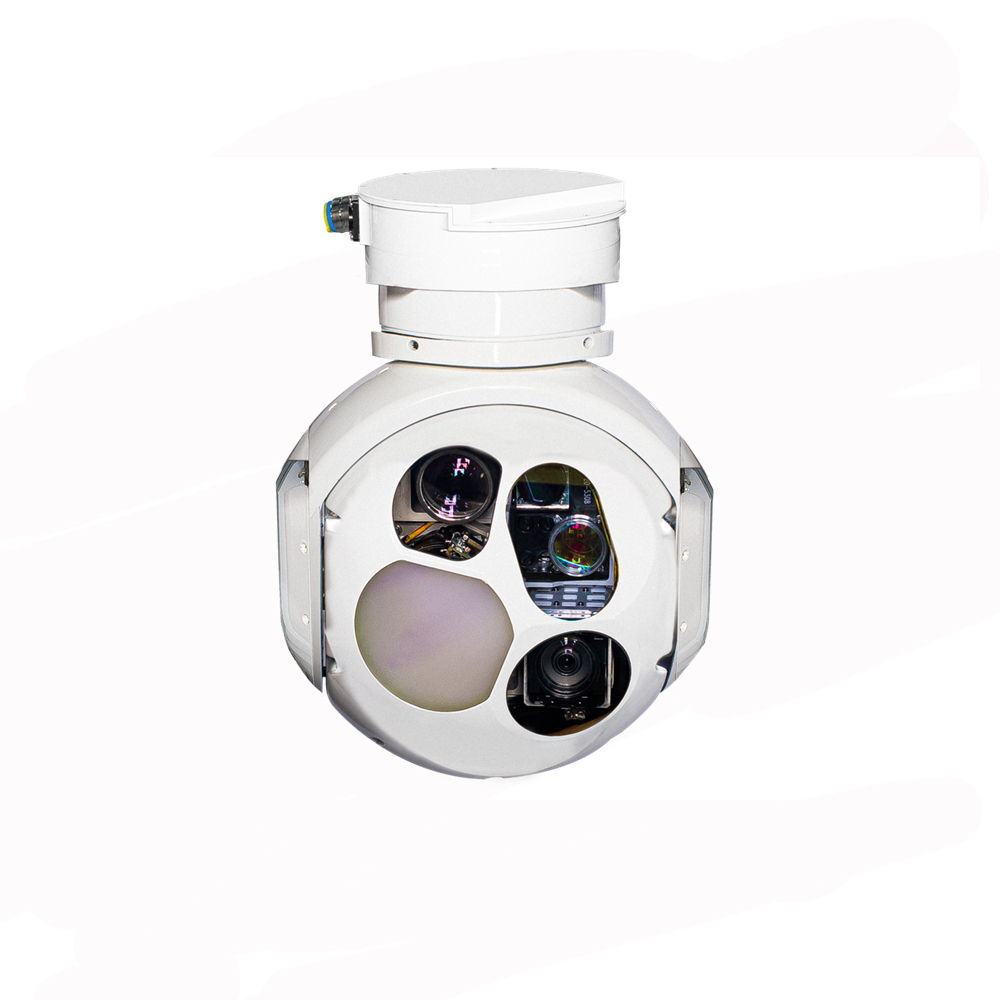

FlyDragon FD20 drone camera use Laser photometry drone camera with target GPS positioning and guidance functions. lacer range is 8km, Laser indication 4km, It adopts a two-axis gyro stabilization platform, installs conductive slip rings to achieve 360° continuous rotation, it can detection 2.3 m*2.3 m away from 8km, recognition distance is 5km, FD20 laser measuring camera meets military standards, meets the requirements of inspection and shooting, and can provide instructions for the laser terminal guidance system


Specifications

visible light imaging

Working wavelength: 0.4um~0.9pm
Detector: 1920x1080
Focal length and horizontal field of view: 10mm-159mm continuous zoom; 35°~2.3°
Detection distance: 8km; recognition distance: 5km
Detection conditions: target 4mx6m (vehicle), ground visibility not less than 15km, relative humidity not greater than 70%.

Infrared imaging

Continuous Zoom Medium Wave Cooling
Working wavelength: 3~5um
Detector: 15um; 15-330mm/F4.0; 640×512
Horizontal field of view: 35.5°x28.7°~1.8°x1.5°
Detection distance: ≥8km; recognition distance: ≥5km

Fixed focus near infrared

Working wavelength: 0.7uim~0.9pm
Detector: 3.45um; 180mm/F4.3; 1920x1080;
Horizontal field of view: 2°
Detection distance: ≥9km; recognition distance: ≥6km

Infrared imaging detection conditions

The target is 4mx6m, the ground visibility is not less than 15km, the relative humidity is not more than 70%, and the target background temperature difference is 3~5K

Laser target designator

Working wavelength: 1064nm
Laser energy: ≥60mJ
Ranging performance range: 300m~8km; accuracy: ±5m
Irradiation distance: ≥4km
Irradiation accuracy: TV channel: ≤0.15mrad; infrared channel: ≤0.18mrad(1o)

Gimbal performance

Rotation range
Azimuth: 360° continuous; Pitch: +20°~-110°
angular velocity
Pitch maximum angular velocity: ≥40°/s; azimuth maximum angular velocity: ≥60°/s
Line of sight stabilization accuracy: ≤35urad(1o)
Weight: ≤21Kg

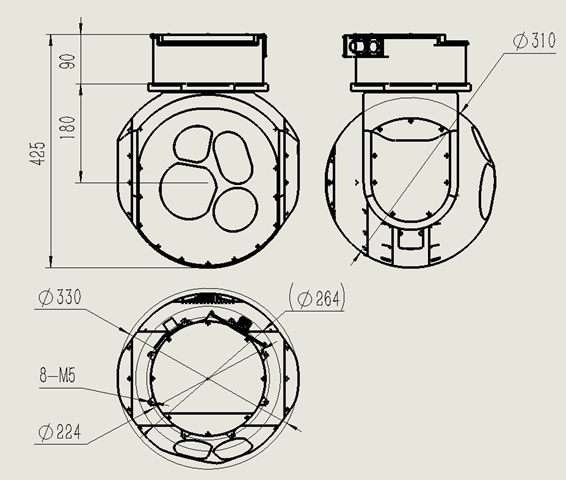

Size: ≤ Φ330mmx415mm
Power supply: DC28V, the voltage range is 18V~30V
Power consumption: average power consumption ≤ 300W, peak power consumption ≤ 600W

Flight Envelope

Speed: 0km/h~400km/h;
Altitude: 0km~12km
Maximum overload: 3.75G

Interface

Communication interface: 1 channel RS422 (TTL optional)
Video interface: 2-way HD-SDI (optional network port, HDMI)

Temperature

Working temperature: -40°C~60°C: Storage temperature: -55°C~+85°C
