  • Product description: FlyDragon FDAD-10L(4X)-W 4 axis 10L agriculture drone is the upgrade version. Compared with the E410S, the biggest differences of it is integration. The structure of the FDAD-10L(4X)-W’s fuselage has
  • INQUIRY

FDAD-10L(4X)-W 4 Axis 10L 10KG Capacity uav agriculture Spraying Drone Farm Drone Frame Kit

FlyDragon FDAD-10L(4X)-W 4 axis 10L agriculture drone is the upgrade version. Compared with the E410S, the biggest differences of it is integration. The structure of the FDAD-10L(4X)-W’s fuselage has been improved. The body is different from the original carbon structure, and the improved product is processed by plastic injection molding.

The FDAD-10L(4X)-W Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new FDAD-10L(4X)-W series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.

The force-bearing structure of the fuselage adopts a double fixing method of clamping and limiting at many key points, so that the entire fuselage will not cause structural displacement due to long-term use, and it also makes installation and positioning easier.

There reserved a detachable camera installation parts in front of the fuselage, which can be installed or closed according to own needs.

The power distribution board in the center of the fuselage integrates all power supply plugs to separate the power supply from the signal and minimize interference

The new product continues the classic foldable body design, using threaded locking and folding parts, which are stable and not loose, and the volume is small after folding, which is convenient for transportation and transition.

Please note this is just for frame KIT,  Do not include any electronic parts.



Description
wheelbase 1416MM
Unfolded size 1780*1780*567MM
Folded size 700*799*567MM
Tank capacity 10L
Frame weight 6KGS
Frame and spraying weight 6.8KGS
Frame and motor sets weight 12KGS
No-load takeoff weight 17KGS(including 12 1*16000mAh battery 4.7KGS)
Full load Take-off weight 27KGS
Nozzle Ceramic sprinkler head imported from Germany/China
Number os nozzles 4pcs
Flight Speed 3-8 Meter /Sec
Spray width 3-6 Meter /Sec
Max spraying flow 1.5-3 kg/min. (Max. 4kg/min.)
spaying efficiency 1.5-3 Acres/Min.
Water Pump Pressure 0.48mPa
Delivery package size Aluminum Box  860*800*650mm  25kg
Transport volume weight 89kg
The fuselage material Carbon fiber composite
Max flight time (no load) 10-15min
Max flight time (full load) 8-10min
The tank volume 6L
Working temperature work   -15°C~45°C
Signal effective range 5km
Flight Control systems Boying
Dynamic System Hobbywing X8,Pipe: 40mm
Spraying System High Pressure Spray
The battery specification 12S8000mah*1PCS
work power 44.4V(12S)
Charging Time 0.5-1hour
Recharge Cycles 300-500 times
Daily efficiency(6hours) 300-500acres
Storage ambient temperature For less than 3 months: – 20 ° C ~ 45 ° C
For more than 3 months: – 22 ° C ~ 28 ° C
Hover time 15min(take-off weight 16kg)
8min(takeoff weight: 26kg)
Standby time of remote control 8hrs
Function
1. Android ground station, easy to use / PC ground station, full voice broadcast
2. Router Setting support, Fully Auto Flight operation with A,B Point operation.
3. One Button take-off and landing, More safety and time saving.
4. Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery.
5. Liquid Detection, Break Point record setting.
6. Battery Detection, Low Battery return and Record point setting available.
7. Terrain following Radar, Stable Altitude setting
8. Vibration Protection, Lost Contact protective, Tank empty detect
9. Motor Sequance Detection and Direction detection Function.
10. Dual Pump Mode
11. The night vision function
12. Three anti – one lamp
Main feature
1. Crossfolding Method ,The arms of the FDAD-10L(4X) are folded in a staggered way, minisize the folding size, more convenient for transportation.
2. Integrated Fuselage Frame The fuselage frame of the FDAD-10L(4X)Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the FDAD-10L(4X) has good durability and reliability.
3. Quick Release Battery & Tank The water tank of the FDAD-10L(4X)adopts plug-in design, and the battery can be placed vertically in the battery compartment.The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the FDAD-10L(4X) drone. It is convenient to replace the tank and battery.
4. Dustproof and Waterproof The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.
5. Great Expandability The radar, fpv camera, pump and some other parts can install on the drone.

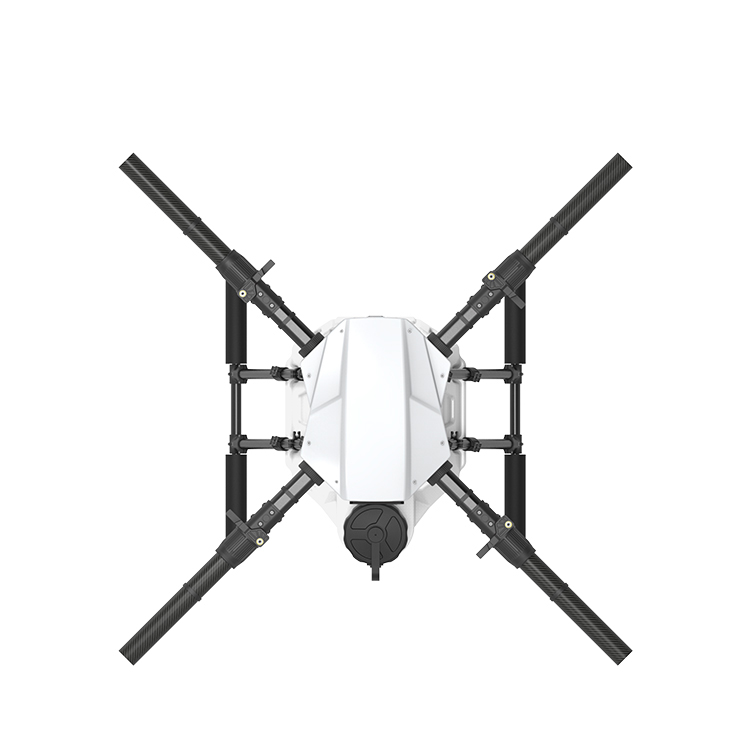

Below is the picture of the frame KIT.
