Drone Gimbal Camera

  • FDC640 2-axis 30X Dual Drone Gimbal day&night IR Camera
  • FDC640 2-axis 30X Dual Drone Gimbal day&night IR Camera
FDC640 2-axis 30X Dual Drone Gimbal day&night IR CameraFDC640 2-axis 30X Dual Drone Gimbal day&night IR Camera

FDC640 2-axis 30X Dual Drone Gimbal day&night IR Camera

  • Product description: Flydragon FDC640 2-axis 30X Dual Drone Gimbal day&night IR Camera is 30x zoom thermal imaging drone camera with two-axis stabilization can maintain the stability of the picture under the condition of
  • INQUIRY

Flydragon FDC640 2-axis 30X Dual Drone Gimbal day&night IR Camera is 30x zoom thermal imaging drone camera with two-axis stabilization can maintain the stability of the picture under the condition of maximum focal length and fast flight motion. Adopt 640 x 480 pixel infrared camera. Support ground station point to zoom, one-key return, mouse or touch screen to operate the pod, easy to control. FDC640 can be used for multi-rotor drone and fixed-wing drone for drone inspection, sureceillance, monitor, rescue etc.

Product parameters

The overall parameter.

The product name.

FDC640 30X dual-light zoom

Operating voltage.

12V-25V.

Power.

8.4W.

Weight.

720g.

The type of memory card.

Micro SD card (single card).

Dimensions (length, width)

168 x 120 x 120mm.

The type of interface.

The outlet.

Control how it is displayed.

Windows System PC;

Real-time transmission resolution.

Thermal imaging:704 x 576 Visible Light:720P,1080P.

Environment parameters.

Operating temperature.

-20°~60.°

Store the temperature.

-20°~70.°

The head parameter.

The amount of angle jitter.

±0.008°

How to install it.

Removable.

Control the rotation range.

Pitch:s20to -120degrees;

The scope of the structural design.

Pitch:from .10to -190degrees;

Maximum control speed.

Pitch:120o/s; The course 180o/s .

Smart target tracking.

Support.

Camera parameters.

Visible light.

Sensor.

CMOS: 1/2.8";; 2.3 million total pixels.

Lens.

30x optical zoom lens.

F: 4.7 to 141mm.

Minimum shooting distance: 1m to 1.5m (near-focus ~ far-out focus).)

Field of view ( 61 to 2.3.°

The image storage format.

Jpeg.

Video storage format.

MP4.

Working mode.

; . Photo.;

Through the fog.

Electronic fog.

Exposure mode.

Auto-exposure.

Resolution.

1920*1080

2D noise reduction .

Support (auto-on)

3D noise reduction .

Support (auto-on)

Electronic shutter.

1/3 to 1/30000 seconds.

Exposure.

Automatic mode;

Information Video Overlay(OSD)

Support.

Pointing zoom.

Support.

Pointing zoom range.

1 to 30 times optics.

Zoom to a single-click image with one click.

Support.





Thermal imaging.

Detector performance.

The probe type.

Uncooled infrared micro-measured radiation heat meter.

Resolution.

640*480

Sensitivity.

60mk@300k . . .

Frame rate.

50Hz.

Optical performance.

Lens.

25mm fixed focus head.

Number of Fs.

1.0

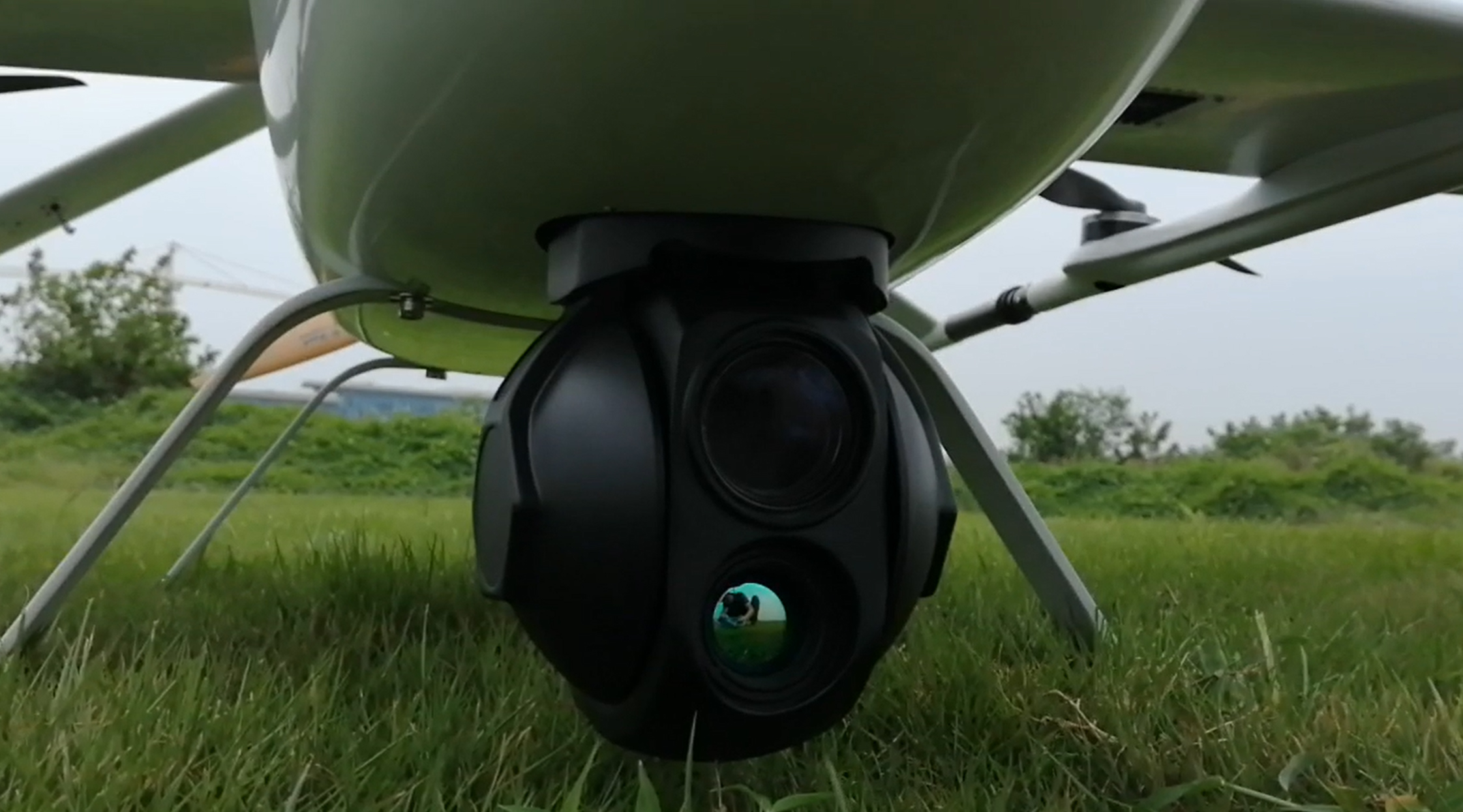

FDC640 2-axis 30X Dual Drone Gimbal day&night IR Camera  for vtol fixed-wing drone

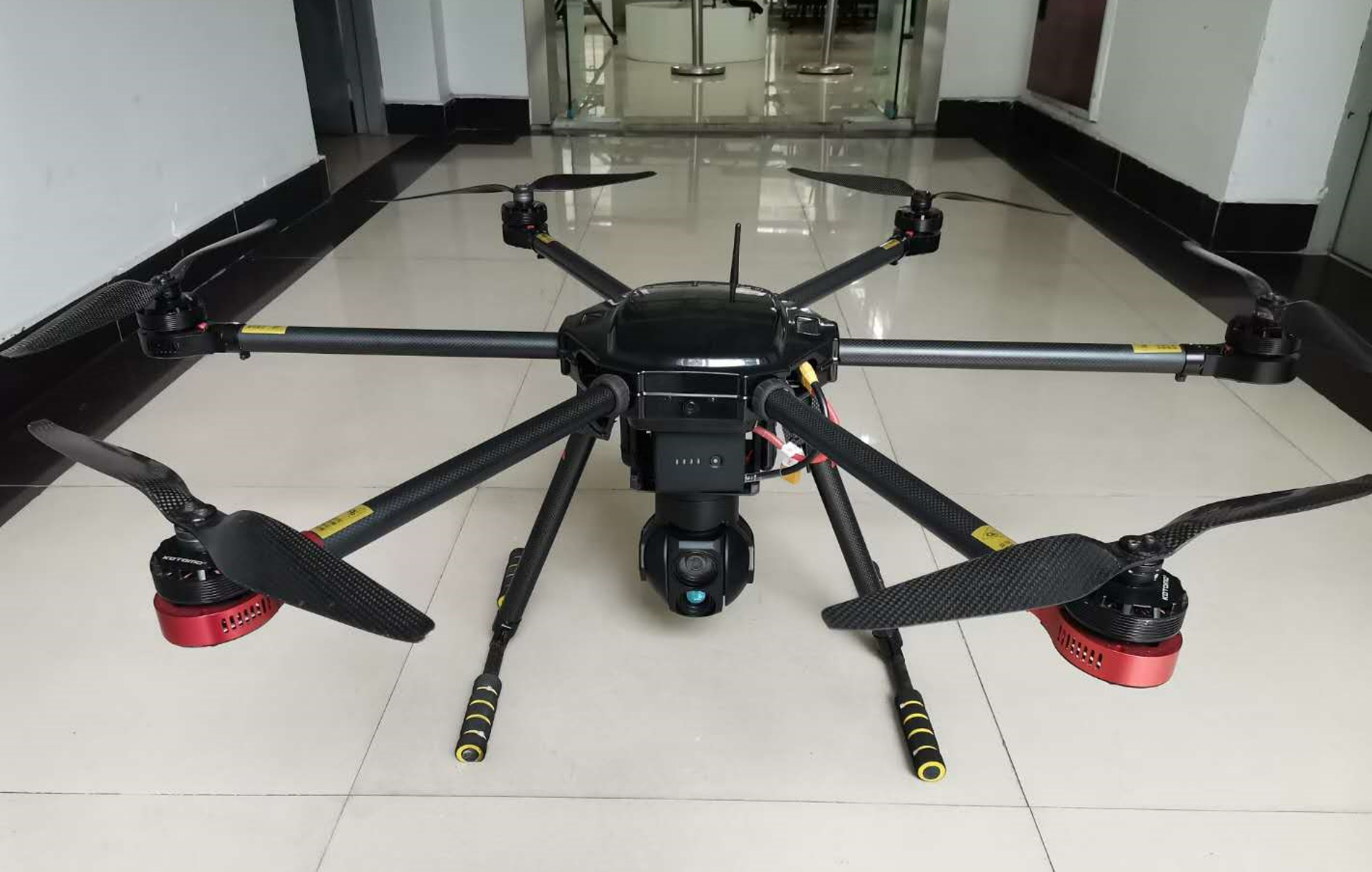

FDC640 2-axis 30X Dual Drone Gimbal day&night IR Camera  for multi-rotor

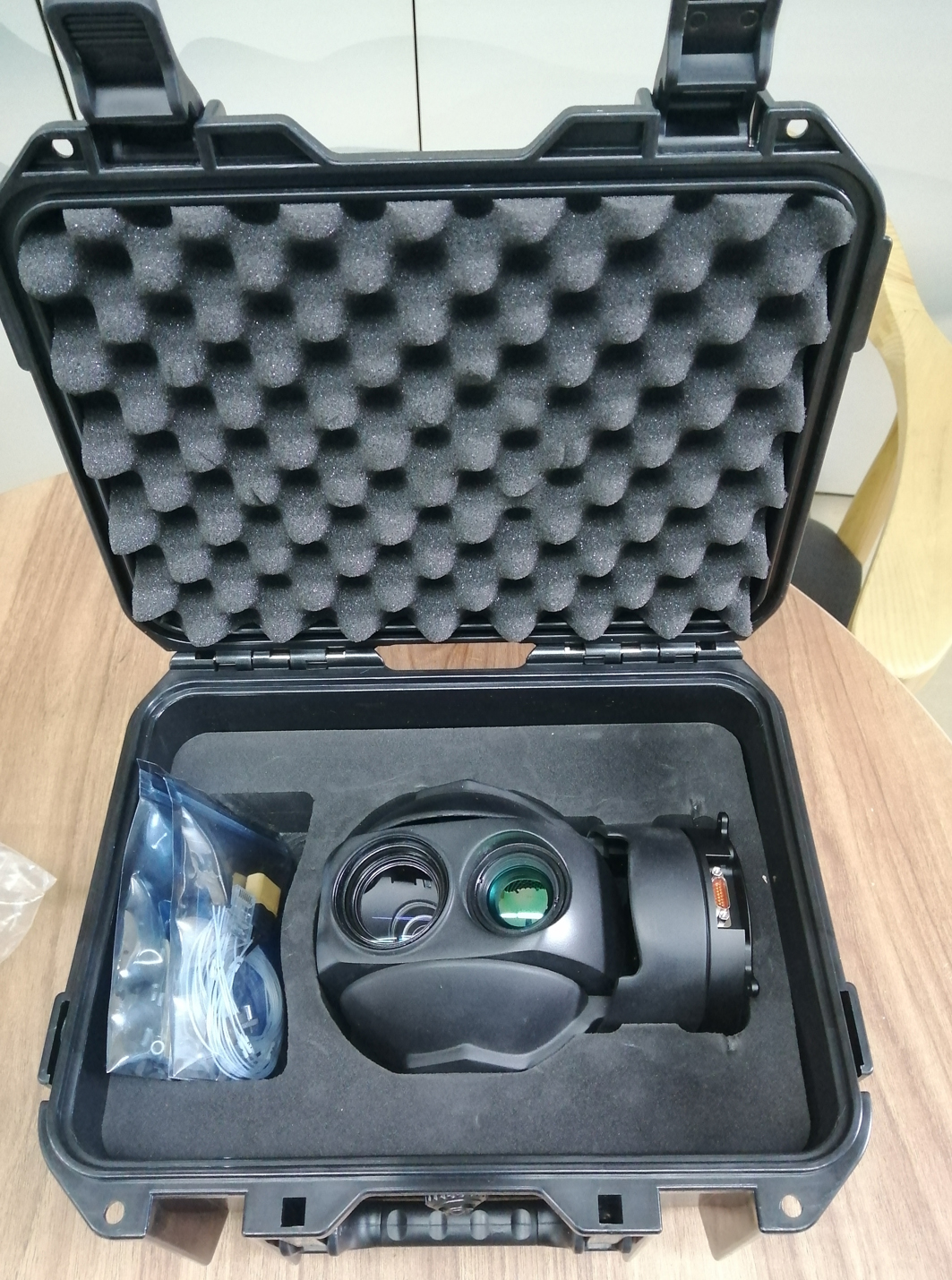

FDC640 drone camera packing
