Ship and Tank Derusting Robot

  • RPP-MW-B1 Ship Derusting Robot

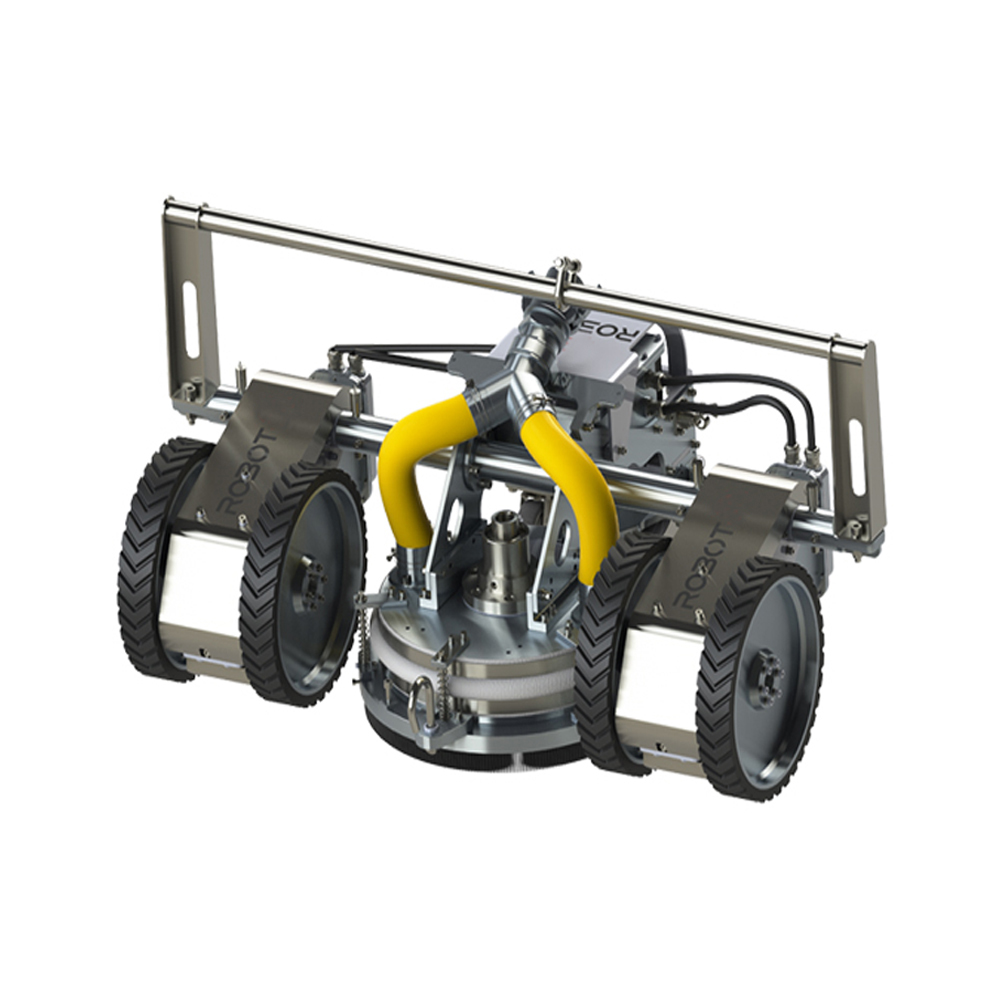

RPP-MW-B1 Ship Derusting Robot

RPP-MW-B1 Ship Derusting Robot

  • Product description: RPP-MW-B1 model ship derusting robot using hydro blasting technique, Both spot and continuous blasting are available with the same robot, Combining ultra-high pressure water jetting for hull and cargo
  • INQUIRY

RPP-MW-B1 Ship Derusting Robot

RPP-MW-B1 Ship Derusting Robot

RPP-MW-B1 model ship derusting robot using hydro blasting technique, Both spot and continuous blasting are available with the same robot, Combining ultra-high pressure water jetting for hull and cargo hold cleaning and derusting and the vacuum recovery tray for 100% wastewater recycling, can effortlessly perform cleaning and derusting operations on hull, deck and cargo hold, regardless of surfaces - vertical, inclined or curved.

Specification

Model: RPP-MW-B1

Size: 786 mm (L) X 1154 mm (W)X 550 mm (H)

Weight: 90 kg

Power: 1.2 Kw

Obstacle crossing: ≤15 mm

Max. speed: 8 m/min

Cleaning width: 300 mm

Power: supply AC 220 V

Min. curvature radius: 10

Level of protection: IP65

Derusting efficiency:

16 - 50 m²/h (Efficiency varies with operator proficiency, coating type, and water pressure)

Cleanliness: Wa 2.5

Accessories:

UHP pump:Pressure: 2500-2800Bar

Flow rate: >38 L/min

Recycling pump:Vacuum: >0.04Mp

Product features

1

High performance with 100% wastewater recycling

Wastewater recovery vacuum pressure: 0.04 MPa.

2

Strong adhesion and large payload

Payload capacity is 135 Kg and load weight ratio is up to 1.5:1, satisfying demands for most scenarios.

3

Strong curvature and obstacle crossing adaptability

Workable on surfaces with a radius of curvature of 1 m; height  of obstacles the robot can cross is up to 15 mm.

4

Detachable modular design

Units of the robot are modularized and can be assembled in half an hour.

5

Incredible performance and maneuverability

Differential drive, 360° rotation, movement in any direction and remote control.

6

Safety and reliability

Permanent magnets, a double fall arrest system, IP 65 for safety and reliability.
