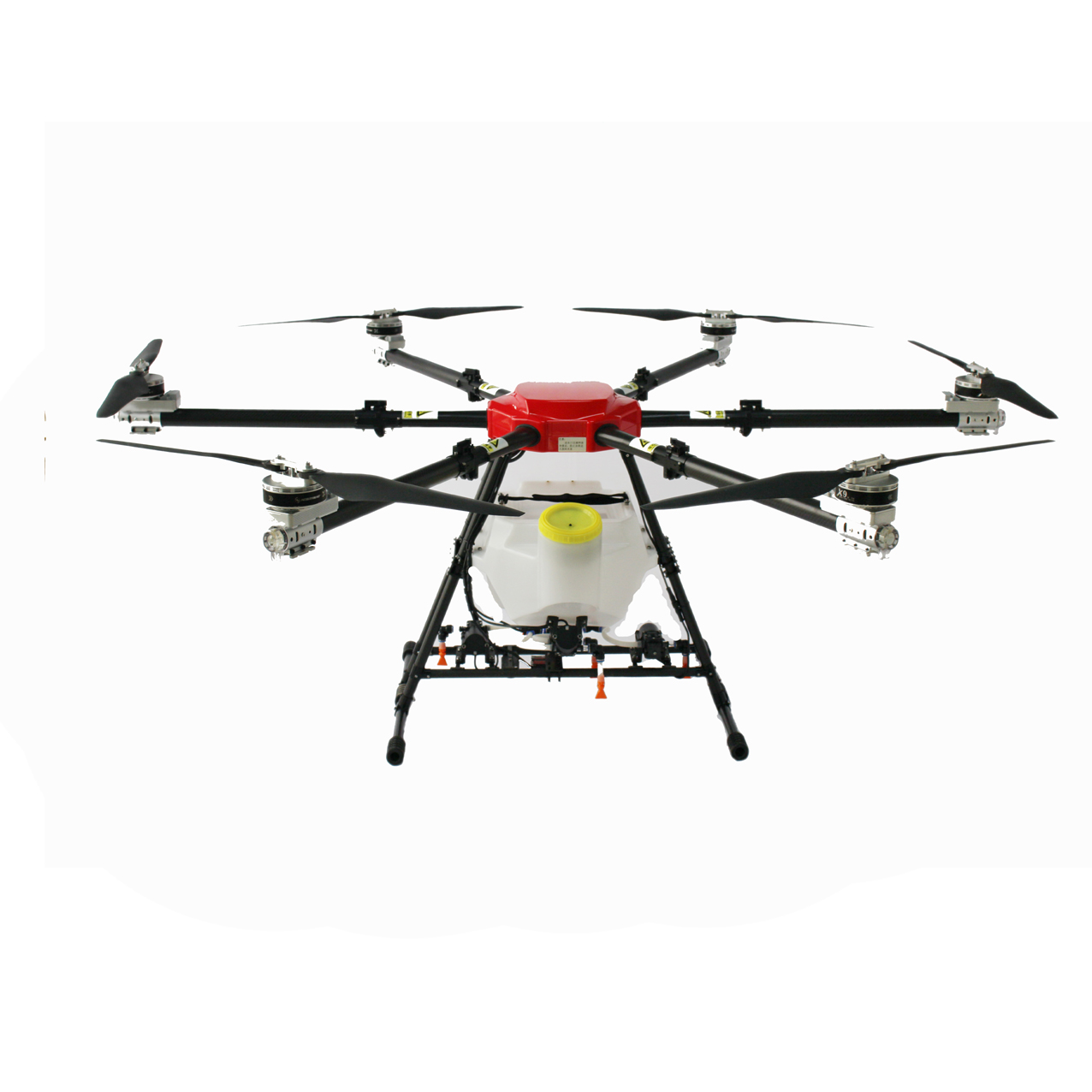

  • 6 rotors 16L plant protection UAV  White agriculture sprayer
6 rotors 16L plant protection UAV  White agriculture sprayer

6 rotors 16L plant protection UAV White agriculture sprayer

  • Model NO.: FDXD-6R-16L
  • LIQUID TANK: 16L
  • Product description: using the new T1 - A Flight Controller, with a Radar Sensing System that provides additional reliability during flight. T1 - A is a mature flight controller for agricultural UAV. It provides rich and
  • INQUIRY

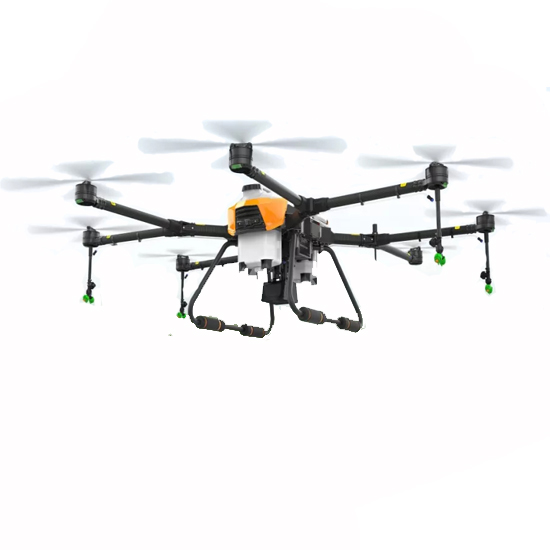

6 rotors plant protection UAV 16KGS agriculture sprayer


Intelligent Agriculture is the trend of all over the world. And the intelligent drone act as a important role in this world plan.

Agriculture spraying drone can replace the traditional pesticide sprayer and it's speed is 40times of the traditional sprayer. It will save 90% water and 30%-40% pesticide. Small droplet diameter make the pesticide more well-distribute and improve the effect. At the same time, it will make the people faraway from the pesticide and reduce the pesticide remain of the crop.



Specification


AIRCRAFT FRAME

Dimensions

1720mm x1720mm x610mmarm unfolded, without propellers
925mmm x925mmm x610mm
arm folded

SPRAY SYSTEM

LIQUID TANK

Volume

16 L

Standard Operating Payload

16 kg

NOZZLE

Model

Germany ceramic nozzleMax 1L/min adjustable

Quantity

6

FLIGHT PARAMETERS

Total Weight

15.5 kg (without battery)

Standard Takeoff Weight

37.5 kg

Max Takeoff Weight

37.5 kg (at sea level)

Max Thrust-Weight Ratio

1.41 (with 37.5 kg takeoff weight)

Power Battery

Battery (6S 22000mAh 25C 6S1P )

Max Power Consumption

15774 W

Hovering Time*

21 min@22000 mAh & 16 kg takeoff weight
10 min
@22000 mAh & 37.5 kg takeoff weight
*Hovering time acquired at sea level, with wind speeds lower than 3m/s.

Max Operating Speed

8 m/s

Max Flying Speed

10 m/s

Max Service Ceiling Above Sea Level

2000 m

Recommended Operating Temperature

0 to 40

REMOTE CONTROLLER

Model

XT32

Operating Frequency

2.400 GHz to 2.483 GHz

Max Transmission Range

3 km (unobstructed, free of interference)

EIRP

≤20 dBm

Built-in Battery

3000 mAh3.7V

Operating Temperature Range

-10 to 40

Storage Temperature Range

Less than 3 months: -20 to 45
More than 3 months: 22 to 28

Charge Temperature Range

5 to 40

RADAR MODULE

Detection Range

1- 5 m

Working Range

1.5 - 3.5 m

Precision

< 10 cm

PROPULSION SYSTEM

MOTOR

Stator Size

81×20 mm

KV

100 rpm/V

Max Thrust

15.3 kg/Axis (48V, Sea Level)

Weight

180g



FDXD-6R-16l using the new T1 - A  Flight Controller, with a Radar Sensing System that provides additional reliability during flight. T1 - A is a mature flight controller for agricultural UAV. It provides rich and practical function that can meet the multiple requirements of the current agricultural UAV. By the integration of high precision sensor, the application of advanced industrial precision calibration algorithm as well as reasonable intelligent operation mode, the more efficient, accurate and convenient way of plant protection work can be realized.
