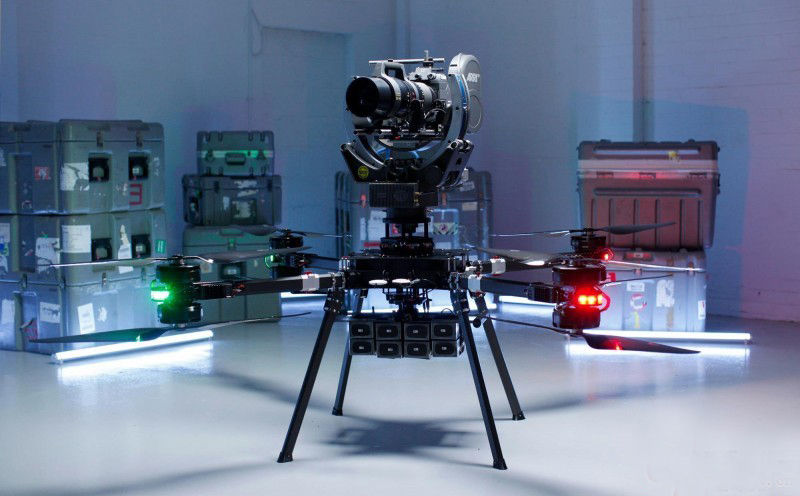

Flying Pictures launches the world's most powerful aerial drone


The aerial photography company Flying Pictures designed and manufactured a "super" drone and called it "the most powerful photography drone in the world."

The main difference of Ultra is that it is a drone designed specifically to hang the heaviest camera and lens bag on the market today.

Its maximum load capacity reaches 60 kg/132 lbs. Flying Pictures said that they used 10 years of experience in manufacturing and flying different types of drones in complex environments and combined them to achieve today's results.

This drone is domestically manufactured and has been evaluated by the Civil Aviation Administration and allowed to fly in densely populated areas. The top speed of this drone can reach 56 km +/105 km/h, and, according to Flying Pictures, it is "the safest that a drone can do."

Flying Pictures director Matt Conner said: "This kind of drone will take the quality and scope of film production a big step forward.

Drone parachute 10-100KG load capacity keep you drone and equipment safe


Drone parachute is the  safety system on the market for commercial drones. Drone parachute system protects by standers on the ground, prevents loss of payload and safeguards your drone equipment by ensuring your drone always lands safely. Drone parachute system solutions are designed to comply with the future regulation that enables safe flight operations over populated areas and beyond visual line of sight. Providing the Drone Industry with the Technology to Realize its Full Potential , We believe that smart safety technologies are pivotal in ensuring that drones can operate unrestricted to explore their full economic potential while minimizing the risks associated with operating drones over populated areas. Drone parachute system develops and provides state-of-the-art drone safety solutions that fuel the growth of the booming drone economy. Drone parachute system applies real-time data analytics to identify and mitigate flight risks autonomously and increase safety for bystanders while protecting the loss of expensive drones, equipment, and payloads.

Specification

DPS10-10KG DPS20-20KG DPS30-30KG DPS40-40KG DPS50-50KG
Installation size(mm) 82*82 116*116 116*116 116*116 145*145
Equipment size(mm) Φ104/H100 Φ104/H150 Φ104/H165 Φ104/H180 Φ104/H210
Max Load 10KG 20KG 30KG 40KG 50KG
Interface 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN
Parachute diameter 2000mm 3000mm 3500mm 4000mm 4400mm
Supply voltage 5V 5V 5V 5V 5V
Cell capacity 380mAh 380mAh 380mAh 380mAh 380mAh
Gesture perception range ±90° ±90° ±90° ±90° ±90°
Trigger angle ±80° ±80° ±80° ±80° ±80°
Fall trigger 0.5g/1.6s 0.5g/1.6s 0.5g/1.6s 0.5g/1.6s 0.5g/1.6s
operating hours 8h 8h 8h 8h 8h
Trigger method Attitude /
fall /
digital serial port
Attitude /
fall /
digital serial port
Attitude /
fall /
digital serial port
Attitude /
fall /
digital serial port
Attitude /
fall /
digital serial port
data communication TTL TTL TTL TTL TTL
PWM  pulse width 1750-2000 1750-2000 1750-2000 1750-2000 1750-2000
Power off 10s 10s 10s 10s 10s
Wake up Yes Yes Yes Yes Yes
Ejection method Propellant Propellant Propellant Propellant Propellant
Umbrella rope fixing method Built-in External transfer External transfer External transfer External transfer
Weight 380g 550g 650g 780g 850g
Refresh rate 100Hz 100Hz 100Hz 100Hz 100Hz
Minimum open umbrella height 20m 30m 36m 40m 50m
Operating temperature *-10℃—-45℃ *-10℃—-45℃ *-10℃—-45℃ *-10℃—-45℃ *-10℃—-45℃


DPS60-60KG DPS70-70KG DPS80-80KG DPS90-90KG DPS100-100KG
Installation size(mm) 145*145 145*145 145*145 145*145 200*200
Equipment size(mm) Φ130/H185 Φ130/H200 Φ130/H230 Φ130/H240 Φ180/H240
Max Load 60KG 70KG 80KG 90KG 100KG
Interface 5 PIN 5 PIN 5 PIN 5 PIN 5 PIN
Parachute diameter 4500mm 5000mm 5200mm 5500mm 6500mm
Supply voltage 5V 5V 5V 5V 5V
Cell capacity 650mAh 650mAh 650mAh 650mAh 650mAh
Gesture perception range ±90° ±90° ±90° ±90° ±90°
Trigger angle ±80° ±80° ±80° ±80° ±80°
Fall trigger 0.5g/1.6s 0.5g/1.6s 0.5g/1.6s 0.5g/1.6s 0.5g/1.6s
operating hours 12h 12h 12h 12h 12h
Trigger method Attitude /
fall /
digital serial port
Attitude /
fall /
digital serial port
Attitude /
fall /
digital serial port
Attitude /
fall /
digital serial port
Attitude /
fall /
digital serial port
data communication TTL TTL TTL TTL TTL
PWM  pulse width 1750-2000 1750-2000 1750-2000 1750-2000 1750-2000
Power off 10s 10s 10s 10s 10s
Wake up Yes Yes Yes Yes Yes
Ejection method Propellant Propellant Propellant Propellant Propellant
Umbrella rope fixing method External transfer External transfer External transfer External transfer External transfer
Weight 950g 1250g 1450g 2000g 2200g
Refresh rate 100Hz 100Hz 100Hz 100Hz 100Hz
Minimum open umbrella height 65m 75m 80m 85m 85m
Operating temperature *-10℃—-45℃ *-10℃—-45℃ *-10℃—-45℃ *-10℃—-45℃ *-10℃—-45℃
