Mako shark 6 hours long endurance electric VTOL for mapping and surveillance

Mako shark electric VTOL

FlyDragon UAV aviation technology Co., Ltd., a VTOL drone company headquartered in Chengdu, Sichuan Province, China.Flydragon released a long-endurance electric vtol drone—Mako shark FDG30, in March 2022. The maximum payload of the Mako shark vtol drone is 2 kg, and the endurance is 6 hours with 1.5kg payload. When the drone landing, the remaining battery power is 40%.  FlyDragon UAV  company developed teh Mako shark is aimed at the drone mapping&surveillance and urban security market.

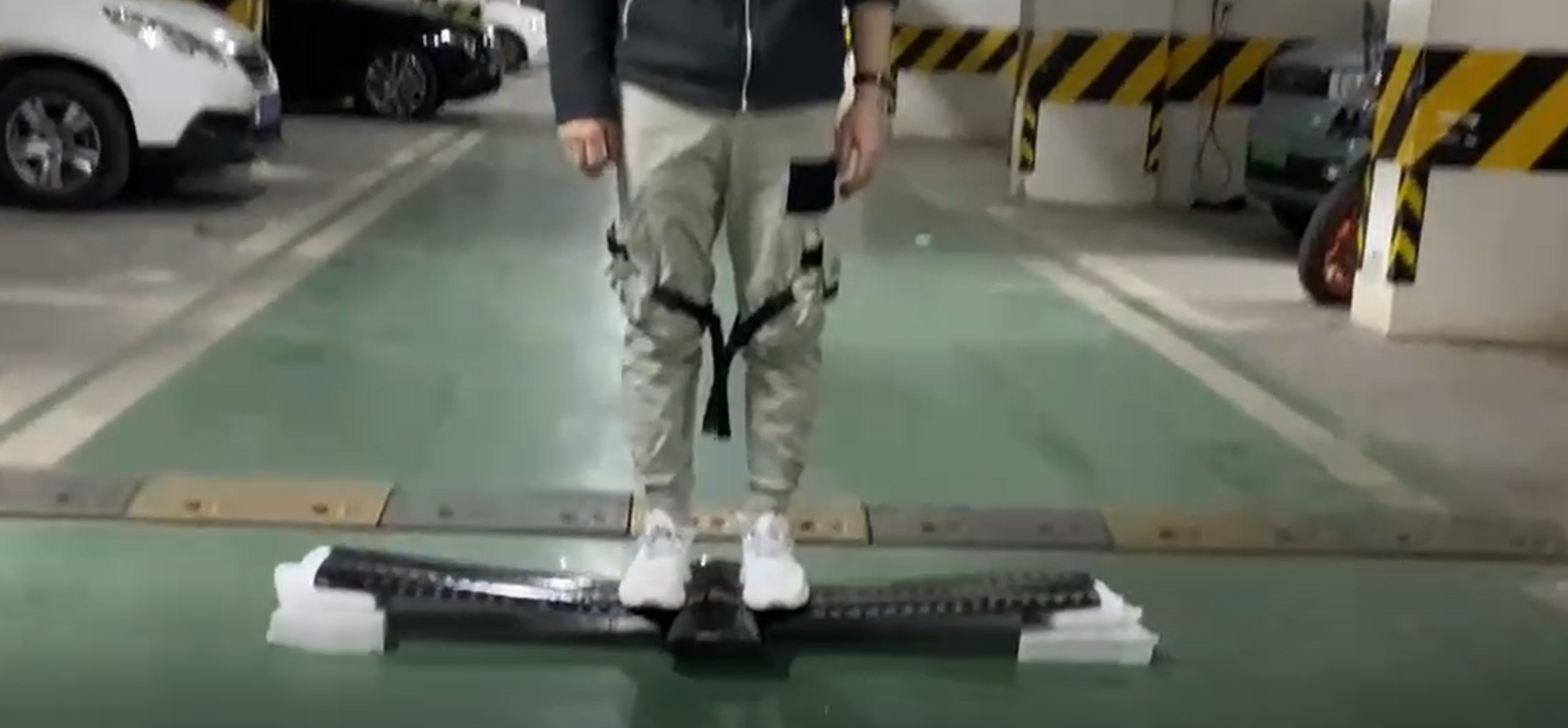

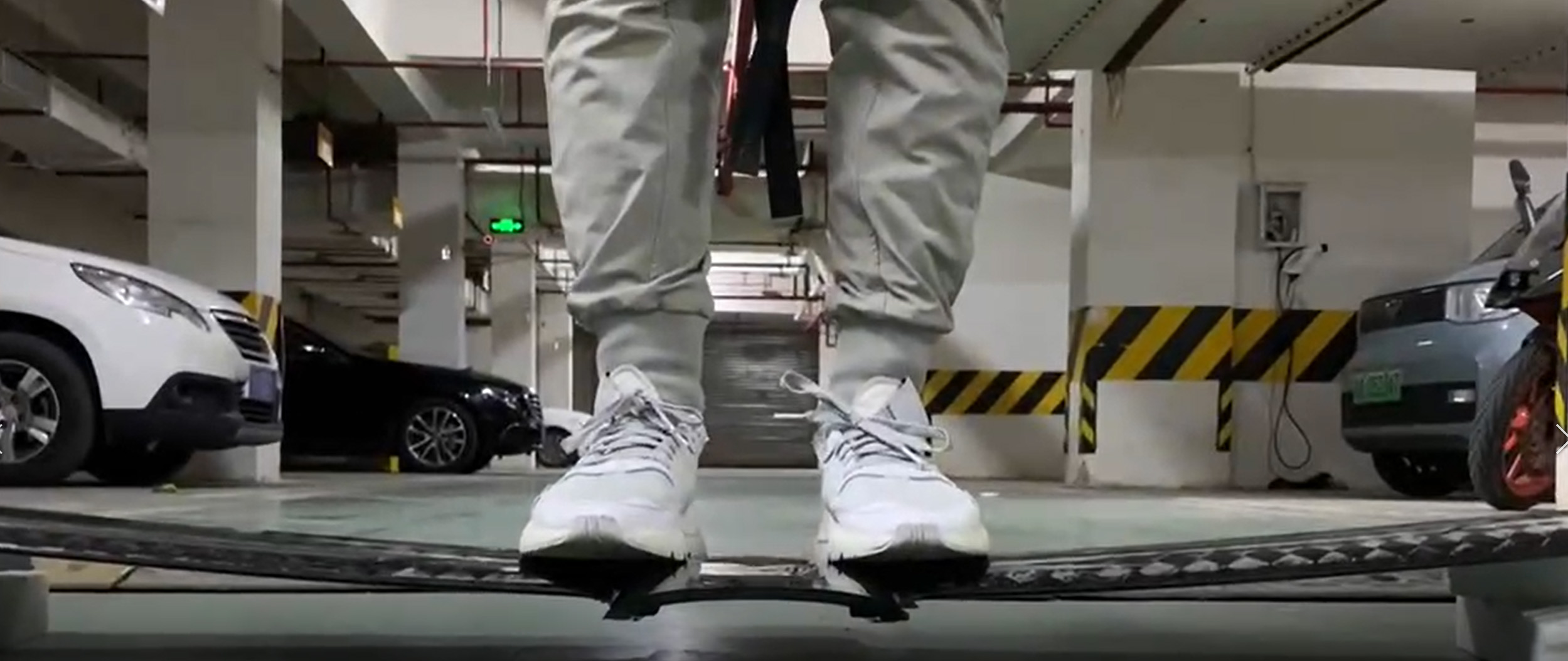

High strength body

Mako shark electric VTOL strength body

The Mako shark electric vtol drone frame is made of carbon fiber material. The droen frame  weight is 6 kg only, and the body strength can withstand the weight of a 60KG adult.

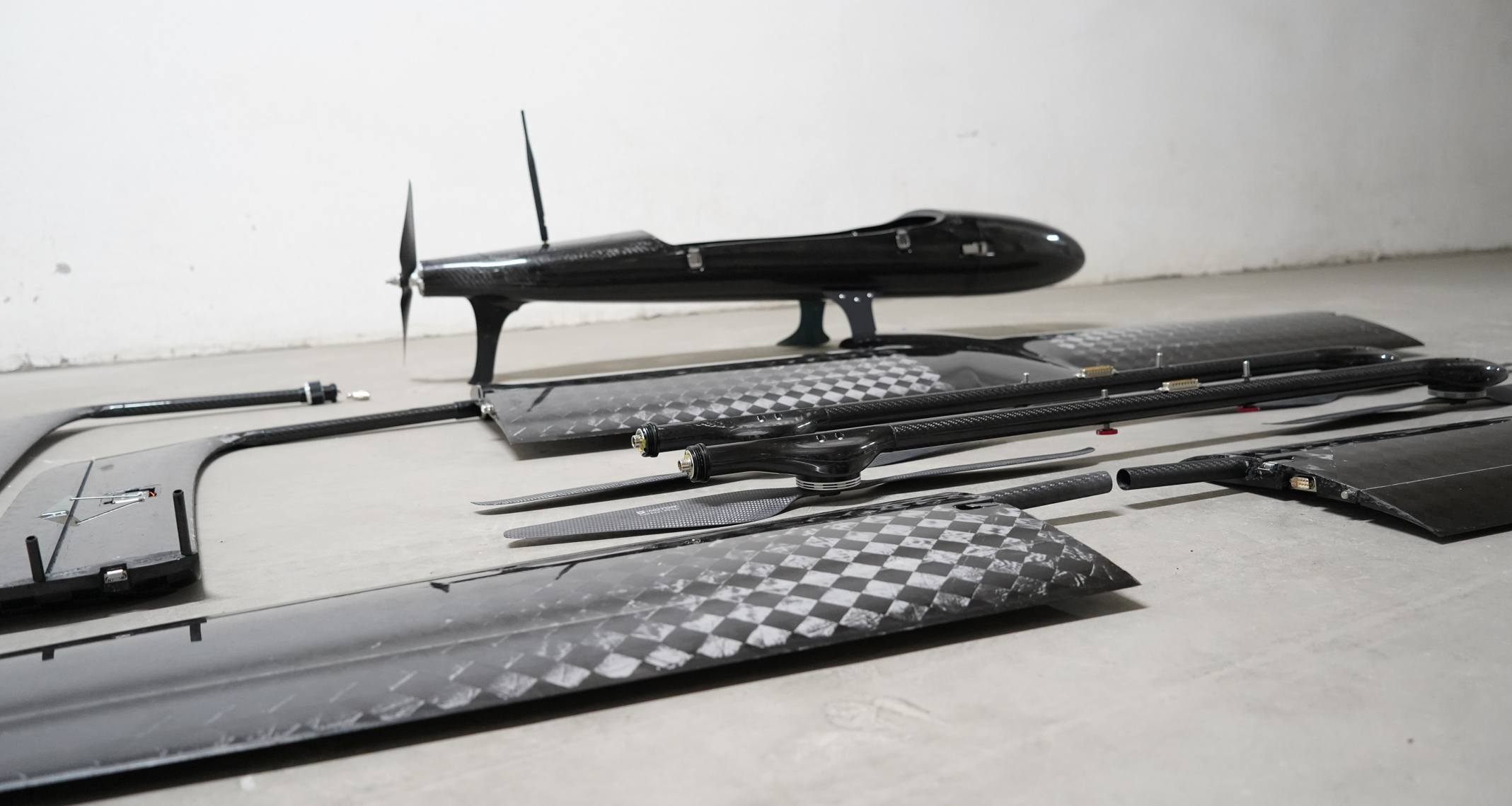

Floating connectors reduce drone assembly time

mako shark vtol modular Design

The rotor arms are connected by hand screws for a completely tool-free installation. The ESC hatch is made of aluminum and is directly attached to the ESC to act as a heat sink, which not only ensures the aerodynamic efficiency of the wing, but also is conducive to waterproofing.

Moka shark Specifications:

Body material: carbon fiber, composite material, etc.
Body length: 1800mm
Wingspan: 3000m
Landing gear height: 19cm
Landing gear installation position: below the rotor rod
Payload compartment size: 140mm*140mm*120mm
Mission compartment position: Front of the fuselage
Frame Structure weight: about 6kg
Maximum take-off weight: less than 16kg
Maximum payload: 2kg (standard load: 1-1.5kg)
Endurance: with 1KG payload get 6 hours (test flight) – 10 hours (estimated limit) @ 18 m/s (depending on the battery and model version).
Maximum control distance: manual control by remote control/3km, ground station/standard 30km (up to 100km with numerical control)
Flight speed: economic cruise speed 15-22 m/s (range is almost unchanged)
Maximum flight speed: 30 m/s
Minimum circling radius: 150m
Maximum horizontal lift limit: 4000m above sea level
Wind resistance in fixed-wing mode: no less than 7 wind (17.1m/s)
Maximum wind resistance in rotor take-off and landing mode: no less than class 4 wind (7.9m/s)
Operating environment: -20℃~45℃; can fly in light rain
Power battery: 1*5000mah 8S (vertical take-off and landing) ; 1*60000mah 8S (fixed wing cruise)
Rotor emergency operation time: not less than 6.5min
Take-off and landing method: vertical take-off and landing
Vertical power propeller size: 22.3inches
Fixed wing tail thruster propeller: 14~16 inches

Your Purchase Includes(RTF Combo):
1x Frame KIT
4 x Motor for VTOL Mode
4 x ESC for VTOL mode
4 x 22.3 inch propellers for VTOL mode
1 x 120A Tail ESC
1 x High Efficiency Tail Motor
1 x Propeller CW for Tail Motor
4 x servo
2 x UBEC
1 x PX4 Air Speedometer
1 x Power Module For Pixhawk 2.1
1 x Pixhawk 2.1 orange cube Set with Here 3 GNSS
1 x Remote controller
1 x 8S 5000 mAh battery
1 x 8S 60000 mAh battery
1 x Charger
1x Carrying Case
1x Assembling, tuned and Flying Test Service
