Precautions before the fly the drone sprayer


With the development of science and technology, many advanced equipment are now used in all walks of life. Technology has brought tremendous changes to our lives. It improves our work efficiency while ensuring the quality of work done.


Let's take drone sprayer as an example. With the application of drone sprayer to agriculture, it is a huge change. Whether it improves work efficiency or improves work quality, we are using drone sprayer. Some preparatory work needs to be done when the time comes. Next, the editor of Aoshi Technology will tell you the specific matters that should be paid attention to.


1. Check the arm of the drone sprayer to ensure that the arm is not damaged, fully unfolded, and the screws are not loose.


2. Check the propeller to ensure that the edges of the propeller are intact, the propeller is installed firmly, and the screws are not loose.


3. Check the spray rod to ensure that the spray rod is fully extended and the screws are not loose


4. Check the nozzle to ensure that the nozzle is facing downwards, without damage, looseness, dripping, and clogging.


5. Check the air pressure hose to ensure that the air pressure hose is firmly connected to each joint without leakage or blockage. The air in the hose can also cause the nozzle to block. At this time, open the exhaust valve on the nozzle to discharge the air, and then close the bleed valve.


6. Check and ensure that the landing gear of the drone sprayer is not damaged, and the fastening screws are not loose.


7. Battery inspection and battery installation are important, the battery voltage meets the operating requirements, and a low-voltage alarm is connected to the battery.


8. Check the medicine box to confirm that the medicine box is not broken, no drip leaks, and the medicine box cover is tightened.


9. The remote control and ground station must ensure that the remote control and ground station equipment have enough power for operation.


10. Make sure that the magnetic compass has been calibrated.


11. Enable the drone sprayer GPS to search and fly more than 8 satellite signals


The above are some knowledge that you need to pay attention to before using the relevant drone sprayer. I hope it will be helpful to you.

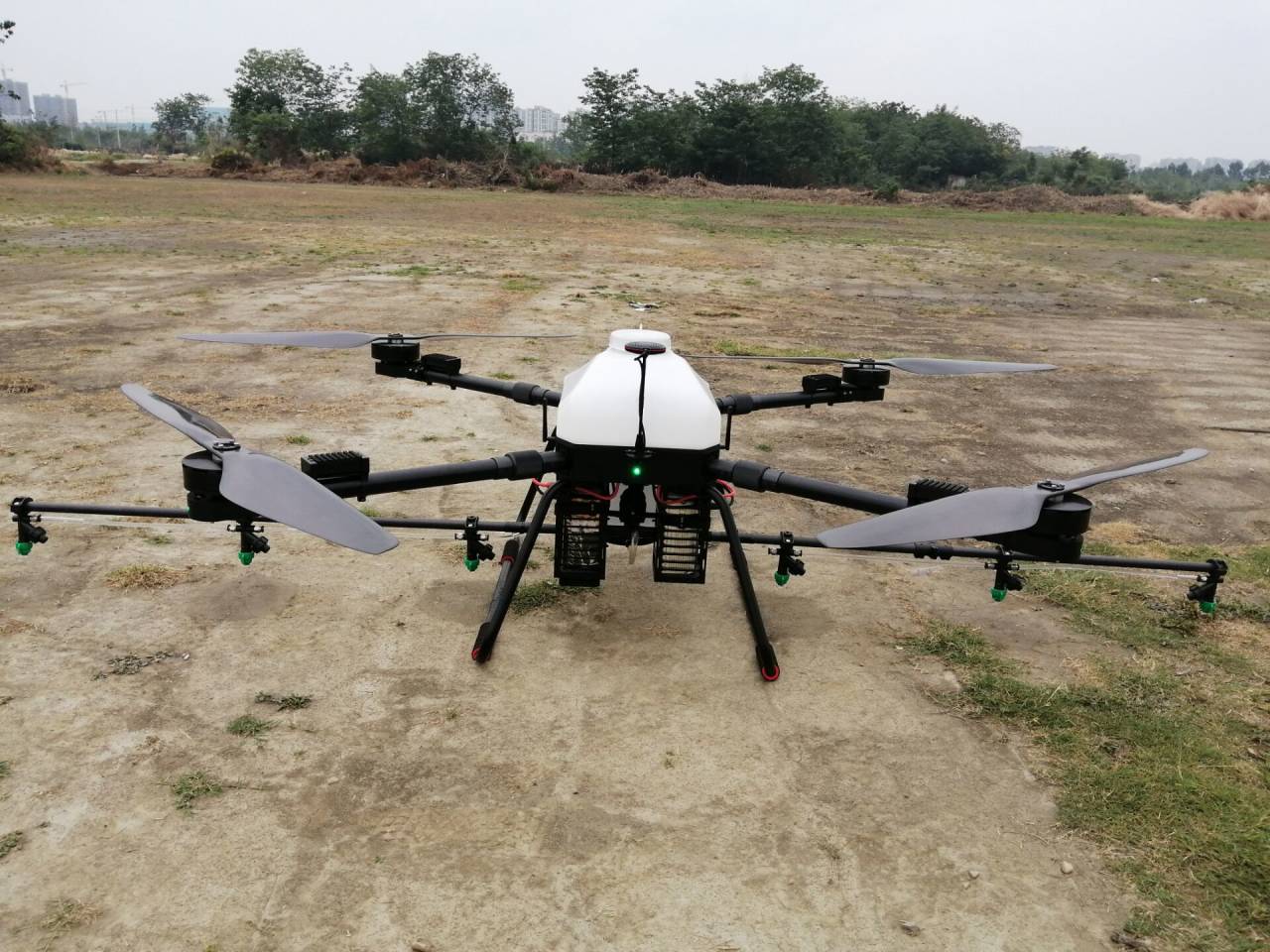

Hybrid 16L drone sprayer for agriculture

Hybrid Crop Spraying Drone features a gasoline + electric power system with great flight times and easy maintenance! This hybrid drone for crop spraying is portable thanks to folding arms and the modular design. The FD-416 crop dusting UAV can be used for any spraying missions – use it for agricultural, solar panel cleaning, roof spraying and anything else where a spraying drone would save you time and money! The FD-416 crop sprayer Hybrid is perfect for customers who don’t want to deal with battery charging or storage. This spraying UAV is also a great candidate for extreme cold or hot climates where drone batteries suffer.

Using drones for agriculture increases the precision and efficiency with which farmers can work, and makes it easier to make informed land management decisions. Drones can be deployed for a wide variety of tasks, including monitoring of livestock and the health of crops, estimation of soil conditions, planting of future crops, and countering infections and pests.

This powerful propulsion system allows the UAV to carry up to 16 litres of liquid in total (including the fertilizer), with a maximum takeoff weight of 40 kg. The drone can therefore operate for longer and cover more farmland in a single flight, without the need for farmers to take heavy batteries out into the field.

Product description
Model:FD-416
Number of axes:4 axis
Wheelbase: 1500mm
Power : 6000w Hybrid power
Medicine box vol1ume:max 16L
Fuel tank capacity : max 3.5L
Hybrid model: FL6000W
Full load flight time: 45 minutes
Weight:
1. Full load takeof weight: 40KG
2. Frame weight: 4.45KG
3. Hybrid powver weight: 7.2KG
4. Flight power system assembly weight: 4 * 1.65KG
5. Medicine bax weight: 1.5KG;
6. Fuel tank weight: 0.56KG
