News

Drones used in forest fires


Affected by the continuous high temperature and dry weather, a forest fire broke out in Lushan, Xichang City, the capital of Liangshan Prefecture, Sichuan Province on the afternoon of March 30. Due to the strong wind, the wildfire spread rapidly, and dense smoke filled the city of Xichang. The forest fire was located in the Qionghai Lushan National Scenic Area, surrounded by many important facilities, including a liquefied petroleum gas storage and distribution station with a stock of about 250 tons, two gas stations, four schools and museums, cultural relics protection units, and The largest department store warehouse in Xichang, the fire situation is very close, and the task of fighting the fire is very urgent. After the fire broke out, Flying Dragon Airlines received an emergency order from relevant departments and immediately dispatched a drone team to rush to the fire scene for rescue.


       On the night of March 30, the Flying Dragon drone team arrived near the fire site in Xichang City and took off to detect the fire on the fire site. The wind over the fire site reached about level 7, but the Flying Dragon drone still operated normally, fully demonstrating its ability to resist wind. Strong characteristics. The real-time images returned by the flying dragon drone provide a scientific basis for the on-site commanders to accurately determine the fire situation and quickly deploy fire fighting forces to prevent the spread of the fire. For key facilities, such as the 250-ton liquefied petroleum gas storage and distribution station, air reconnaissance was carried out. UAV reconnaissance showed that the fire site was only 600 meters away from the 250-ton oil depot. The headquarters quickly mobilized firefighters to protect the oil depot with fire isolation belts. Prevent the occurrence of secondary disasters of fire.

At around 6:50 on April 1, the Sichuan Forest Fire Fighting Corps organized five rescue forces to launch forest fires on the northeast side of the north line of the fire site, the northeast line and the south line of the fire site, the back mountain of Guangfu Temple, Wuzu Temple and other places. Save. The Flying Dragon drone team accompanied the Sichuan Provincial Forest Fire Brigade to carry out guarantees at Guangfu Temple.

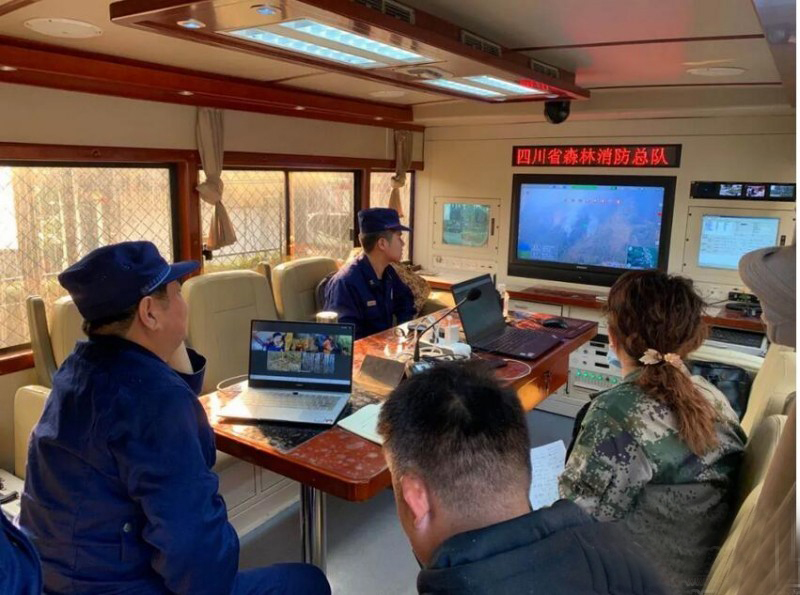

On the morning of April 1, the director of the Forest Fire Bureau Xu Ping, who rushed to Xichang from Beijing, accompanied by Jin Decheng, political commissar of the Sichuan Forest Fire Brigade, went to the front line of Guangfu Temple to direct the fire fighting on the spot. During the period, Feilong UAV found 4 fire spots near Guangfu Temple. The leaders of the on-site fire department watched the real-time monitoring images returned by Feilong UAV at the command center, and immediately commanded firefighters to extinguish the fire.

As of 13:25 on April 1, after the day and night of the fire and rescue forces, all the open flames were extinguished and initial results were achieved. Faced with the severe situation of long lines of fire, wide areas, and variable wind directions in this forest fire, Feilong UAVs rely on the advantages of large load, long battery life, high wind resistance, wide field of view, and high-definition real-time images. The process played an important role as a "clairvoyance" in the air, and provided strong scientific and technological support for the efficient extinguishment of the fire.


FD4100 carbon fiber industrial drone with IR camera for forest fires


FD4100  is a long flight time six axis carbon fiber drone , FD4100 is made of carbon fiber material which features light weight and high strength, the canopy of FD4100 is made of glass fiber so that the GPS signal won’t be blocked. The closed fuselage structure can protect FD4100 from the rain and dust, and also protect other load equipments like flight control and battery. The arm of FD4100 is pluggable, both the cover and arms can be locked with the quick locking hooks. Due to its detachable arm the FD4100 drone Frame is also easy to carry.
FD4100 can be applied in many fields like aerial photography, emergency rescue, reconnaissance mission, power line inspection, remote sensing survey and mapping etc.

Specifications:

– Wheelbase:1600mm
– Weight: 1750g(frame only)
– Max payload: 6kg
– Flight time:  70min (2 pieces of 25000 mAh li battery,   without any payload)

drone Frame Features:

– TORAY 3K Carbon fiber material
– Light-weight, durable and stable
– Rainrproof
– Long flight time
– Detachable arm, easily portable

Options:

– Motor: T-MOTOR 6 series , DJI2000
– Propeller: 22 inch


D640 dual camera


dual-light 30X zoom gimbal
Sensor:  CMOS:1/2.8″; total pixel: 230w pixel
Lens: 30 times optical zoom lens
F:    4.7~141mm
Minimum photograph distance:    1m~5m(close~remote)
Field angle(horizontal):   60~2.5°
Resolution rate:   30fps(1920*1080)
Range of pointing zoom:  30 times optical, 4 times digit
Thermal imaging
Detector category:  uncooled infrared microbolometer
Resolution rate:  640*480
Sensitivity: ≤60mk@300k
Frame frequency: 50Hz
Weight: 750g

Power consumption: 8.4W

Size:105*105*65mm

Working Voltage:12V-25V
