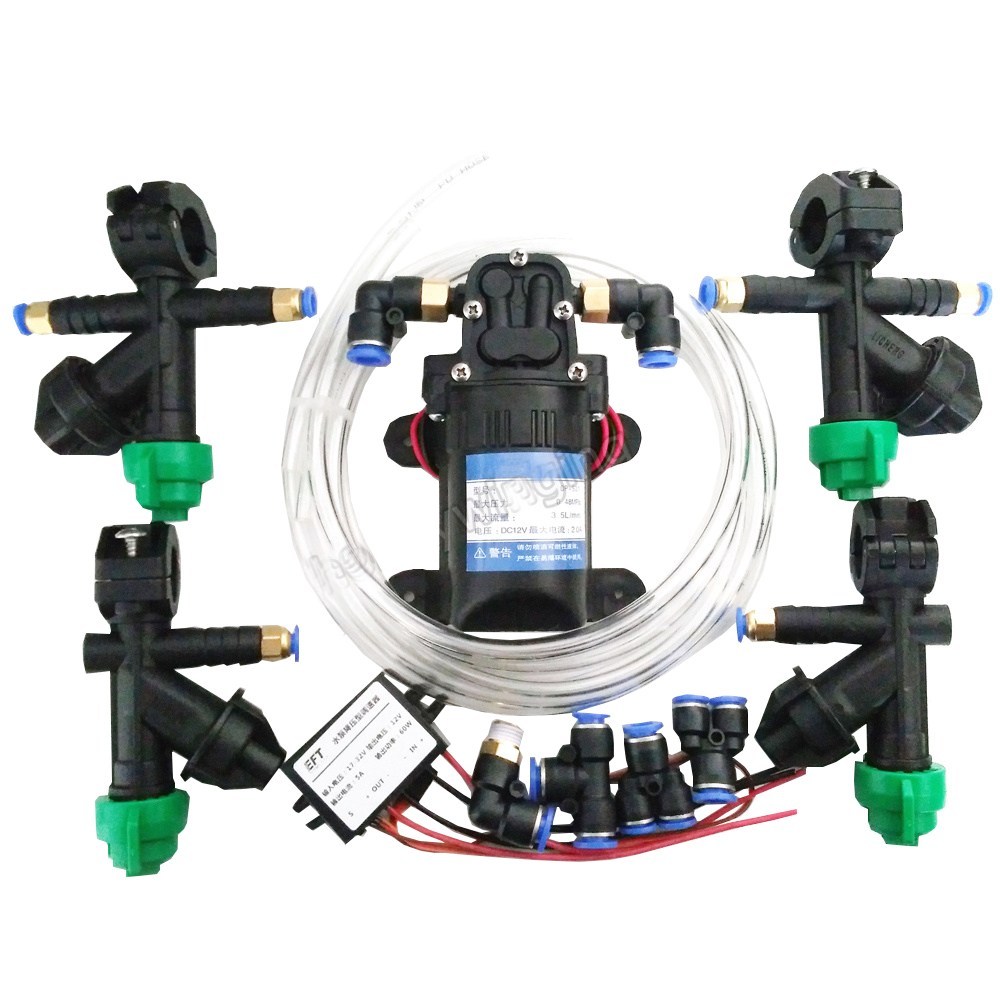

Agriculture drone spray system accs Nozzle + Water pump + Buck type governor adapter + Pipes combo for 5/10/15 / 20L Agricultural UAV

Agriculture drone 3.5L reflux pump
Product description:
Power: 35W
Flow: 3.5L / min
Voltage: 12V
Maximum pressure: 0.6Pa
Rated pressure: 0.48Pa
Modified quick-release copper head, suitable for diameter 8mm water pipe use
Volume: 125 * 100 * 60mm
Suction: 1.45m
Head: 4-5 meters
The people are either positive and negative, and the water pump can be placed in any direction
Water pump buck type governor drone spray system
The use of epoxy potting, with shock, water, moisture, dust, flame retardant, integrated governor, long-term use of stable and reliable quality! Ultra-thin, small size, high efficiency and easy to install!
Wiring method:
IN red line – input positive; black line – input negative;
OUT red line – output positive; black line – output negative;
S receiver signal cable (using knob or rocker channel)
Size: 47mm * 34mm * 22mm (L * W * H)
Weight: about 75g
UBEC: Output is not supported
Conversion efficiency: up to 96%
Output ripple: 50mV (MAX)
Operating temperature: industrial (-20 ℃ to +85 ℃) (ambient temperature of more than 40 degrees, please reduce the power to use, or strengthen the air cooling heat)
Load regulation: ± 1%
Voltage regulation: ± 2%
Input Reverse Protection: None
1. Please strictly follow the wiring rules for wiring, voltage positive and negative polarity shall not be reversed, otherwise it may damage the module.
2. If the output reaching the maximum current value, pay attention to the power module cooling (it is best to give the module a certain amount of current margin, so that the service life is longer, as far as possible not to use the maximum )
Package list:
Nozzle * 4 pcs (modified quick-release copper head, for 6mm diameter pipe)
Water pump * 1
Water pump buck type governor * 1
Pneumatic connector * 1set
Water pipe * 1set
Nozzle has two mounting method ( optional)
Pipe buckle fixed
Screw fix
Pipe buckle fixed
Set on the carbon tube ( 20mm diameter), fixed with carbon tube can be extended spray bar, widening spray.
