FD-3DV3 oblique camera for drone 3D modeling

FD-3DV3 oblique camera for drone 3D modeling

Product description: FD-3DV3 is an oblique photography drone specially used for 3D mapping and modeling of multi-rotor drones. It consists of a 24M-pixel 25mm orthophoto lens and four 24M-pixel 35mm oblique photography le
INQUIRY

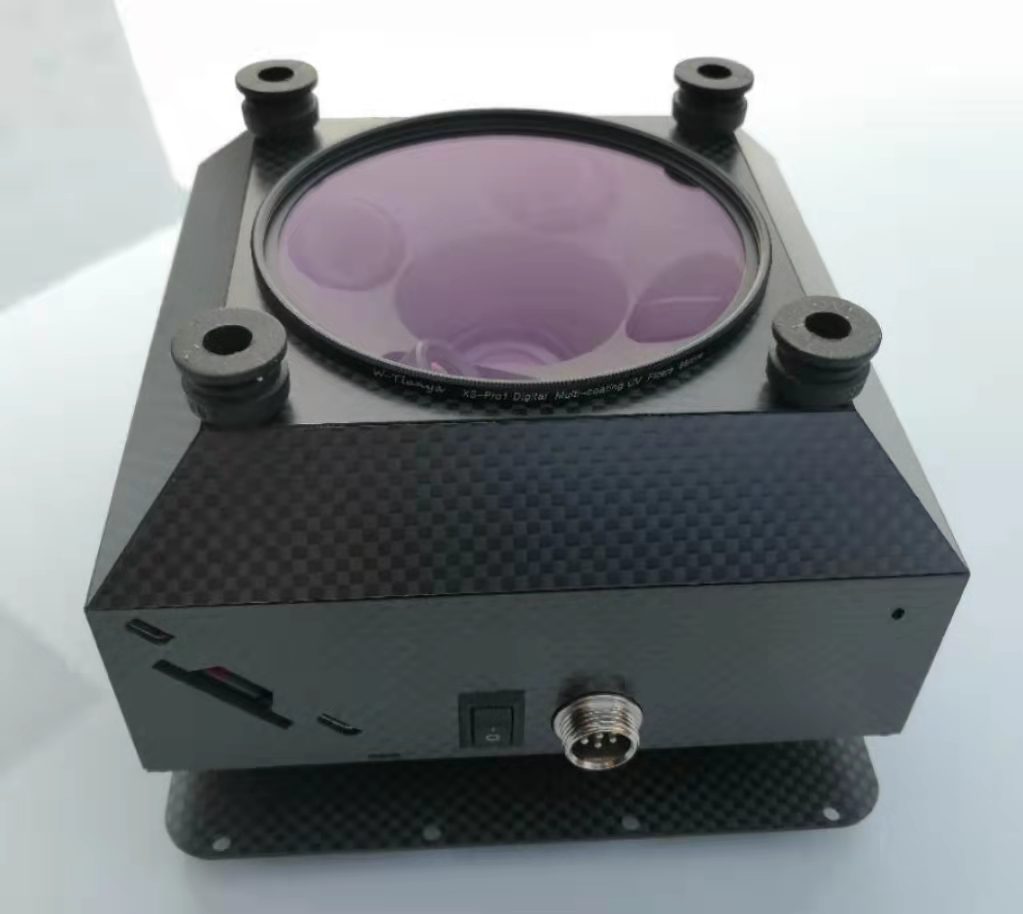

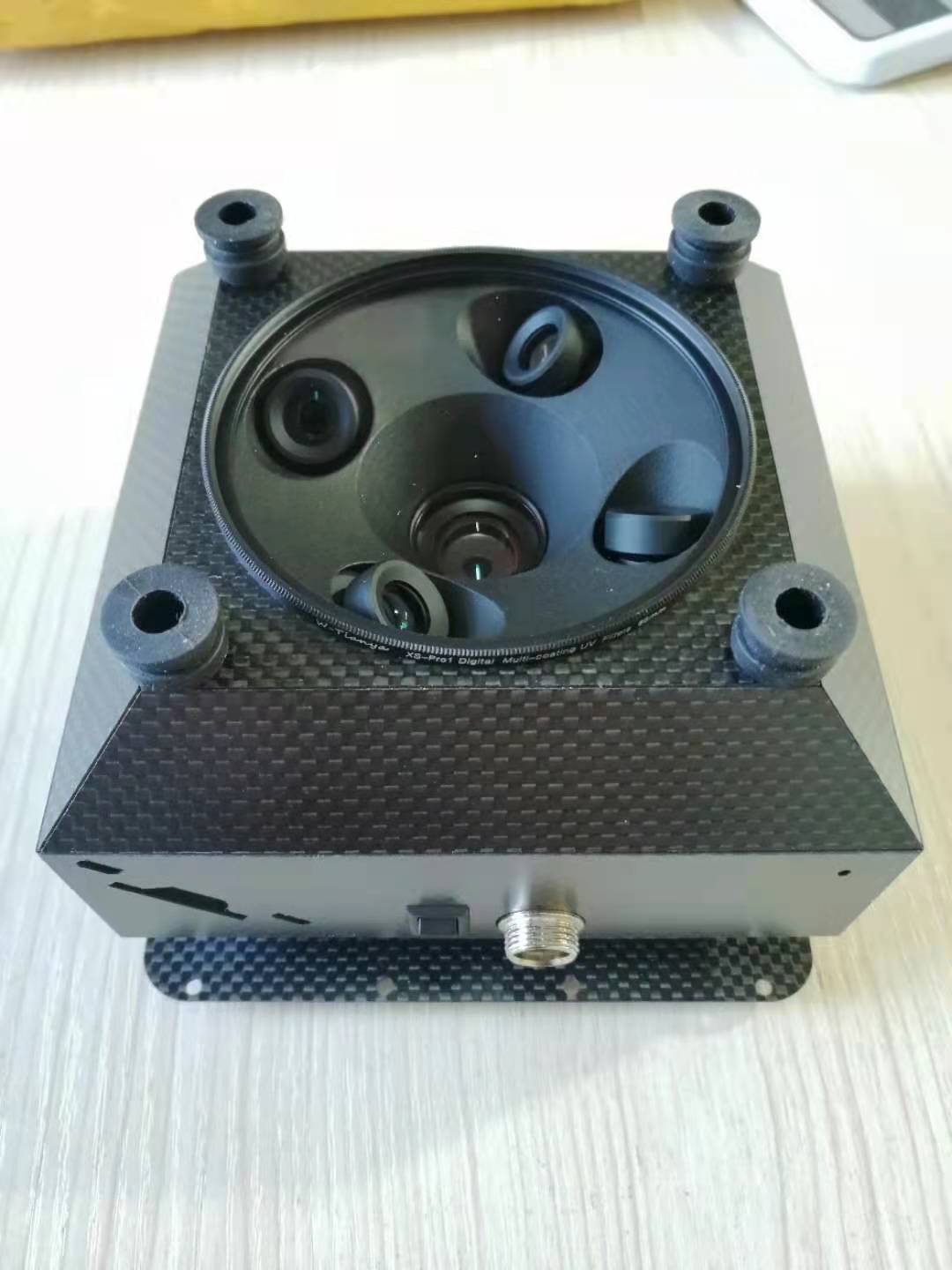

FD-3DV3 is an oblique photography drone specially used for 3D mapping and modeling of multi-rotor drones. It consists of a 24M-pixel 25mm orthophoto lens and four 24M-pixel 35mm oblique photography lenses, with a total pixel of 120M. The tilt angle of the lens is 45°, which greatly improves the modeling effect. The size of the whole machine is 129*129*85mm and the weight is only 650g. It can be installed on most drones for 3D modeling.

Specifications:

Single lens pixel 24 megapixels
Total pixels 120 megapixels
Minimum camera interval ≥1s
Sensor size 23.5mm * 15.6mm (APS-C frame)
Hot shoes PPK Support
Image resolution 6000*400
Shutter speed 30—1/8000
Size 129mm*129mm*85mm
lens 25.2mm + 35.7mm
Power 12-50V (3-12s)
weight ≤650g
Set APP or USB
Date Copy SD card
