Mapping kit

FD-3DV3 pro oblique camera for drone 3D modeling

Product description: FD-3DV3 pro base on the FD-3DV3 oblique photography drone specially used for 3D mapping and modeling of fixed-wing drones. It consists of a 24M-pixel 35mm orthophoto lens and four 24M-pixel 56mm obliq
INQUIRY

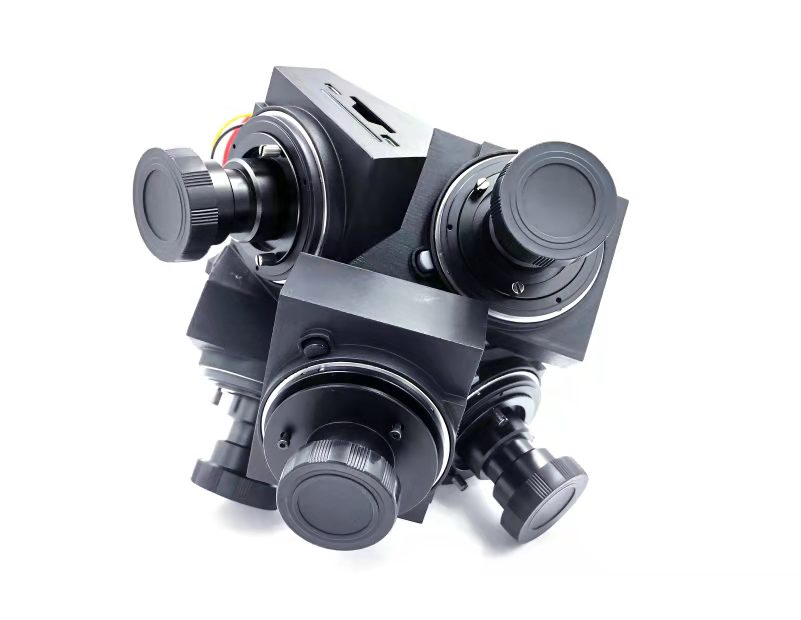

FD-3DV3 pro base on the FD-3DV3 oblique photography drone specially used for 3D mapping and modeling of fixed-wing drones. It consists of a 24M-pixel 35mm orthophoto lens and four 24M-pixel 56mm oblique photography lenses, with a total pixel of 120M. The tilt angle of the lens is 45°, which greatly improves the modeling effect. The size is 148*148*123mm and the weight is 850g. It can be installed on most drones for 3D modeling.

oblique camera

Single lens pixel 24 megapixels

Total pixels 120 megapixels
Minimum camera interval  ≥1s
Sensor size  23.5mm * 15.6mm (APS-C frame)
Hot shoes PPK Support
Image resolution  6000*400
Shutter speed  30—1/8000
Size  148*148*123mm
lens 35mm + 56mm
Power 12-50V (3-12s)
weight ≤850g
Set APP or USB
Date Copy SD card
