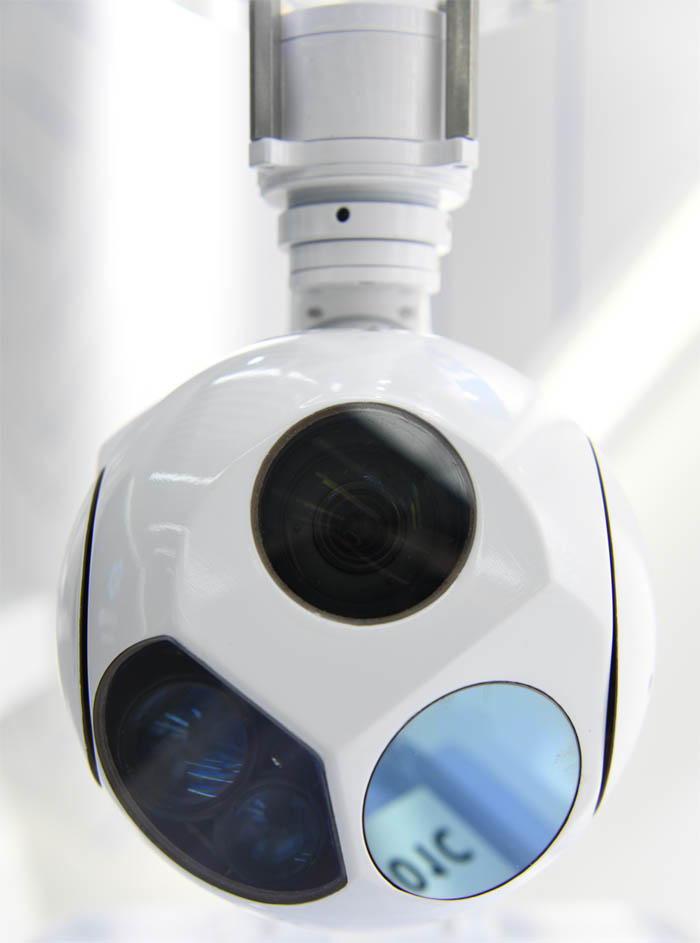

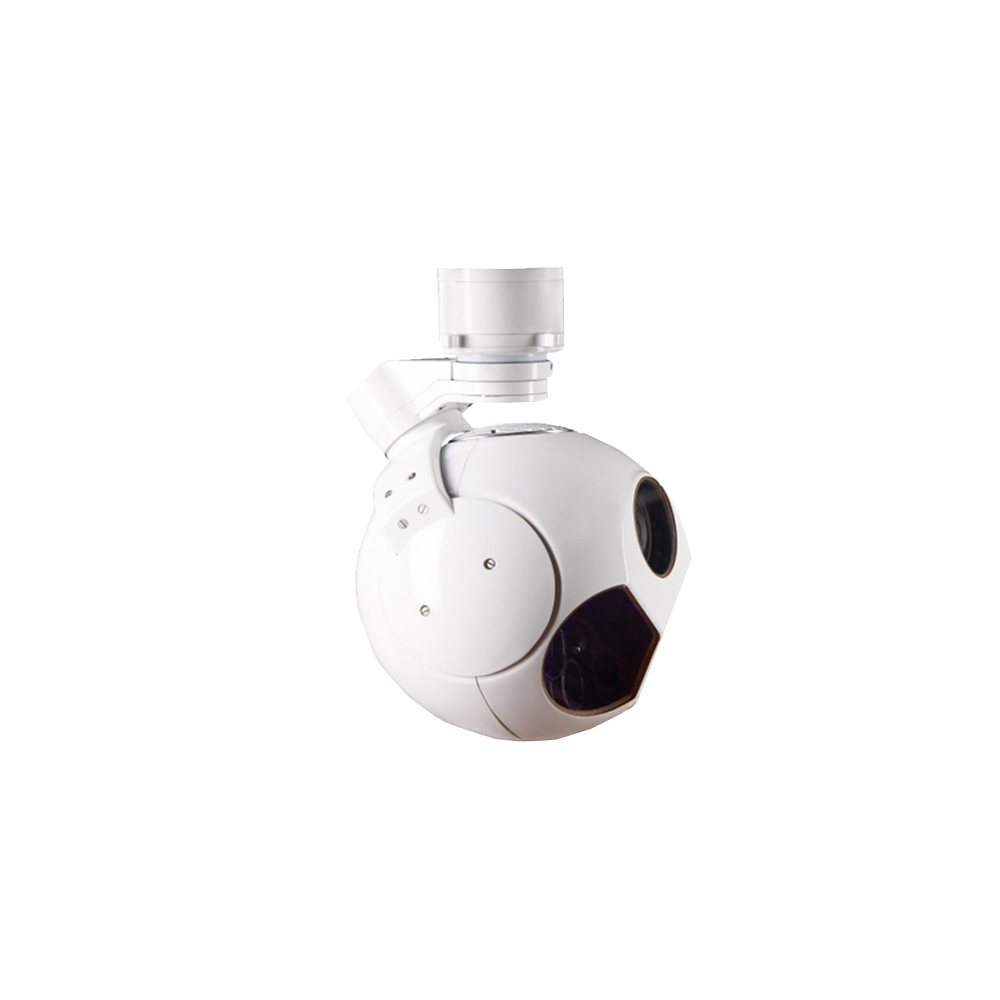

FD-TS01D 30X 3km LRF 360° dual camera is a cost-effective three-axis anti-shake three-view photoelectric pod with AI target detection/recognition/tracking function. Integrated Sony 30x high-quality starlight optical module, 25mm focal length 12μm high-sensitivity thermal imaging module, 3000m laser ranging module; using 640x512 thermal imaging module, the image is clearer, light weight and low wind resistance design, especially suitable for various types of drone

Specifications:

Working band: 0.4μm～0.9μm;
Detector pixel number: 1920×1080;
Focal length: 4.3mm～129mm, optical 30x continuous zoom;
Continuous zoom horizontal field of view: 63.7º～2.3º;
Video output: network video stream, 1080P, 30Hz.
Detection distance:
Human: detection distance 6km, recognition distance 2km
Car: detection distance 15km, recognition distance 8km
Thermal
Working band: 8μm～14μm;
Detector pixel number: 640×512;
Pixel size: 12um;
Focal length: 25mm/F1.0;
Field of view: 17.4º×14º;
Detection distance:
People: detection distance 0.7km, recognition distance 0.2km
Car: detection distance 4.2km, recognition distance 1km
Laser Ranging
Working wavelength: 905nm;
Ranging accuracy: 3m;
Ranging frequency: 1Hz;
Laser ranging distance: 3 ~ 3000m.
System parameters
Azimuth axis: n×360° continuous rotation
Tilt axis: -110°～+10°
Angle measurement accuracy: ≤2mrad;
Stability accuracy: ≤200µrad (1σ) (2°/1Hz, 1°/2Hz swing);
Interface: ethernet
Size: ≤Φ130mm×194mm;
Power: DC12V, voltage range 10V~14V
Power consumption：Average≤15w,  Peak≤30w
Weight: ≤900g
Working temperature: -20℃～60℃
