FD303 30X Zoom Dual Camera with 3km Laser Rangefinder 360°degree

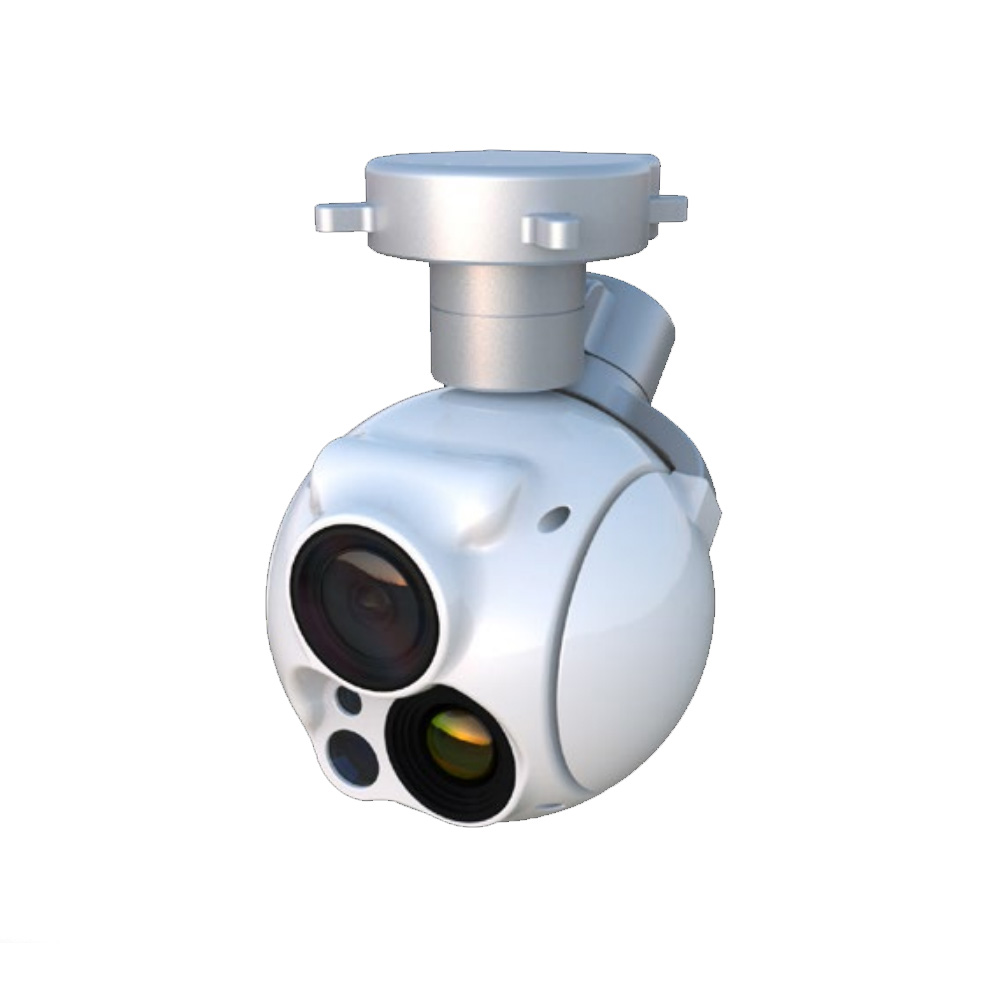

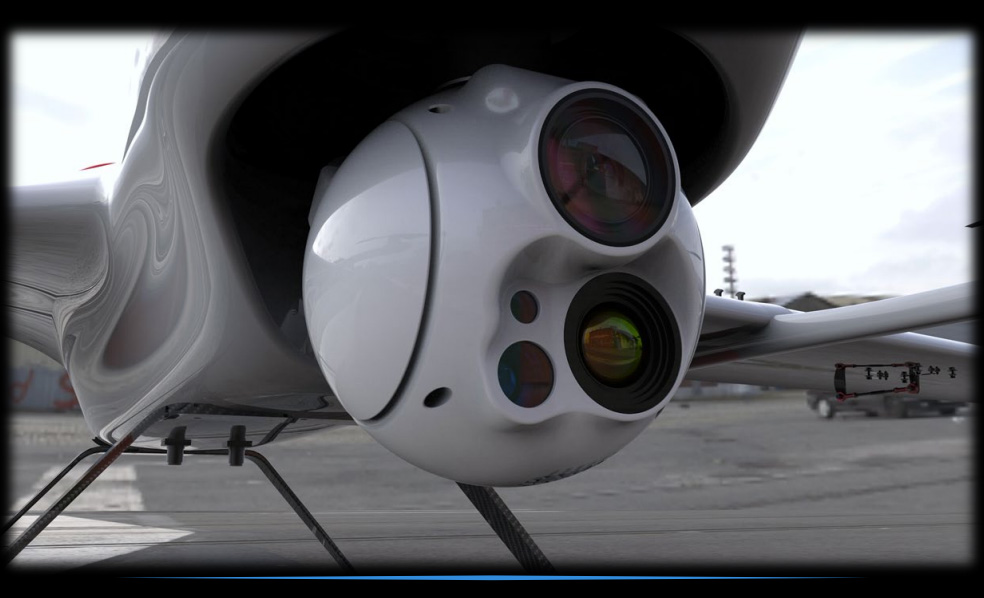

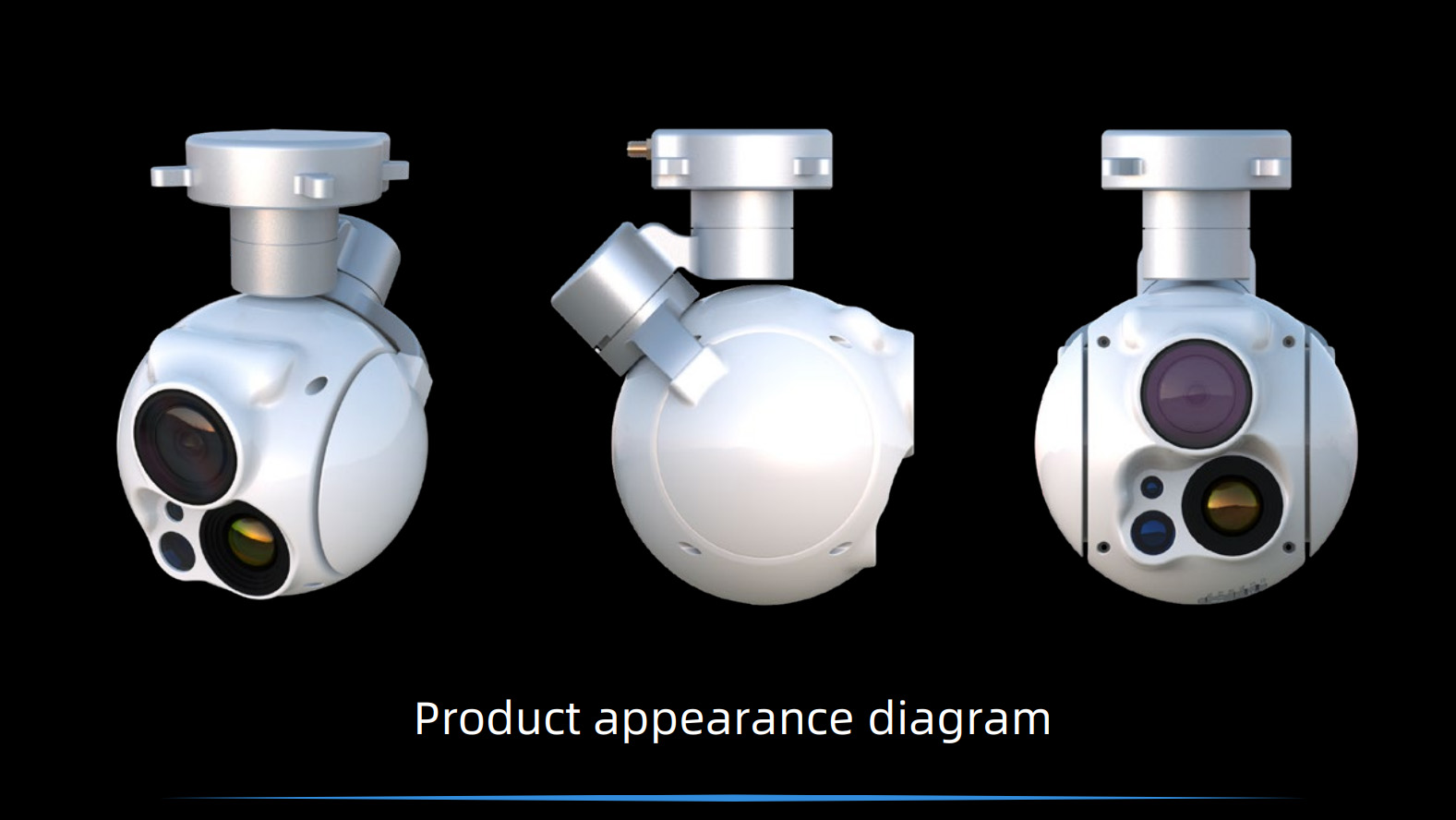

FD303 30X Zoom 3km Laser Rangefinder Dual Camera is a cost-effective triaxial image stabilization triple vision photoelectric pod, with AI target detection / recognition / tracking function. It integrates Sony 30x high-quality starlight optical module, 25mm focal length 12 μm high sensitivity thermography module, and 2500m laser ranging module; Lightweight and dip angle low wind resistance design, especially suitable for all kinds of UAVs with a airspeed of no more than 120km/h.


The product has powerful functions and the core technology is independent and controllable. It is applicable to various fields such as situation awareness, forest fire prevention, border and coastal defense monitoring, law enforcement and evidence collection, large field of view remote sensing and so on.

Product functions and features

●Dip angle roll axis design
●SONY 30X optical zoom starlight visible light module
●25mm lens 12μm Pixel pitch thermal imaging temperature measurement module
●2500m laser ranging module
●360 ° infinite rotation of yaw axis
●Low wind resistance shape design
●Support SDI / h.264/h.265 digital video output

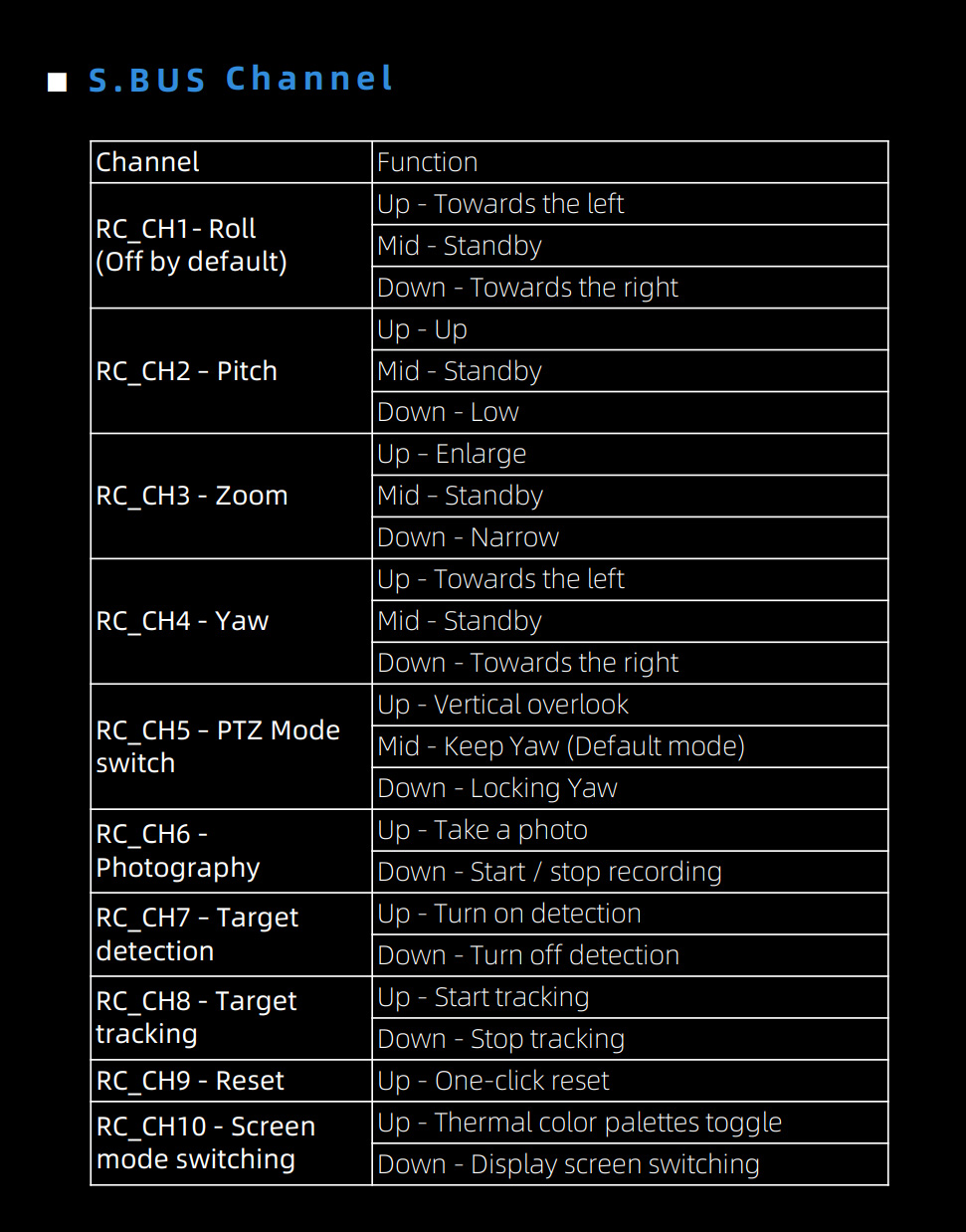

●Support S.BUS/TTL/RS232 control
●Support target detection, recognition and tracking
●Support MAVLINK Control protocol
●Has been adapted to many commercial flight controllers

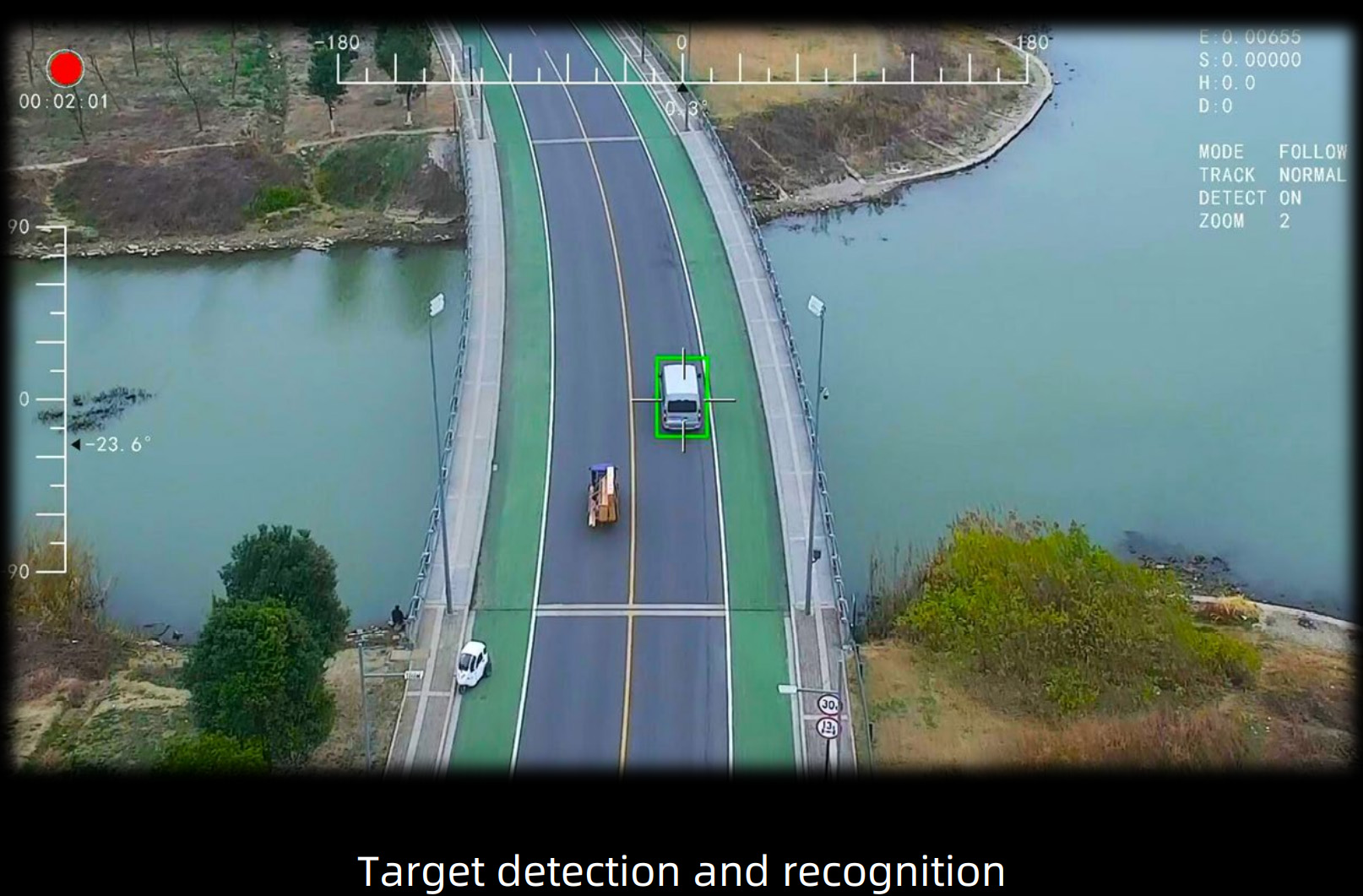

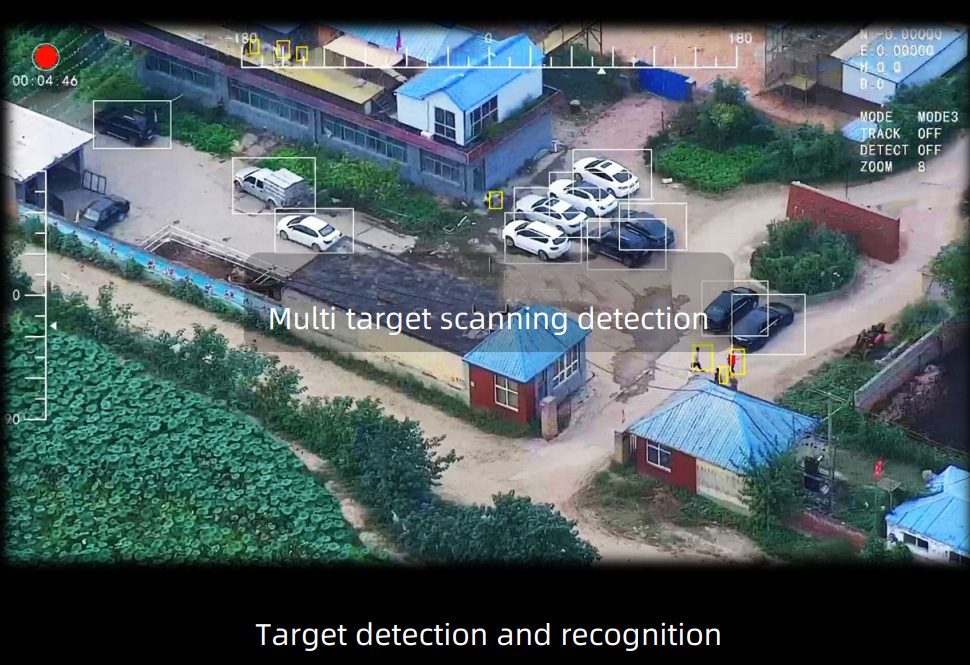

FD303 has the function of automatic detection and recognition of typical targets (visible light and infrared) such as vehicles, ships and personnel. It can detect multiple targets at the same time. The target detection probability is better than 90%, the target recognition probability is better than 85%, the false alarm rate is less than 10%, and the processing speed is not less than 30fps (1920 × 1080 resolution).


FD303 has the function of automatic detection and recognition of typical targets (visible light and infrared) such as vehicles, ships and personnel. It can detect multiple targets at the same time. The target detection probability is better than 90%, the target recognition probability is better than 85%, the false alarm rate is less than 10%, and the processing speed is not less than 30fps (1920 × 1080 resolution).

Specifications

Hardware Parameter

Material Aviation aluminum alloy, nylon

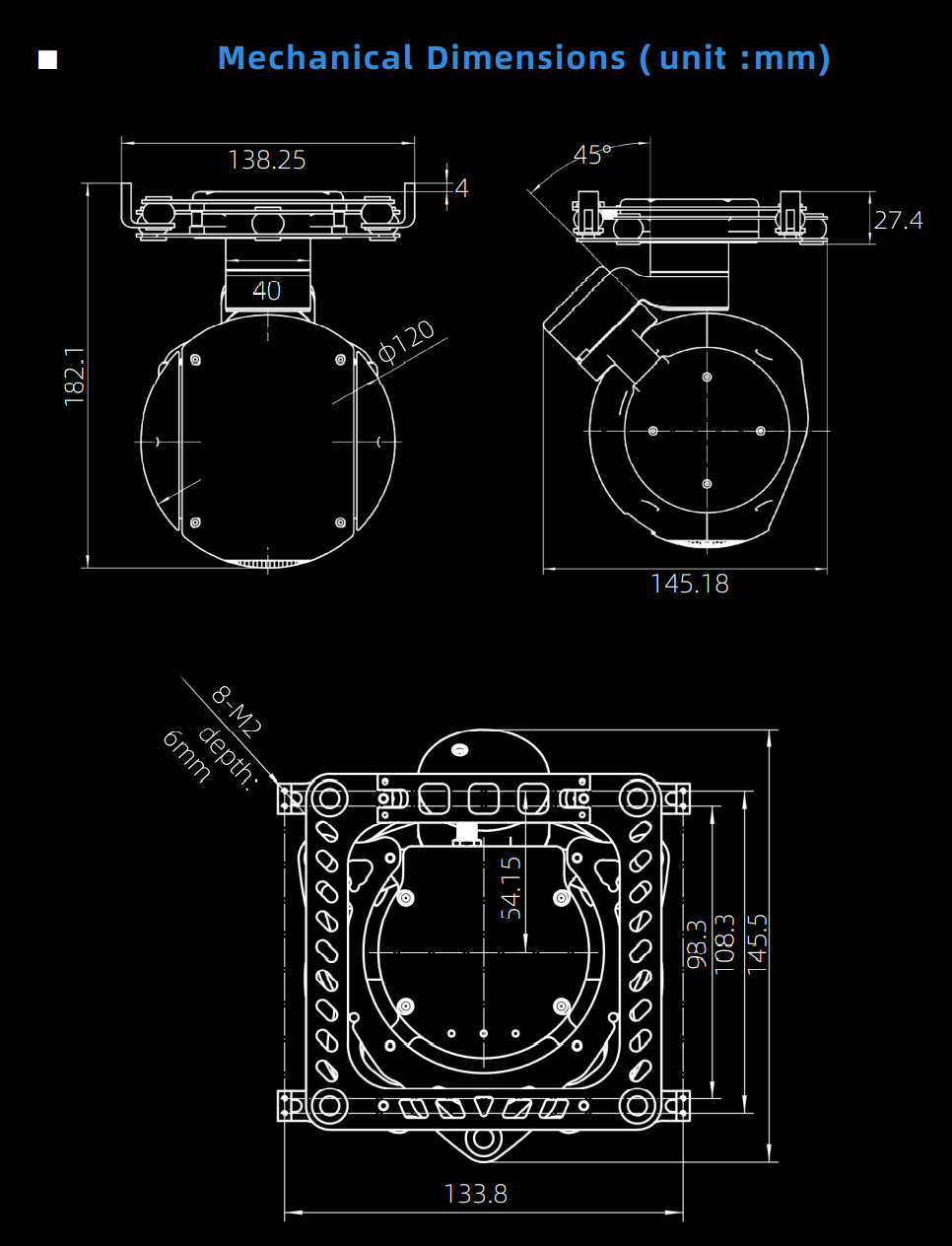

Main body size 145.2(L)×138.3(W)×182.1(H)
Body weight 950g
Working temperature -10℃~55℃
Storage temperature -20℃~60℃
Number of image stabilization axes Three axes
Input voltage 12v
Power 20w
Control angle range 360° (heading); -120°~30° (pitch)
Angular jitter ±0.03°

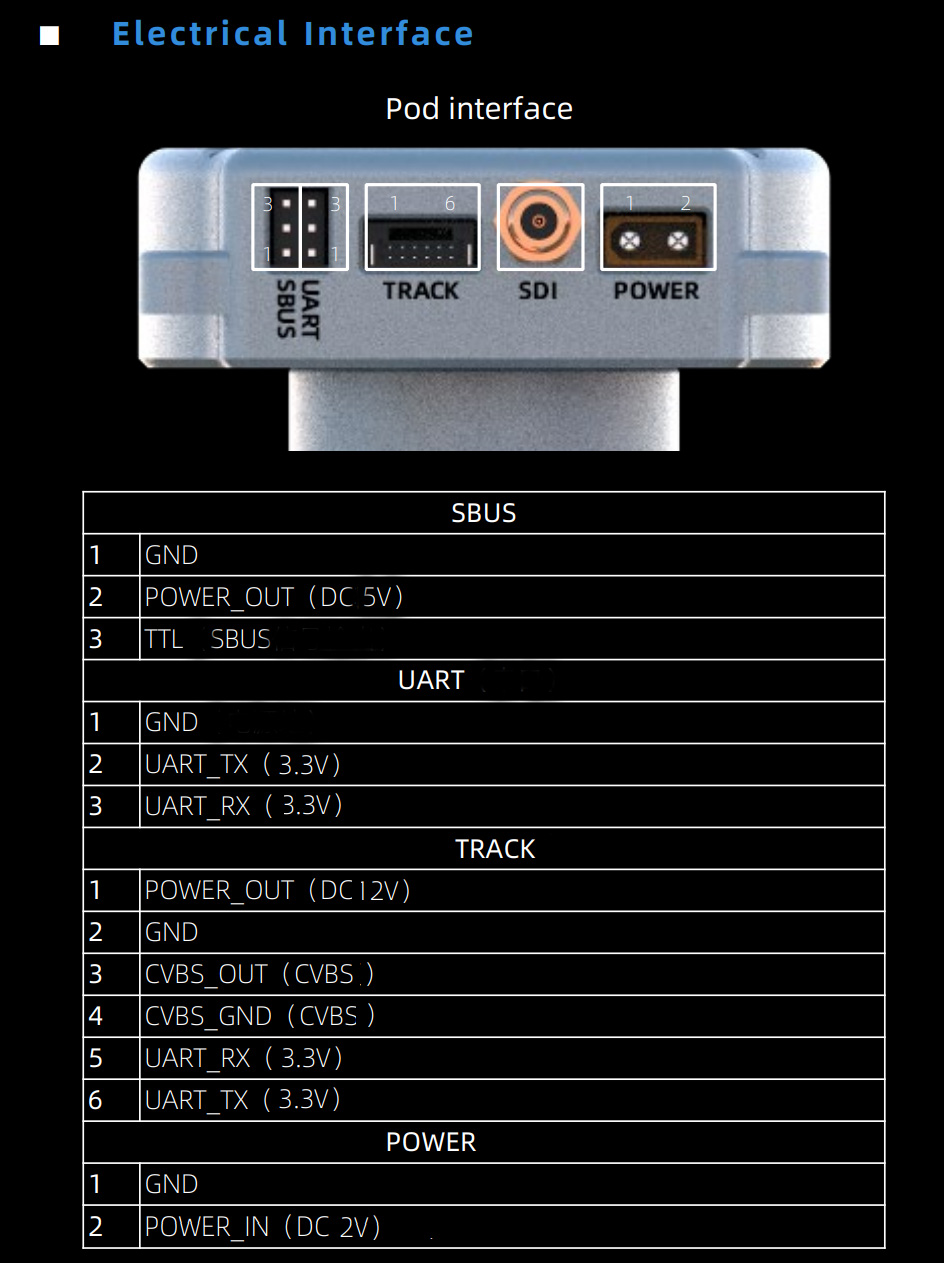

Control signal S.BUS, TTL serial communication (RS232 optional)
Video interface Ethernet port, SDI
Control Mode Course Follow (default); Course Lock; Vertical Look Down

Camera spec

Sensor 1/2.8 inch Exmor CMOS
Focal length 4.3~129.0mm
Zoom factor 30x optical zoom
Focus speed <1S
Shutter speed 1/1S~1/10000S, 22 steps
Horizontal field of view 63.7°~2.3°
Video output format 1080P/30 frames
Effective pixels 2.13 million
Image storage format JPEG
Video storage format AVI

Night Vision Level Starlight Level


Thermal imaging spec
Sensor Vanadium Oxide Uncooled Infrared Focal Plane
Resolution 640*512
Lens focal length 25mm
Pixel pitch 12μm
Wavelength range 8~14μm
Field of view 17°X 14°
Sensitivity (NETD) ≤50mK@F1.0@25℃
Digital zoom 1.0~8.0X continuous zoom
Frame rate 50Hz
Photo format JPEG
Video format AVI
Polarity Black Hot/White Hot
False Color Toggle Lava/Rainbow

Temperature measurement range -20℃~150℃(default)/0℃~+550℃(switchable)


Laser rangfinder
Eye safety/level Class1/1M
Maximum distance measurement ≥3000m; vehicle ≥2500m; person ≥1500m;
UAV ≥ 600m;
Minimum range 15m
Ranging accuracy ±2m (±1m optional)
Distance resolution ≤20m
Angular resolution ≤1mil
Accuracy rate ≥98%
False alarm rate ≤1%
Measurement frequency 1~10Hz
Laser wavelength 1535±5nm
Beam divergence angle 0.65±0.15mrad
Optical receiving aperture Φ16.5 mm
Reliability MTBF≥1500h
Optical axis stability ≤0.05mrad
Parallelism between the mounting surface and the optical axis ≤0.5mrad
Response time Start to ranging completion time ≤ 950ms;
The response time from sending ranging command to ranging completion is ≤10ms;

Tracking
Automatic detection of target types Typical targets such as vehicles, ships, people, etc.
The number of multi-target detections ≥20
Minimum target size 10×10 pixels
Target detection rate ≥90%
Target recognition rate ≥85%
Target capture time ≤5 frames
False alarm rate ≤10%
Tracking accuracy ≤1 pixel
Anti-occlusion time 3 seconds
The maximum target tracking field of view does not exceed 1/3 of the field of view
Anti-Target Deformation Automatic
Target switching tracking support
