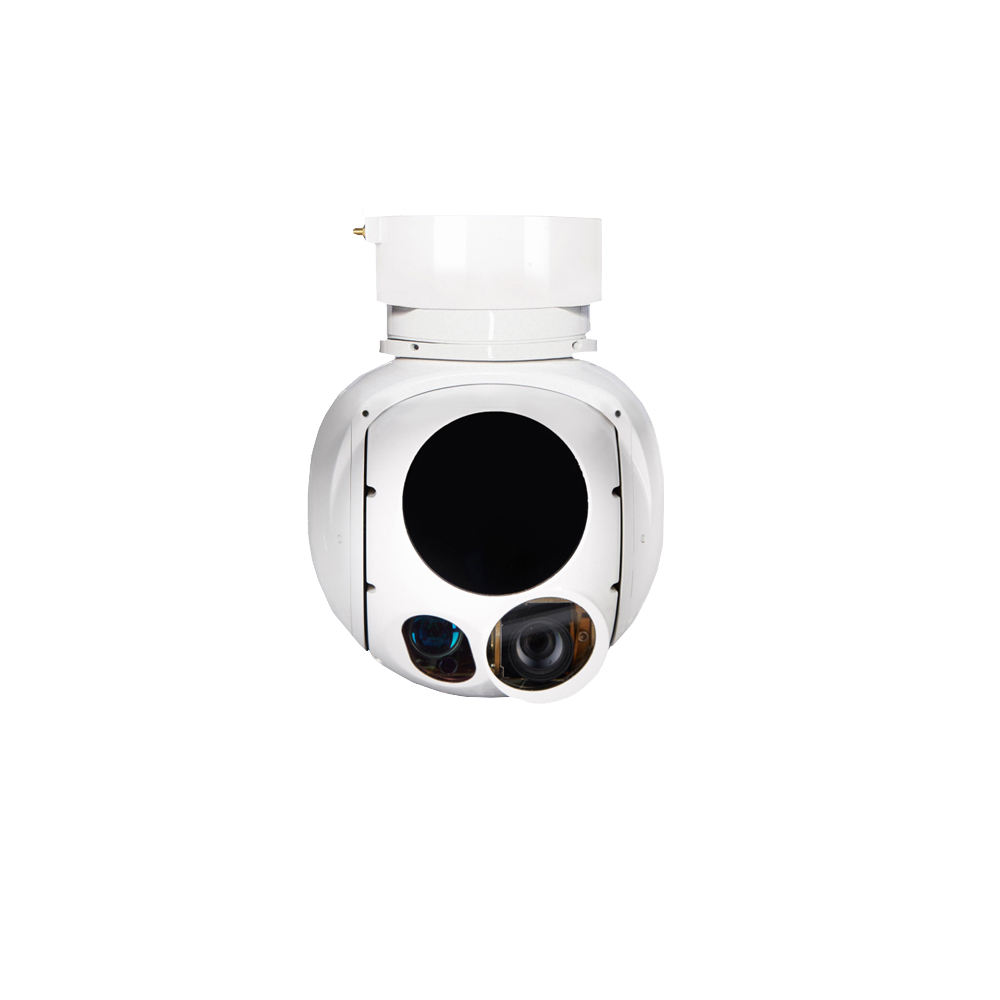

FD10 30X drone camera with 10km Laser photometry

FD10 30X drone camera with 10km Laser photometry

  • Product description: FlyDragon FD10 30X drone camera with 10km Laser photometry camera with target GPS positioning and guidance functions. It adopts a two-axis gyro stabilization platform, installs conductive slip rings t
  • INQUIRY

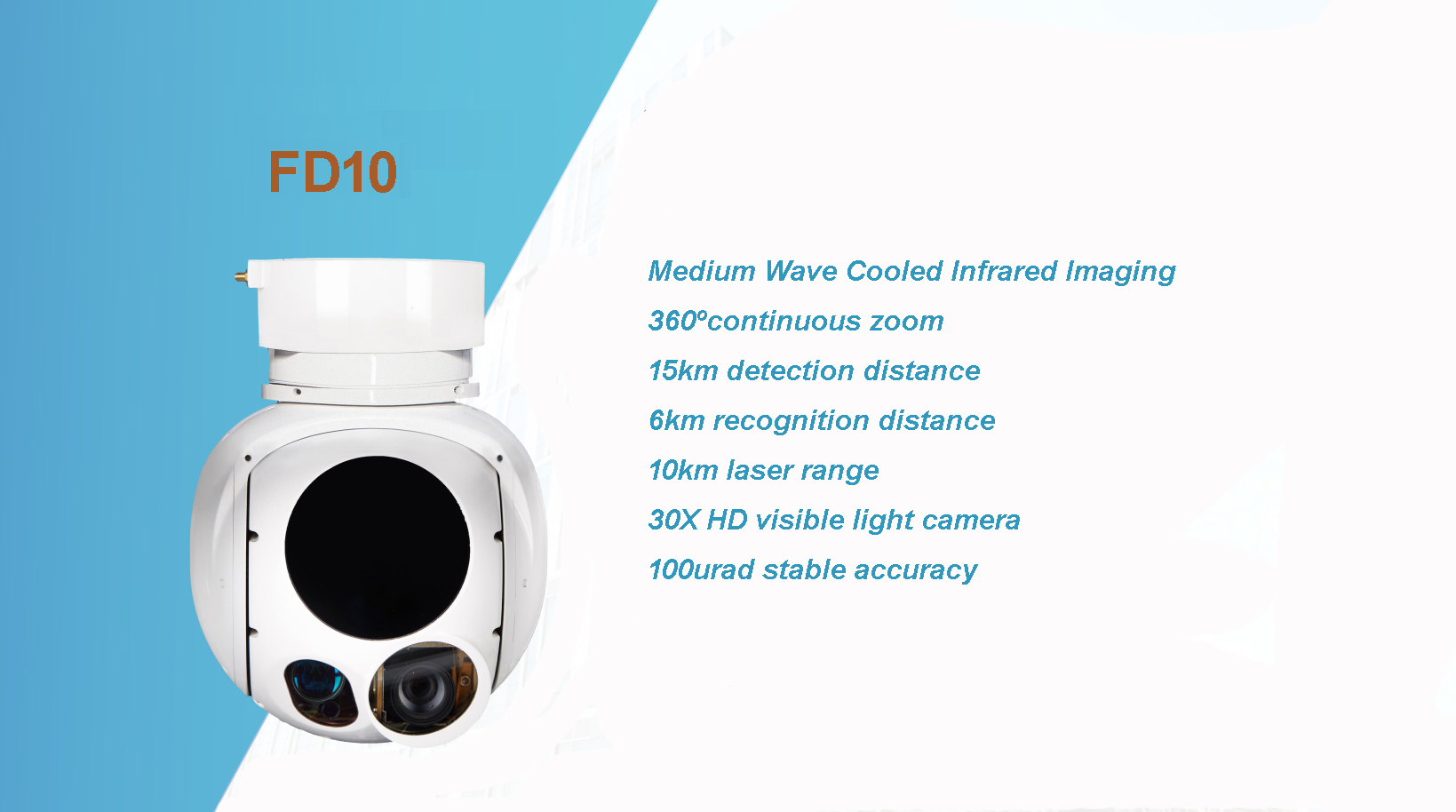

FlyDragon FD10 30X drone camera use Laser photometry drone camera with target GPS positioning and guidance functions. lacer range is 10km, Laser indication 6km, It adopts a two-axis gyro stabilization platform, installs conductive slip rings to achieve 360° continuous rotation, built-in 30X high-definition visible light camera, it can recognition of vehicles 3 m*6 m away from 15KM and people 0.5m*1.8 meters away from 6KM, FD10 laser measuring camera meets military standards, meets the requirements of inspection and shooting, and can provide instructions for the laser terminal guidance system

30X drone camera with 10km Laser photometry

Specifications

Visible light imaging

Working wavelength: 0.4um~0.9um
Optical zoom: 30 times continuous zoom
Resolution: 1920(H)×1080(V)
Horizontal field of view: 63.7°~2.3°

Medium Wave Cooled Infrared Imaging

Working wavelength: 3~5um
Focal length: 19-275mm/F5.5
Detector: 15um
Resolution: 640(H)×512(V)
Horizontal field of view: 28°~2.05°

Laser Illuminator

Working wavelength: 1064nm
Laser energy: 60mJ
Ranging range: 180m~10km
Ranging accuracy: 2m
Irradiation distance: ≥5km
Irradiation frequency: 20Hz (adjustable)

Servo performance

Rotation range: Azimuth: 360° continuous; Tilt: +90°~-120°
Angle measurement accuracy (1o): ≤2mrad
Line of sight stabilization accuracy (1o): ≤100urad
Optical axis consistency: ≤0.2mrad

System parameters

Size: ≤p278mmx322mm;
Weight≤10Kg
Power supply: DC24V, the voltage range is 18V~32V
Power consumption: average power consumption≤80W, peak power consumption≤200W
Working temperature: -40℃~60℃

Interface

Communication interface: 2*RS422 (TTL optional)
Video interface: 1*HD-SDI (optional network port, HDMI)
