Fixed-wing electric VTOL drone for measuring atmospheric flow

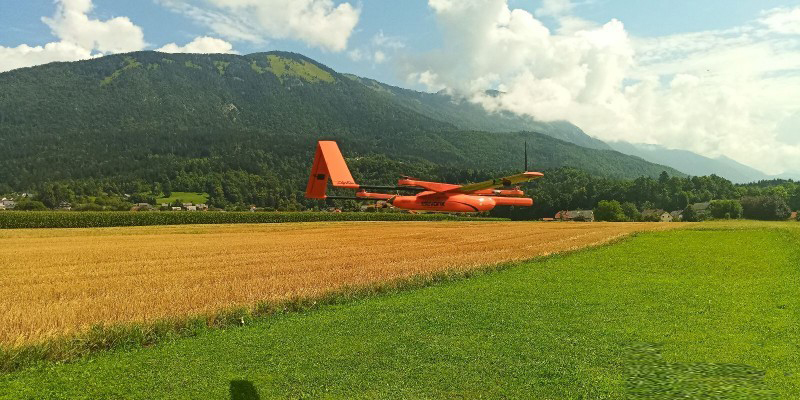

The kyEye Sierra VTOL drone is easily modified to provide customized solutions for specific applications. It is an ideal solution to meet the needs of the Environmental Physics Group of the University of Tubingen led by Professor Jens Bange.

Professor Jens Bange and his team have been applying remotely piloted aircraft systems (RPAS) and unmanned aerial vehicles (UAV) to atmospheric sciences for many years to study the processes of atmospheric flow and turbulence exchange and transport in the atmospheric boundary layer (ABL). This includes monitoring momentum, heat, water vapor, carbon dioxide, and aerosol flux. In addition to basic research, the team has also used this expertise in various wind energy research projects on sea and complex terrain.

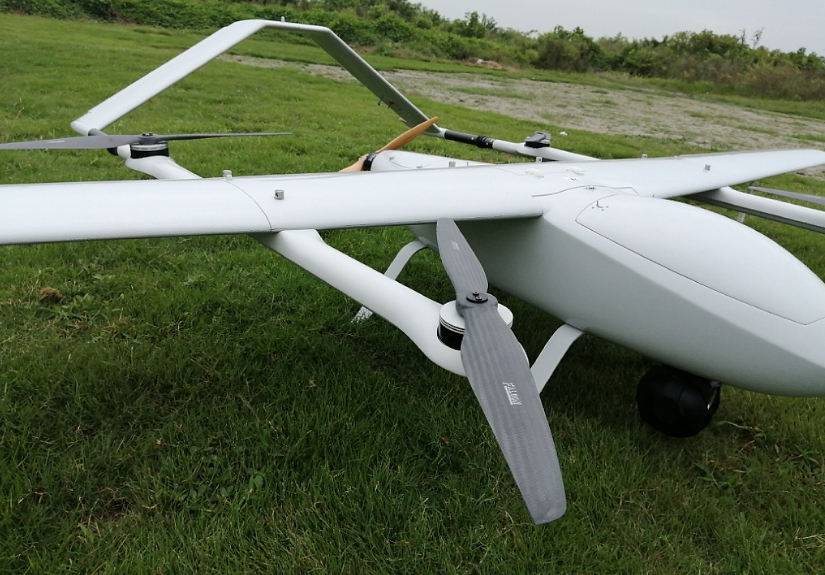

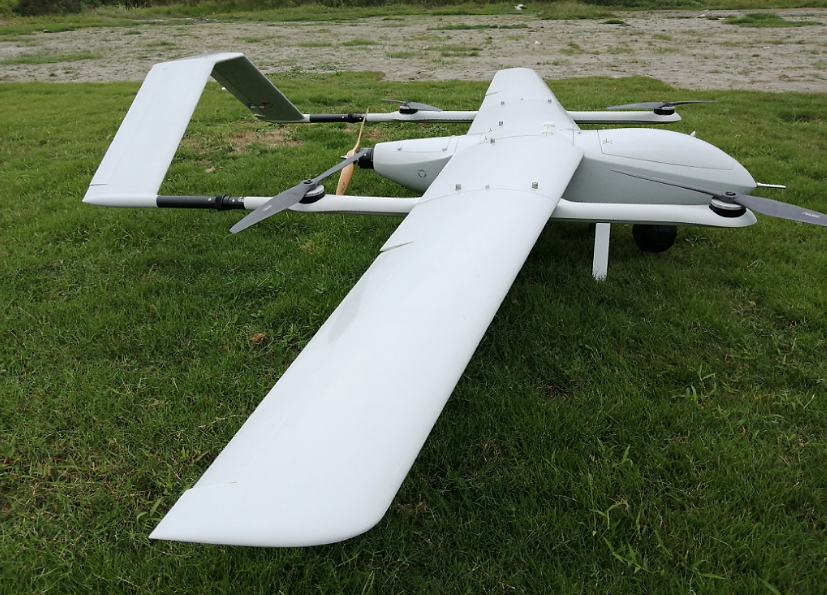

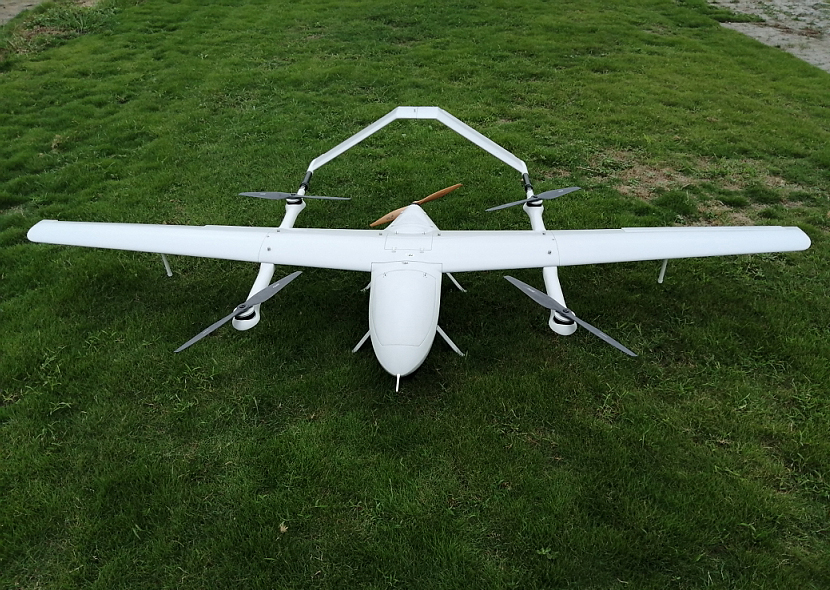

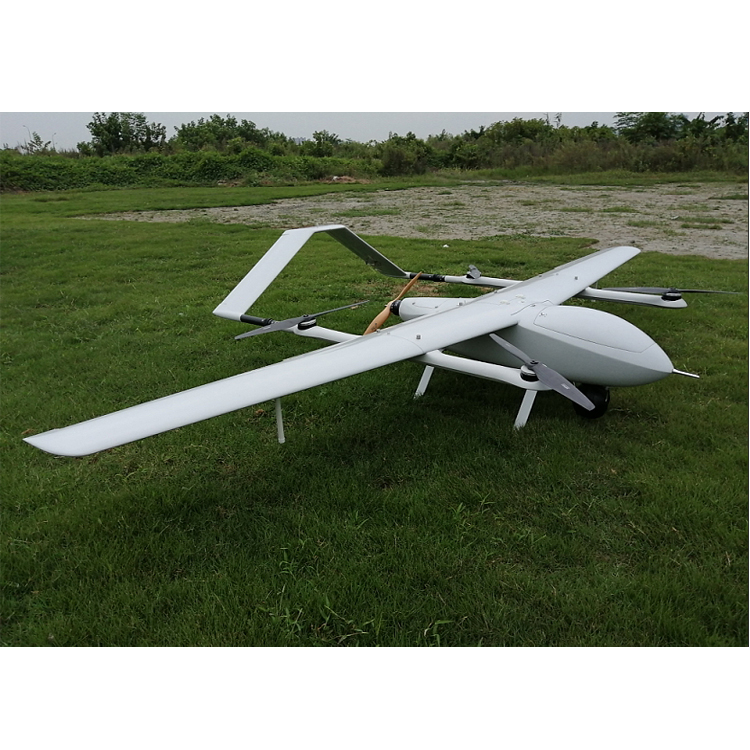

FlyDragon Big shark electric VTOL drone is also a small vertical take-off and landing (VTOL) drone, Big shark is He is an upgraded version of baby Shark, it's made of composite materials, The space is bigger than baby shark, so big shark have more space to hold electrics and other devices. it's good for large area mapping and surveying use it wherever possible, since it typically significantly increases takeoff weight, range or payload compared to pure VTOL.

MTOW	20.3kg
Weight w/o battery and payload	9.69kg

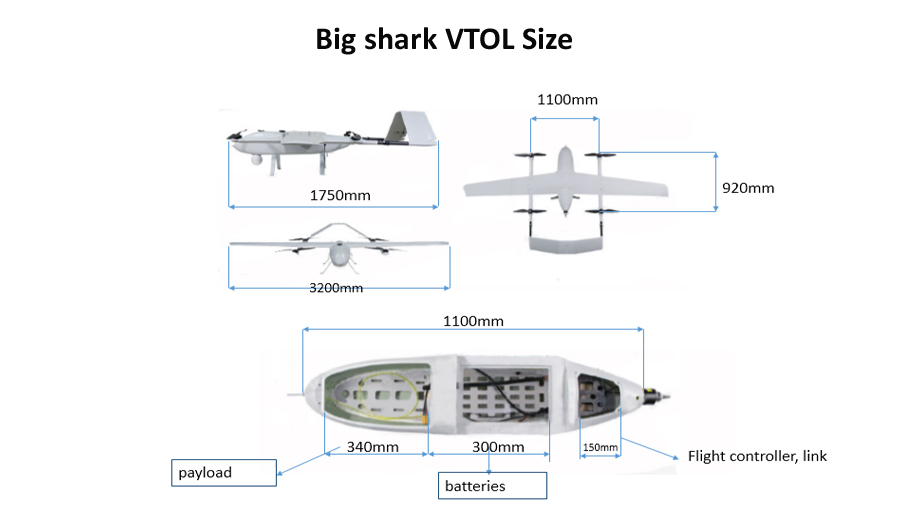

Wingspan	3200 mm
Length	1,200 mm
Height	500 mm
Frame weight	3.2kg
Max payload(battery included)	10.61kg
Battery weight	7.53kg
Endurance(20.3kg take-off weight)	2.5 hours
Cruise speed	78-90km/h
Max speed	100km/h
Stall speed	57.6km/h

NOTE： THE PRICE IS JUST KIT, WITHOUT ANY ELECTRONIC, AND THE PACKING IS IN WOODEN CASE NOT IN ALUMINUM BOX!
