How To Choose Drone frame

If you want to choose a drone frame, first you should clearly understand the purpose of buying the drone, spraying pesticides? Inspecting? Photography? or deliver goods.

  If you don’t have the ideas, today I recommend 4 drone frame for you

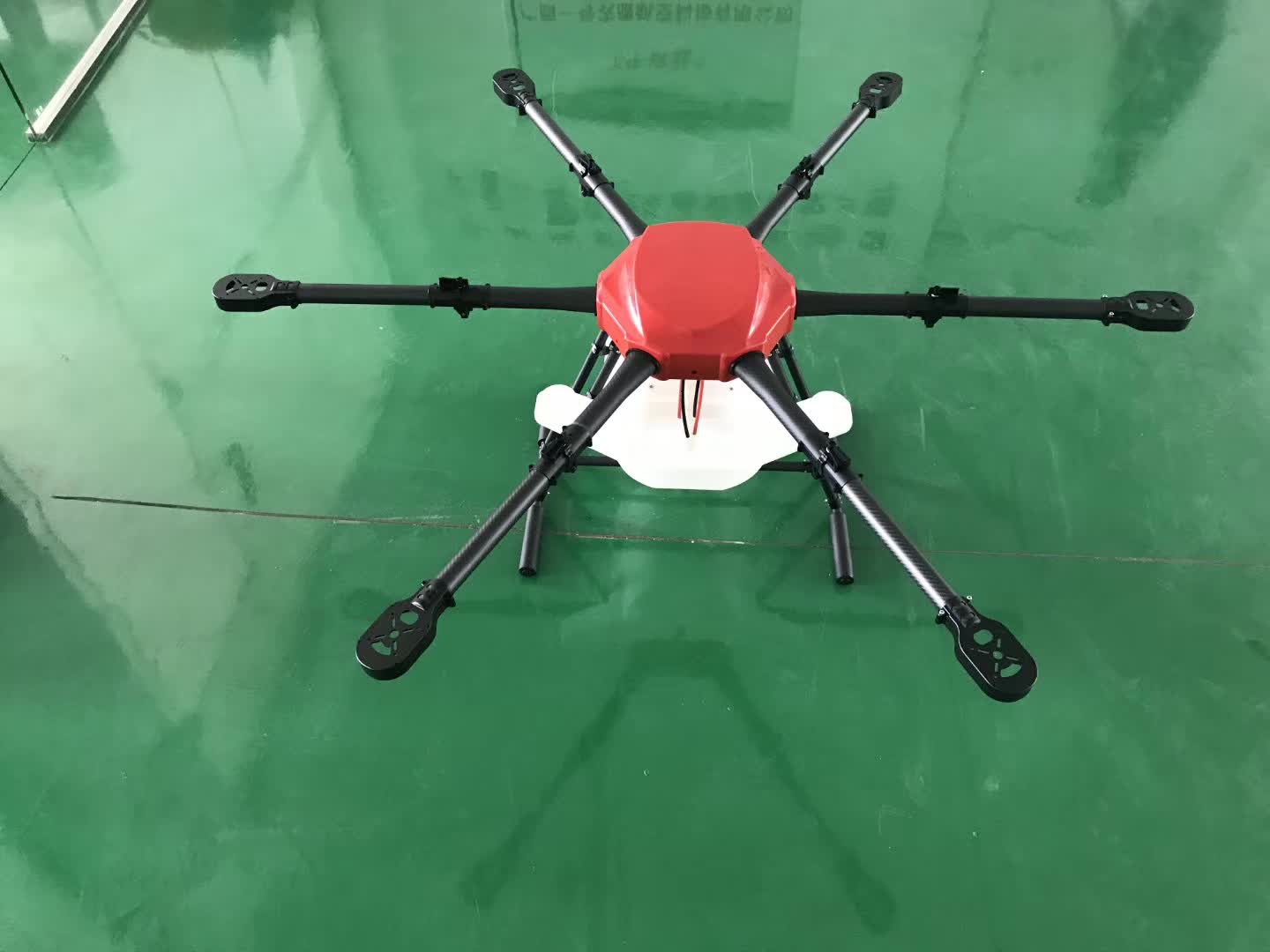

1.  Drone frame for agriculture


Agriculture spraying drone can replace the traditional pesticide sprayer and it's speed is 40times of the traditional sprayer. It will save 90% water and 30%-40% pesticide. Small droplet diameter make the pesticide more well-distribute and improve the effect. At the same time, it will make the people faraway from the pesticide and reduce the pesticide remain of the crop.


Total Weight:15.5 kg (without battery)


Standard Takeoff Weight:37.5 kg


Max Takeoff Weight:37.5 kg (at sea level)


Max Thrust-Weight Ratio:1.41 (with 37.5 kg takeoff weight)


Power BatteryBattery: (6S 22000mAh 25C 6S1P )


Max Power Consumption:15774 W


Hovering Time*

21 min(@22000 mAh & 16 kg takeoff weight)

10 min(@22000 mAh & 37.5 kg takeoff weight)

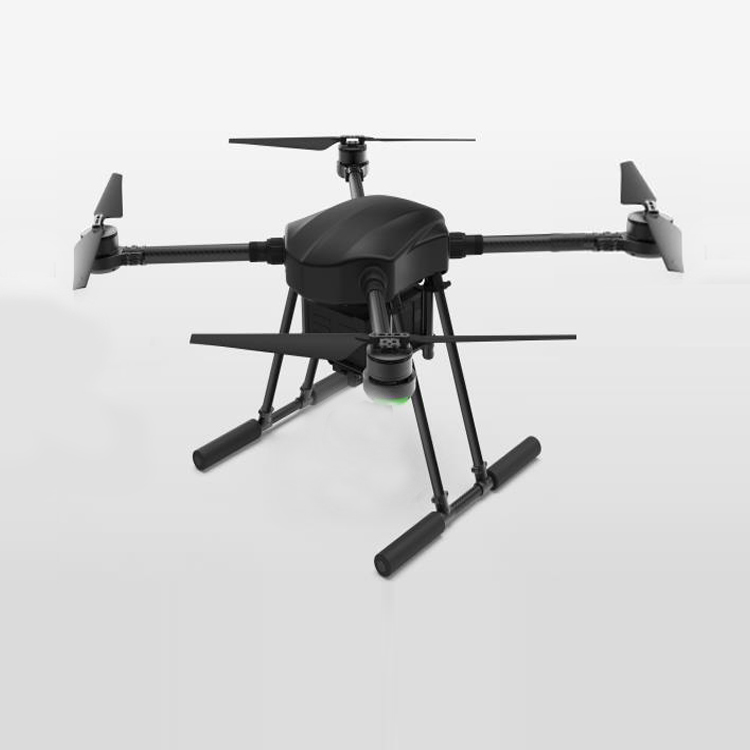

2.  Drone frame for industrial


Industrial Drone frame Flight platform for customize industrial Specially designed  for industry applications.  with modular design concept, the main components can  be quickly disassembled and assembled, flexible and  multi-purpose, convenient for customized demand expansion, and the whole frame adopts dumb black coating, which shows  processional stability.used for aerial filming, surveying, mapping etc.


Parameter:

FLYD-100

Wheelbase: 1000MM?? Height: 500MM

Frame Weight: 3.5KGS

Supply voltage: 6S

Motor: U8 KV150

Propeller: 28 inch propeller

Battery: 1 units 16000 mAh 22.2V?

Payload: 1-5KGS

Endurance: 50 minutes(without payload)

3.   Drone frame for deliver goods

simpleplanes vtol UAV platform is an electric long-haul composite wing vertical take-off and landing drone independently developed by our company. The vertical take-off and landing mode greatly enhances the environmental adaptability of the drone platform. The man-machine platform can operate smoothly in complex terrain and densely populated areas such as mountains, hills and jungles, greatly expanding the scope of application of drones, and is an ideal choice for deliver goods

Specification


Body length: 2.5m

Wingspan: 3.8m

Maximum takeoff weight: 50kg

Maximum payload: 15kg

Life time: 2h@15kg payload, 4h@10kg payload

Flying radius: 200-400km (depending on the amount of oil)

Maximum control distance: Remote control (manual control): 1km

Ground station control (depending on the distance of the digital transmission): 30km standard

Maximum speed: 130km/h

Cruising speed: 100-120km/h

Maximum oil load: 12L

Lift limit: 4000m

Maximum wind resistance: 12m/s (6 wind)

Use environment: -10 °C +45 °C; anti-light rain

Climb/lower power battery: 4*14000mAh-6S lithium battery

Take-off and landing mode: vertical takeoff and landing

       Shipping size: 1.6*0.7*0.6m (length * width * height)

More drone frame style please visit droneassemble.com
