Hybrid generator system will change UAV industry

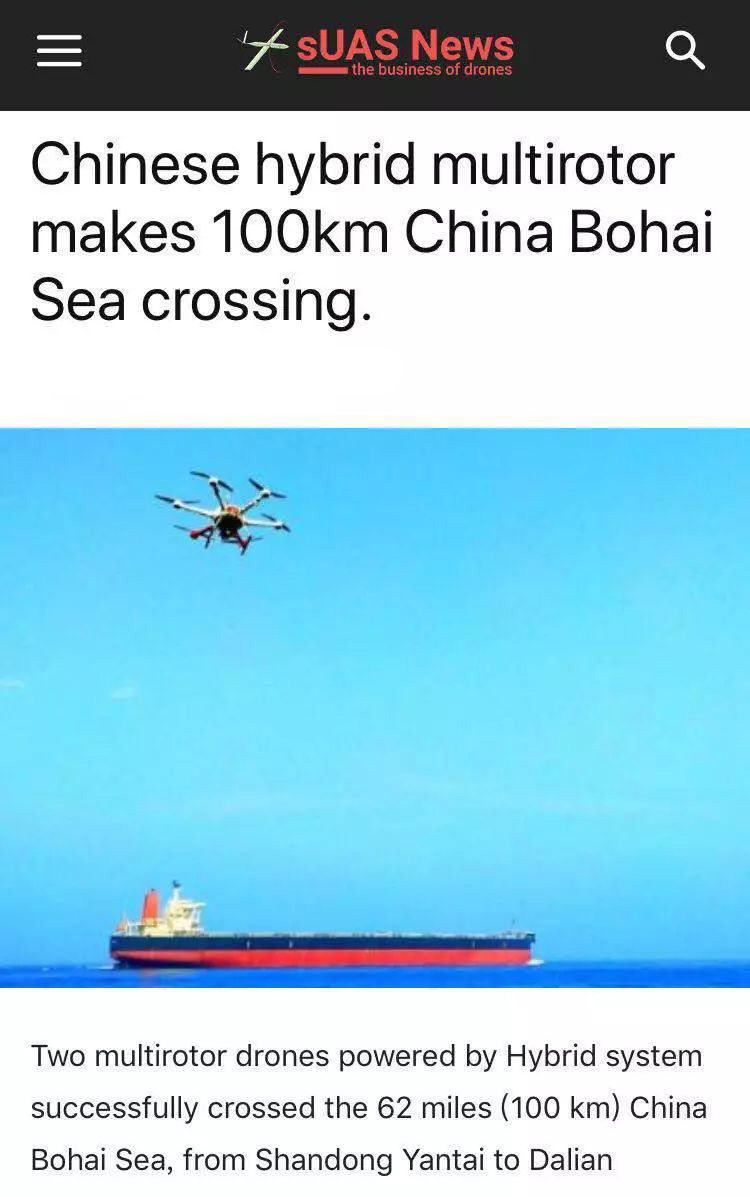

On September 9, 2019, two multi-rotor drones equipped with a hybrid power system successfully flew over the Bohai Sea, officially opening the era of Chinese drones using hybrid power system.

FlyDragon has three hybrid generator systems

1.2400W Hybrid generator power system

Specifications:

Weight: 4.5kg
Size: 201*258*161mm (LxWxH)
Applicable models: Multirotors/VTOL Fixed Wing
Max take-off weight: 18kg
Power voltage: 12S
Fuel consumption: 600g/kW*h (Hovering 1.5L/h)
Working Temperature: -20℃-40℃
Theoretical ceiling (Altitude): 1000m
Petrol: 95# or above (petrol+2T lubricant two-stroke lubricants that meet JASO FC/FDIOS-L-EGD standards)

2.3600W Hybrid generator power system

Specifications:

Weight: 5.7kg
Power: 2900 Watt continuous power/3600 Watt Max.
Size: 280x260x240mm (LxWxH)
Applicable models: Multirotors/VTOL Fixed Wing
Max take-off weight: 31kg
Rated voltage :MIX 44.4V MAX 50V 12S
Fuel consumption: 650g/kW*h (Hovering 4L/h)
Working Temperature: -20℃-40℃
Theoretical ceiling (Altitude): 1000m
Petrol: 95# or above (petrol+2T lubricant two-stroke lubricants that meet JASO FC/FDIOS-L-EGD standards)

3.6000W Hybrid generator power system

specification

Size: 270*310*252mm (LxWxH)
Rated voltage :MIX 44.4V MAX 50V 12S
Maximum power: 6000W
Weight: 7.2 kg
Fuel tank capacity: 3.5L / 2L
Fuel consumption : 5L/H
Suggest rotor: EA118 KV95 & 38 inch propeller for Quadrotor
Max payload: 49KGS for spraying drone, 39KGS for industrial drone.
Fuel ratio: 25:1 (95# gasoline, FD grade 2T oil)
Working temperature: -20~45 degrees Celsius
Startup mode: one-button self-starting
Cooling method: forced air cooling

Hybrid generator system advantages:


1. The flight time of the drone has been greatly improved, and the maximum life time can reach 7 hours;

2. It has the characteristics of flexible operation and simple structure of the electric drone, and strong reliability;

3. Work temperature -20 degrees c - 40 degrees c

4. It can bring more sufficient power to airborne equipment;

5. Frequent replacement of the drone battery is no longer necessary, which greatly reduces the use cost and maintenance cost of the drone.

Flydragon hybrid generators will change fields such as power line inspection, pipeline inspection, geographic surveying, search assistance, aerial photography programs, news gathering, pharmaceutical spraying, agricultural condition monitoring, logistics and transportation, thrown materials, border inspection
