The Dividend Era of Agricultural Drones Has Come

16L hybrid agriculture drone

One of the most dazzling inventions in the 21st century, agricultural drones are well-deserved. althrough agricultural drone price is not cheap, but it not only increase the operation efficiency by 50 times, also reduce the operation cost by 50%, agriculture market reported that the market for agricultural drones and services will reach $100 billion in the next five years, The Dividend Era of Agricultural Drones Has Co

Countries around the world are vigorously promoting drones

India: The Ministry of Agriculture is vigorously promoting drones to fertilize rice and spray biological pesticides. The emergence of agricultural drones has greatly reduced the workload of farmers. The relevant departments of the Indian government have also provided unprecedented policy support for this technology. The Ministry of Agriculture will provide subsidies of up to 70% to the agricultural organization FPO, and the Indian air traffic control department will open low-altitude airspace to the reported agricultural provinces. You must know that it was impossible to fly over India when no one was flying over India two years ago.

Cambodia: "Drones are flying over cassava fields to precisely spray herbicides on a pre-set route. In the past, the same amount of work would normally take farm workers over a week to do manually. Now, just one agricultural drone is all that's needed. It can be done within an hour. It can save $8-10 per hectare," said Thi, who owns 20 hectares of land in Varin district, Siem Reap province, Cambodia.

Malaysia: Palm trees are the main agricultural cash crops in Malaysia. The planting area of palm trees accounts for 80% of the country, and palm oil exports account for 56% of the world's total. Affected by the labor force, in 2020, agricultural drones will be used to spray palm trees. . "We work with large farms of more than 5,000 hectares, which are more conducive to our spraying operations. Farmers don't need to buy expensive drone equipment themselves, and they don't need to train their own teams. Just a phone call, we It can provide door-to-door service. It is a win-win for both of us,” said Lee, CEO of Meraque, a high-tech technology company in Malaysia.

Agricultural drones will be the next economic feast. If you also plan to set up your own drone spraying service team or distribute agricultural drones, then I will recommend the following agricultural drones with suitable prices.

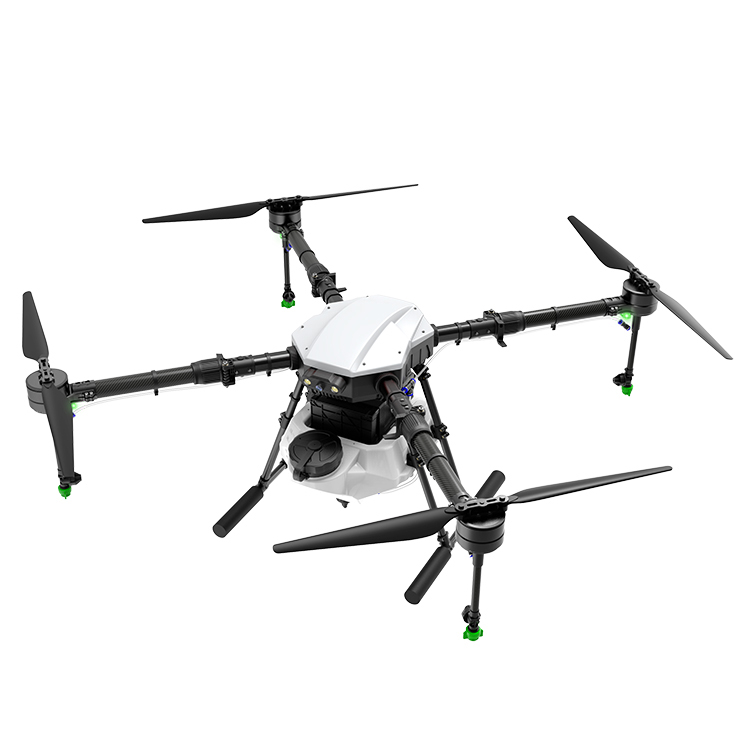

1.FDAD-10L(4X)-W 4 Axis 10L 10KG Capacity uav agriculture Spraying Drone-$4,380

10L agriculture drone priceSpecifications:

wheelbase 1416MM
Unfolded size 1780*1780*567MM
Folded size 700*799*567MM
Tank capacity 10L
Frame weight 6KGS
Frame and spraying weight 6.8KGS
Frame and motor sets weight 12KGS
No-load takeoff weight 17KGS(including 12 1*16000mAh battery 4.7KGS)
Full load Take-off weight 27KGS
Nozzle Ceramic sprinkler head imported from Germany/China
Number os nozzles 4pcs
Flight Speed 3-8 Meter /Sec
Spray width 3-6 Meter /Sec
Max spraying flow 1.5-3 kg/min. (Max. 4kg/min.)
spaying efficiency 1.5-3 Acres/Min.
Water Pump Pressure 0.48mPa
Delivery package size Aluminum Box  860*800*650mm  25kg
Transport volume weight 89kg
The fuselage material Carbon fiber composite
Max flight time (no load) 10-15min
Max flight time (full load) 8-10min
The tank volume 10L
Working temperature work   -15°C~45°C
Signal effective range 5km
Flight Control systems Boying
Dynamic System Hobbywing X8,Pipe: 40mm
Spraying System High Pressure Spray
The battery specification 12S8000mah*1PCS
work power 44.4V(12S)
Charging Time 0.5-1hour
Recharge Cycles 300-500 times
Daily efficiency(6hours) 300-500acres
Storage ambient temperature For less than 3 months: – 20 ° C ~ 45 ° C
For more than 3 months: – 22 ° C ~ 28 ° C
Hover time 15min(take-off weight 16kg)
8min(takeoff weight: 26kg)
Standby time of remote c  8hrs
Function
1. Android ground station, easy to use / PC ground station, full voice broadcast
2. Router Setting support, Fully Auto Flight operation with A,B Point operation.
3. One Button take-off and landing, More safety and time saving.
4. Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery.
5. Liquid Detection, Break Point record setting.
6. Battery Detection, Low Battery return and Record point setting available.
7. Terrain following Radar, Stable Altitude setting
8. Vibration Protection, Lost Contact protective, Tank empty detect
9. Motor Sequance Detection and Direction detection Function.
10. Dual Pump Mode
11. The night vision function
12. Three anti – one lamp

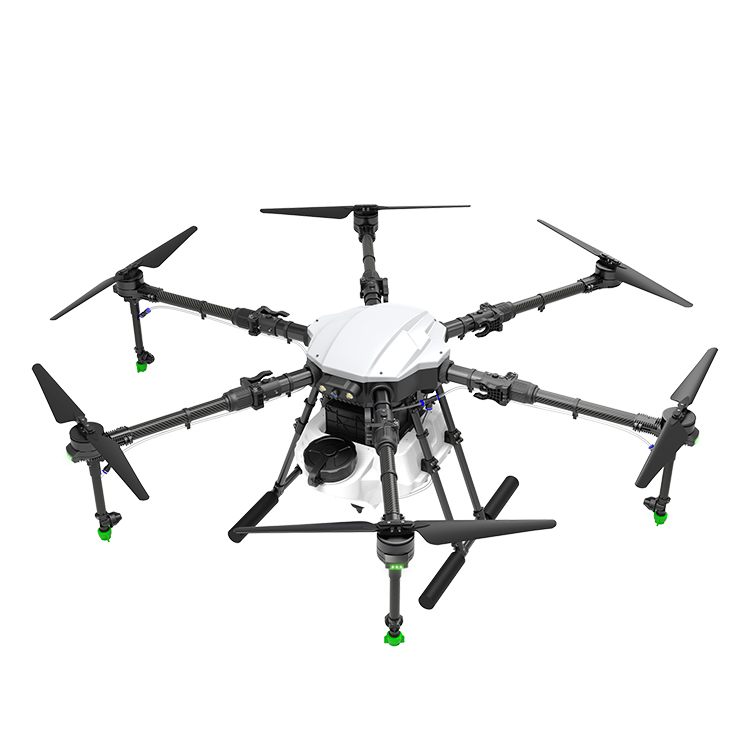

2.FDAD-10L(6X)-W 6 Axis 10L crop dusting drones ready to fly-$4,680.00

16L agriculture drone price

Description
wheelbase 1362MM
Unfolded size 1844*1844*628MM
Folded size 648*671*628MM
Tank capacity 10L
Frame weight 6.5KGS
Frame and spraying weight 7KGS
Frame and motor sets weight 15KGS
No-load takeoff weight 18KGS(including 1*16000mAh battery 4.7KGS)
Full load Take-off weight 28KGS
Nozzle Ceramic sprinkler head imported from Germany/China
Number os nozzles 4pcs
Flight Speed 3-8 Meter /Sec
Spray width 3-6 Meter /Sec
Max spraying flow 1.5-3 kg/min. (Max. 4kg/min.)
spaying efficiency 1.5-3 Acres/Min.
Water Pump Pressure 0.48mPa
Delivery package size Aluminum Box  860*800*650mm  25kg
Transport volume weight 89kg
The fuselage material Carbon fiber composite
Max flight time (no load) 10-15min
Max flight time (full load) 5-8min
The tank volume 10L
Working temperature work   -15°C~45°C
Signal effective range 5km
Flight Control systems Boying
Dynamic System Hobbywing X6,Pipe: 40mm
Spraying System High Pressure Spray
The battery specification 12S 16000mah*1PCS
work power 44.4V(12S)
Charging Time 0.5-1hour
Recharge Cycles 300-500 times
Daily efficiency(6hours) 300-500acres
Storage ambient temperature For less than 3 months: – 20 ° C ~ 45 ° C
For more than 3 months: – 22 ° C ~ 28 ° C
Hover time 15min(take-off weight 18kg)
8min(takeoff weight: 28kg)
Standby time of remote control 8hrs
Function
1. Android ground station, easy to use / PC ground station, full voice broadcast
2. Router Setting support, Fully Auto Flight operation with A,B Point operation.
3. One Button take-off and landing, More safety and time saving.
4. Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery.
5. Liquid Detection, Break Point record setting.
6. Battery Detection, Low Battery return and Record point setting available.
7. Terrain following Radar, Stable Altitude setting
8. Vibration Protection, Lost Contact protective, Tank empty detect
9. Motor Sequance Detection and Direction detection Function.
10. Dual Pump Mode
11. The night vision function
12. Three anti – one lamp
Main feature
1. Crossfolding Method ,The arms of the FDAD-10L(6X) are folded in a staggered way, minisize the folding size, more convenient for transportation.
2. Integrated Fuselage Frame The fuselage frame of the FDAD-10L(6X)Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the FDAD-10L(6X) has good durability and reliability.
3. Quick Release Battery & Tank The water tank of the FDAD-10L(6X)adopts plug-in design, and the battery can be placed vertically in the battery compartment.The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the FDAD-10L(6x) drone. It is convenient to replace the tank and battery.
4. Dustproof and Waterproof The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.
5. Great Expandability The radar, fpv camera, pump and some other parts can install on the drone.

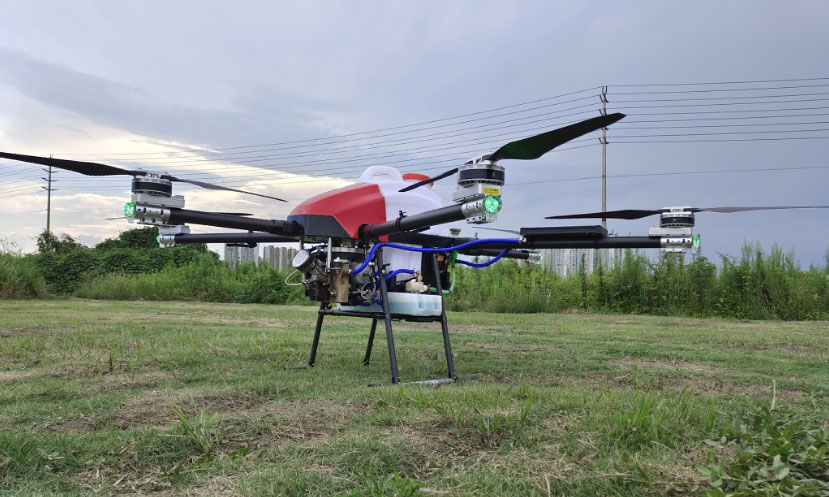

3. FDAD-H616L Hybrid crop spot spraying drone-$13,800

Specification

wheelbase 1630MM
Unfolded size 1800*1800*800MM
Folded size 970*520*800MM
Tank capacity 16L
Frame weight 8.6KGS
Frame and spraying weight 9.2KGS
Frame and motor sets & Hybrid generator weight 14.85KGS
No-load takeoff weight 36KGS(including 1*7S 16000mAh battery 2.5*2=5KGS)
Full load Take-off weight 55KGS
Nozzle Ceramic sprinkler head imported from Germany/China
Number os nozzles 4pcs
Flight Speed 3-8 Meter /Sec
Spray width 3-6 Meter /Sec
Max spraying flow 1.5-3 kg/min. (Max. 4kg/min.)
spaying efficiency 1.5-3 Acres/Min.
Water Pump Pressure 0.48mPa
Delivery package size Aluminum Box  1100*600*850mm  45kg
Transport volume weight 110.2kg
The fuselage material Carbon fiber composite
Max flight time (no load) 45min(with 3L fuel)
Max flight time (full load) Continutes working
The tank volume 16L
Working temperature work   -15°C~45°C
Signal effective range 5km
Flight Control systems Boying
Dynamic System Hobbywing 98, tube: 40mm
Spraying System High Pressure Spray
The battery specification 7S 16000mah*2PCS
work power 51.8V(14S)
Charging Time 0.5-1hour
Recharge Cycles 300-500 times
Daily efficiency(6hours) 300-500acres
Storage ambient temperature For less than 3 months: – 20 ° C ~ 45 ° C
For more than 3 months: – 22 ° C ~ 28 ° C
Hover time No-load flight Time: 45minutes
Full-Load flight time: continue working with fuel added
Standby time of remote control 8hrs
Function
1. Android ground station, easy to use / PC ground station, full voice broadcast
2. Router Setting support, Fully Auto Flight operation with A,B Point operation.
3. One Button take-off and landing, More safety and time saving.
4. Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery.
5. Liquid Detection, Break Point record setting.
6. Battery Detection, Low Battery return and Record point setting available.
7. Terrain following Radar, Stable Altitude setting
8. Vibration Protection, Lost Contact protective, Tank empty detect
9. Motor Sequance Detection and Direction detection Function.
10. Dual Pump Mode
11. The night vision function
12. Three anti – one lamp
Parameter of the Spraying system
Water Pump: 12S brushless water pump
Nozzle: Extension rod Y shape double 1.0 nozzle
Extension rod U shape double 1.0 nozzle
Note: The drone can work with two water pumps or 4 pumps, you can use them according to your requirements. When the 2 water pump works, one water pump controls 4 nozzles, and when the four water pump works, one water pump controls 2 nozzles. Four pumps can support independent spraying in front and back, and the atomization effect is better. Two pumps do not support independent spraying in front and back, which has better cost and other functions are consistent;
Main feature
1. Crossfolding Method ,The arms of the H616L are folded in a staggered way, minisize the folding size, more convenient for transportation.
2. Integrated Fuselage Frame The fuselage frame of the H616L Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the H616L has good durability and reliability.
3. Quick Release Battery & Tank The water tank of the H616L adopts plug-in design, and the battery can be placed vertically in the battery compartment.The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the H616L drone. It is convenient to replace the tank and battery.
4. Dustproof and Waterproof The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.

5. Great Expandability The radar, fpv camera, pump and some other parts can install on the drone.


if you want more detail and price  fo other drone sprayer , please visitwww.dronefromchina.com
