The Cube Orange Standard Set (ADS-B Carrier Board)

The Cube Orange is brand new 2020 version of the most famous and successful open source flight controller around the world. It is an enhanced version of the Cube Black (Pixhawk 2.1). The Cube Orange benefits from numerous improvements which ensure its position of the current most advanced electronics available for remotely controlled vehicles.

it is now possible to choose the voltage provided on PWM outputs (3.3V or 5V) by changing a simple parameter.Obviously, the Cube Orange remains a cutting-edge controller having countless features like a high performance IMU. The Cube Orange has a triple redundant IMU, a heating module and vibration isolation. This makes it perfectly suitable for cold temperatures operations.

Following a partnership between Cube manufacturer and uAvionix, a new carrier board has been developped.

Indeed, a 1090MHz ADS-B receiver from uAvionix (Automatic Dependent Surveillance Broadcast) has been integrated to the new carrier board. Thanks to this, the Cube Orange receives location information from nearby aircraft (airplanes, gliders, helicopters, etc.). All these details can be seen in Mission Planner and includes position, altitude, speed, id, etc.

By setting a few parameters, this ADSB In feature allows to use automatic avoidance of detected aircraft by the drone. ArduPilot firmwares include this groundbreaking functionnality.


Processor: STM32H753VIT6 (32 Bit ARM® Cortex®-M7, 400 MHz, 2 MB flash, 1 MB RAM)


3x Accelerometers: ICM20948 / ICM20649 / ICM20602

3x Gyroscopes: ICM20948 / ICM20649 / ICM20602

1x Compass: ICM20948

2x Barometers: MS5611 (2x)

Main power supply: 4.1 - 5.7 V / 2,5 A

USB power supply: 4.0 - 5.7 V / 250 mA

Accepted power on servo rail: 3.3 V / 5V

Operating temperature: -10°C to +55°C

ADS-B receiver: 1090 MHz

Size (Cube Orange): 38.25 x 38.25 x 22.3 mm

Housing material (Cube Orange): CNC aluminium alloy

Size (ADS-B carrier board): 94.5 x 44.3 x 17.3 mm

Housing material (ADS-B carrier board): ABS molding

Total weight: 75 gr

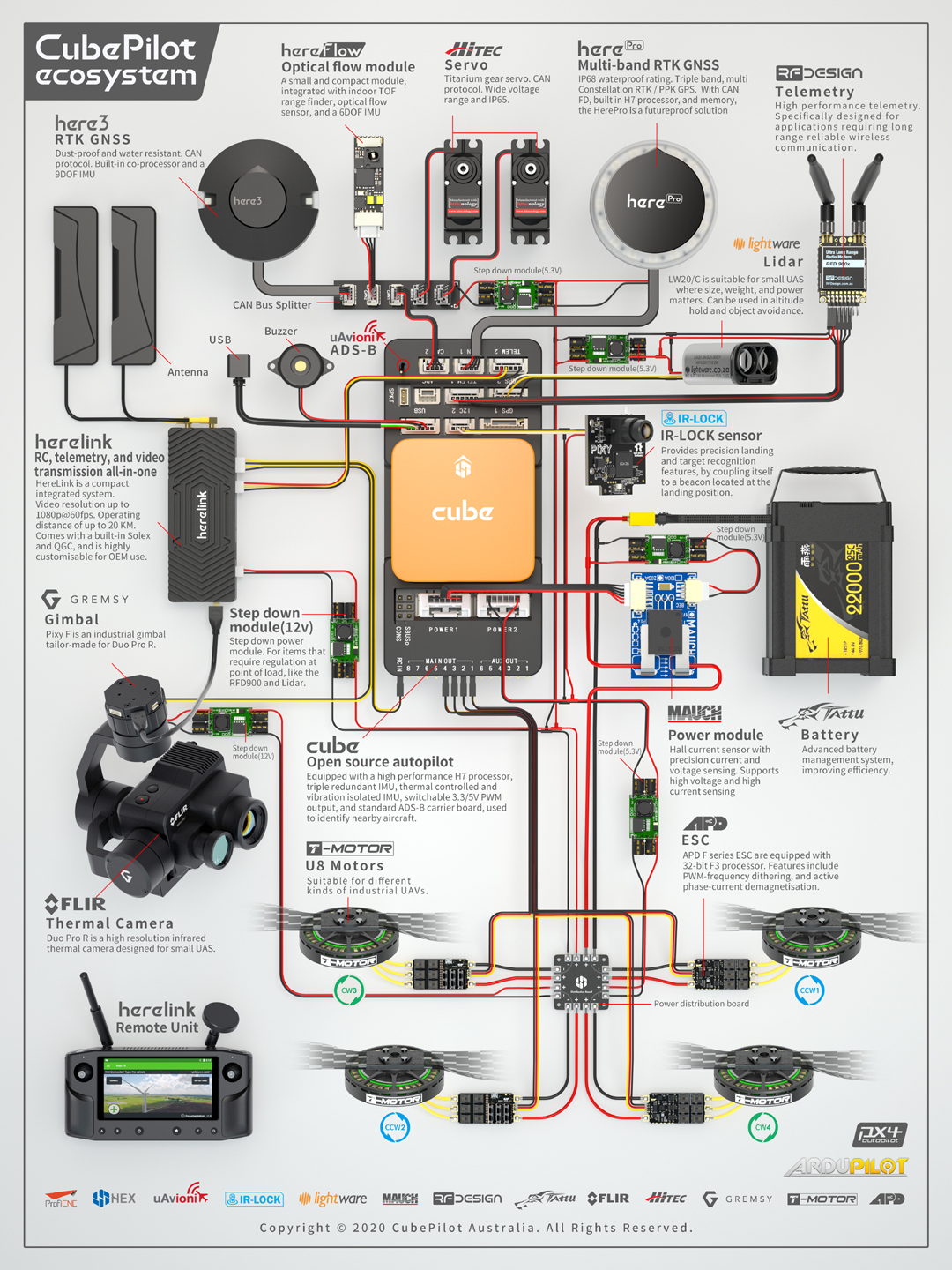

Carrier board connections:

2x USB

5x UART (serial ports)

2x CAN-Bus

1x I2C

1x ADC

1x SPKT (dedicated Spektrum RX)

2x Power (ports)

1x S.BUS® input (input PPM)

1x S.BUS® output

8x PWM ouputs

6x GPIO that can be used as PWM


New: H7 processor
New: ADS-B receiver
Tempered and isolated IMU
Triple redundant IMU
Multiple GPS receivers (GNSS)
Open source developping environment
Suitable for many platforms (multirotors drones, fixed wings, VTOL, helicopters, etc.)
