FDG-100C+ LIDAR scanning system Application for Mapping and Survey

FDG-100C+ is a kind of light compact LiDAR point cloud data acquisition system, integrated Livox new generation laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.

Long Detection Range
The Livox Avia adjusts its detection range according to the intensity of ambient light, while maintaining noise at a low level. The detection range increases to 450m under low-light conditions (such as on a cloudy day, indoors or at night), ensuring distant objects are captured in detail.

Dual-Scanning Mode
The use of multi-line laser and high-speed scanning enable the Livox Avia to achieve a point cloud data rate of up to 240,000 points/s. The high performance device is equipped with both repetitive and non-repetitive scanning modes, to meet the needs of different scenarios.

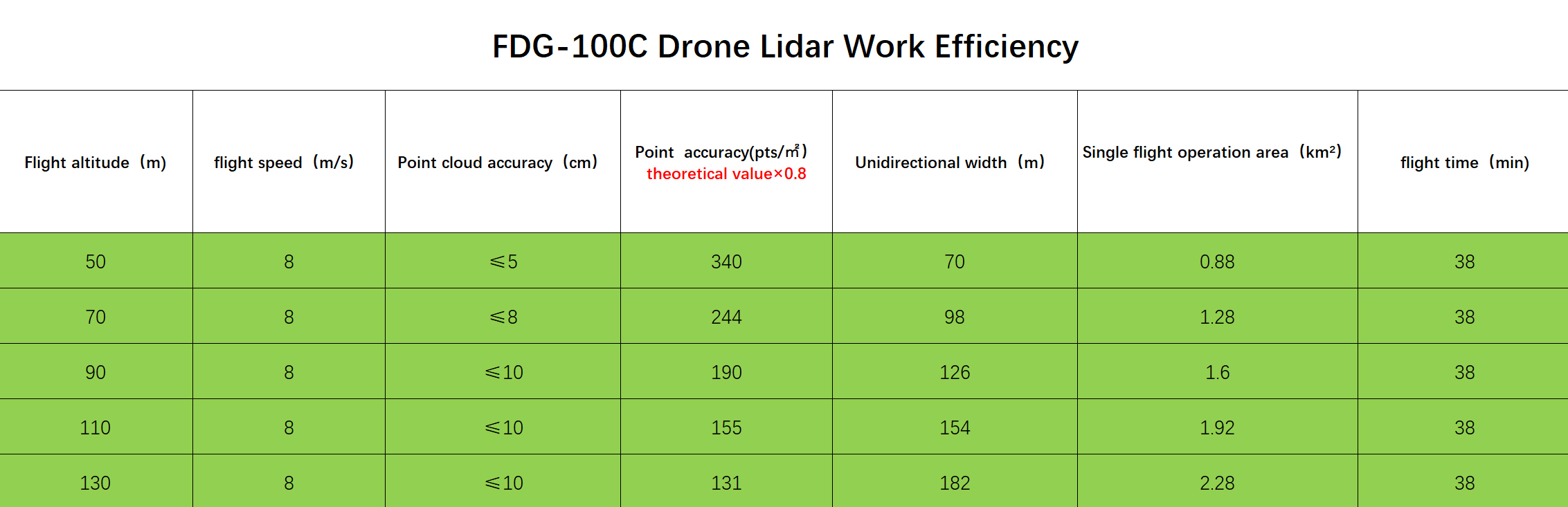

Specification

gAirHawk GS-100C+
Item Name System Parameter

GS-100C+

Parameter

Weight 1022 g
Measuring accuracy Less than 10 cm (110 m AGL)
Power range 12V~16V
Working temperature -20℃~+55℃
Consumption Average 20W
Support Platform GS-800 Multi Rotor, VTOL Fixed Wing
Storage 64 GB storage, maximum support 128GB TF card

Lidar Unit

Laser Model Livox Avia
Measuring Range 190m@10% Reflectivity
Laser class 905nm Class1 (IEC 60825-1:2014)
Laser line number Equivalent to 64-beam
Mix. range 0.3 M
Range Precision 2 cm
data Triple echo, 720,000 Points/Sec
FOV 70° the circular view
POS Unit POS type AGS 302
Update frequency 200HZ
Heading accuracy 0.040°
Pitch accuracy 0.015°
Rolling accuracy 0.015°
Position accuracy 0.02 – 0.05m
GNSS signal type GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b
Pre-processing software POS software Output information: position, speed, attitude
Point cloud software Output point cloud data format: LAS format, custom TXT format
Built-in Camera FOV 83 Degree
Effective Pixel 26 Mega Pixel
Trigger event Distance or Time trigger
